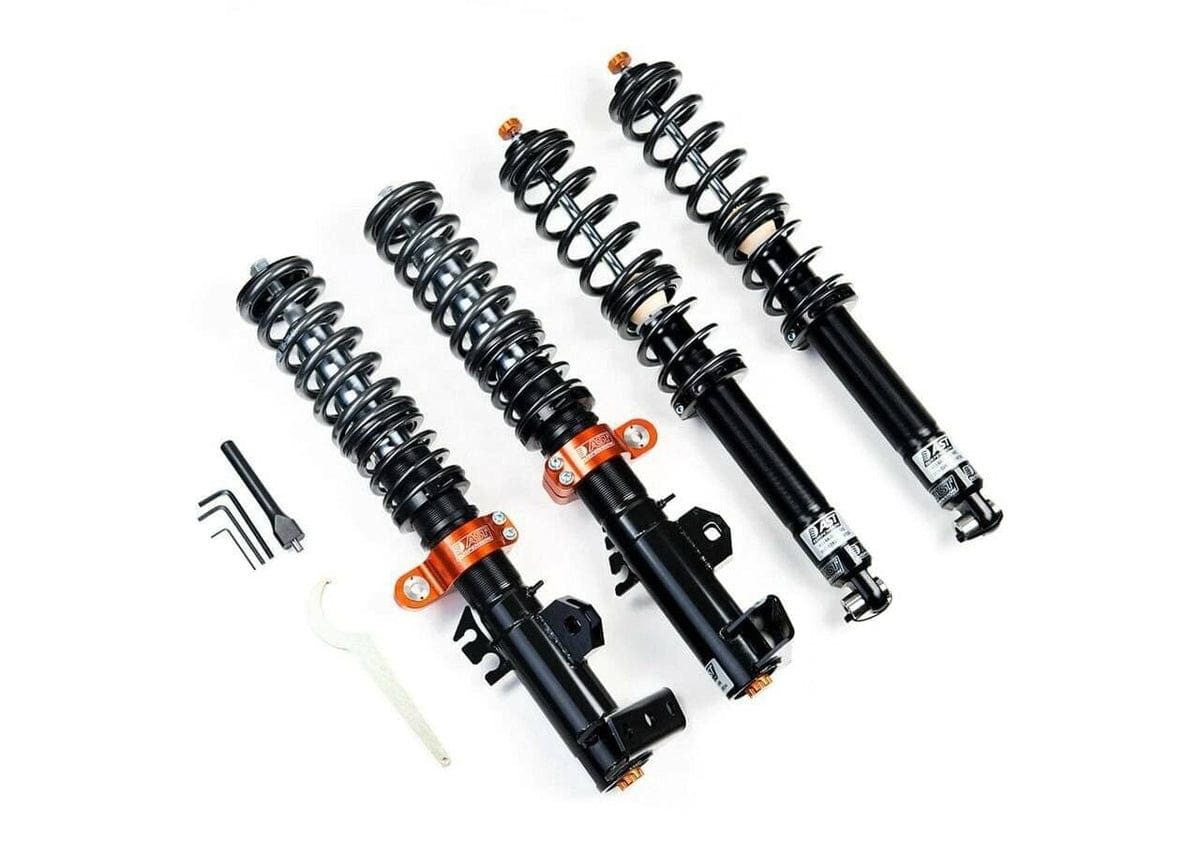

AST Suspension 5100 Series Coilovers (Excludes Front/Rear Top Mounts) (True Coilover) - 2009-2011 Ford Focus RS 2.5 (2nd Gen)

Name: AST Suspension 5100 Series Coilovers (Excludes Front/Rear Top Mounts) (True Coilover) - 2009-2011 Ford Focus RS 2.5 (2nd Gen)
Brand: AST Suspension
Price: 3084.32 USD
Availability: InStock

$3,084.32

Out of Stock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Vehicle Fitment

2009 Ford Focus RS 2.5 (2nd Gen)
2010 Ford Focus RS 2.5 (2nd Gen)
2011 Ford Focus RS 2.5 (2nd Gen)

Specifications

Part Number: ACU-F1104S
Product: AST 5100 Series
Adjustment: 1 Way
System: Coil Over
Product Note: True Coilover
Front/Rear Ratio: Front = 60% / Rear = 40%
Strut/Shock Type: Front: Clamp McPherson strut / Rear: Eye 2 pin strut
Model Years: 2009-2011
Make: Ford
Model: Focus
Chassis: 2nd Gen
Spring Kit: Included
Top Mounts: Front / Rear Optional (If Available)
Optional 1 Front Top Mounts: TMA-F03-A1-20F - Camber adjustable
Optional 2 Front Top Mounts: Not Available
Optional Rear Top Mounts: Not Available
Adjustable Front Droplinks Available? No
Adjustable Front Droplinks Required? No
Adjustable Rear Droplinks Available? No
Adjustable Rear Droplinks Required? No
DDP Pistons Included? No
DDP Pistons Available? Yes
DLC Coated Shafts Included? No
DLC Coated Shafts Available? Yes
QDC Included? No
TUV Approved?
Comments: Works with OE top mounts.

The 5100 Series shock absorbers for the 2009-2011 Ford Focus RS 2.5 (2nd Gen) utilize inverted / upside down technology. The inverted design is race proven technology and produces an extremely strong damper, providing better suspension geometry under heavy lateral and braking loads as seen in a road and track environment.

The 5100 Series shock absorbers give your car a better performance than the standard twin tube design. With the 5100 Series suspension you can adjust rebound with one knob. The adjust platform allows you to adjust the ride height of your car. AST suspension shock bodies are specially designed to keep maximum stroke, even with a lower ride height.

How a Monotube design works?

Monotube design is essential for performance. The oil and nitrogen are separated by a floating piston, and allows the use of a larger piston, increasing the damper performance and sensitivity felt by the driver, all this added together produces more grip, gives more control and driver feedback from your vehicle.

What is a rebound adjustment?

Rebound controls the rate of extension of your shock absorber. By changing the rebound you can directly change the characteristics of the vehicle.

Features

Floating piston design with high pressure nitrogen means no cavitation around the piston.
14mm diameter internal shaft.
44.5 mm diameter shaft struts, inverted.
Steel cylinder body shocks, inverted.
High end, track ready suspension.
Rebound adjustable ('Singles').
Low friction seal.
Adjuster knobs permanently mounted on the dampers.
Designed to use OEM top mounts.
Rubber bushings for 'eye' shock mounts.
Includes springs.
Rebuildable.
Optional spherical top mounts.
Optional DLC (diamond like carbon) coated shafts.
Optional DDP (double digressive piston).

Double Digressive Pistons are recommended for use on the non-driven wheels.
4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
RWD vehicles: DD pistons for both front axle struts/shocks.

Optional custom valving.
