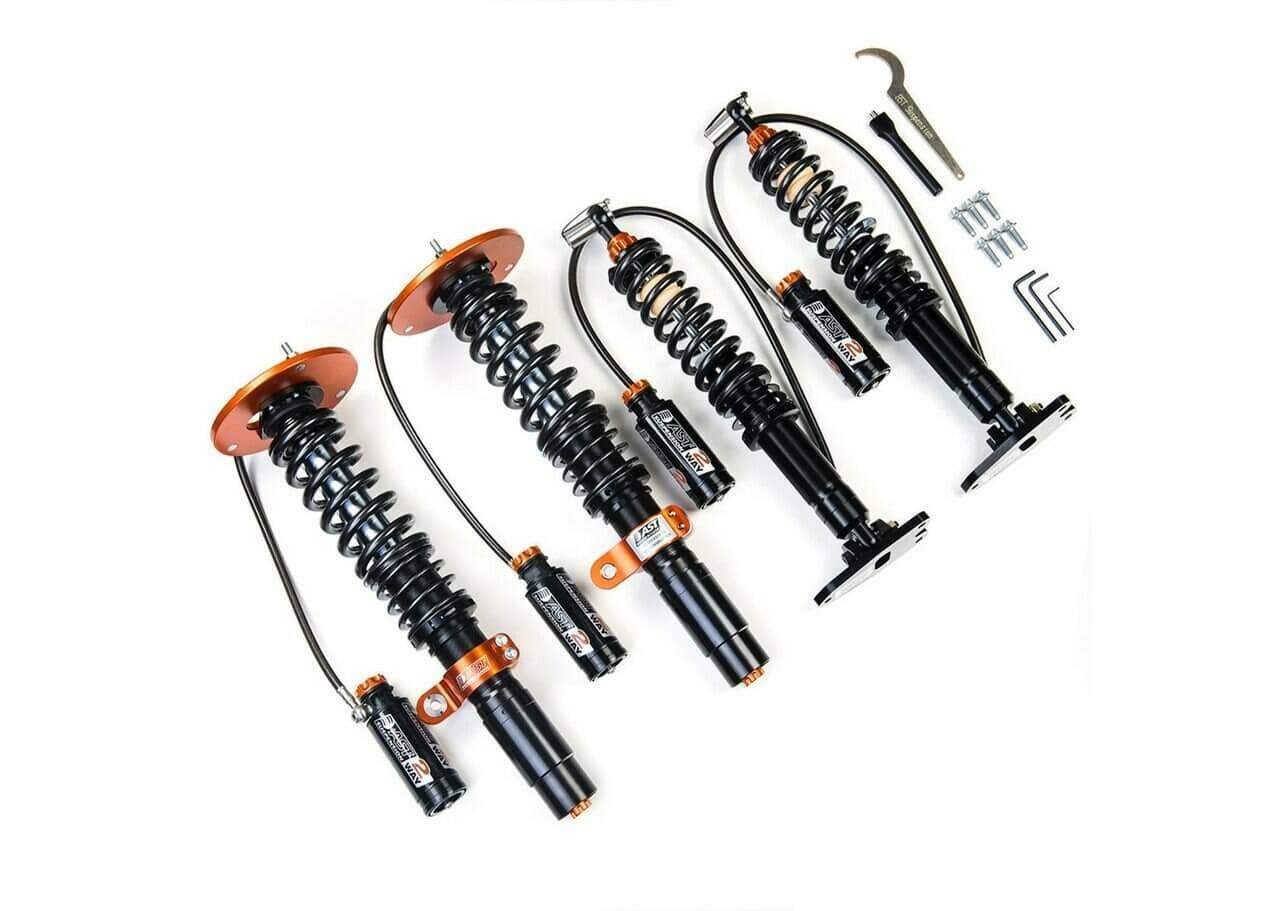

AST Suspension 5200 Series Coilovers - 2000-2002 BMW Z3 M 2.2i Coupe (E36/7 E36/8)

Name: AST Suspension 5200 Series Coilovers - 2000-2002 BMW Z3 M 2.2i Coupe (E36/7 E36/8)
Brand: AST Suspension
Price: 5880.0 USD
Availability: InStock

$5,880.00

Out of Stock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Handling Time
Important Notes

Description

The 5200 Series for the 2000-2002 BMW Z3 M 2.2i Coupe (E36/7 E36/8) are 2-way adjustable shock absorbers which are based upon competition 3-way adjustable shock absorbers. The 5200 shock absorbers are adjustable in compression and rebound.

The design of the compression adjuster is an evolution of the compression adjuster we provided for the American Grand-Am series for the last few years. The 5200 shock absorbers were designed to achieve a quick and easy set up, allowing separate adjustment of compression and rebound.

The 5200 Series AST uses an external canister. Throughout testing and competitions, the 5200 has been praised for its performance and capabilities, surpassing other major, more expensive brands and setting a new standard of 2 way damper. Its no surprise that the 5200 is fast becoming a favorite damper amongst race teams and track day enthusiasts world wide.

Features

High end, track ready suspension that is totally streetable.
Fully upgradeable to 5300 spec.
Rebound and Compression Adjustable (Doubles), with a remote reservoir.
Remote reservoirs allow additional travel and heat dissipation.
44.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
Aluminum cylinder, threaded body shocks, factory mounting style.
New low friction seal on all AST dampers.
Spherical lower eye shock mounts.
Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
Spherical upper shock mount assemblies.
Synthetic hydraulic fluid.
Optional DLC (diamond like carbon) coated shafts.
Optional DDP (double digressive piston).

Double Digressive Pistons are recommended for use on the non-driven wheels.
4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
RWD vehicles: DD pistons for both front axle struts/shocks.

Fully service and rebuildable.
Revalvable for specific characteristics.

Specifications

Part Number: RIV-B1201S
Product: AST 5200 Series
Adjustment: 2 Way
System: Coil Over
Front/Rear Ratio: Front = 60% / Rear = 40%
Strut/Shock Type: Front: McPherson strut with bracket / Rear: Eye 2 pin strut
Model Years: 2000-2002
Make: BMW
Model: Z3 M
Chassis: E36/7 E36/8
Spring Kit: Included
Front Top Mounts: Included
Rear Top Mounts: Included
Adjustable Front Droplinks Available? No
Adjustable Front Droplinks Required? No
Adjustable Rear Droplinks Available? No
Adjustable Rear Droplinks Required? No
DDP Pistons Included? No
DDP Pistons Available? Yes
DLC Coated Shafts Included? No
DLC Coated Shafts Available? Yes
QDC Included? No
TUV Approved?
Comments: -

Vehicle Fitment

2000 BMW Z3 M 2.2i Coupe (E36/7 E36/8)
2001 BMW Z3 M 2.2i Coupe (E36/7 E36/8)
2002 BMW Z3 M 2.2i Coupe (E36/7 E36/8)

Handling Time

All handling times are estimates provided by the manufacturer.

Product Status	Estimated Handling Time
In Stock	1 business day
Out of Stock	4-6 weeks
Custom-Builds/Special Order	4-6 weeks

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.
