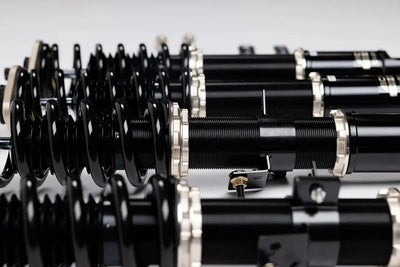

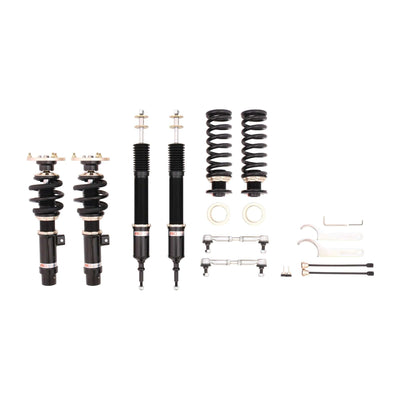

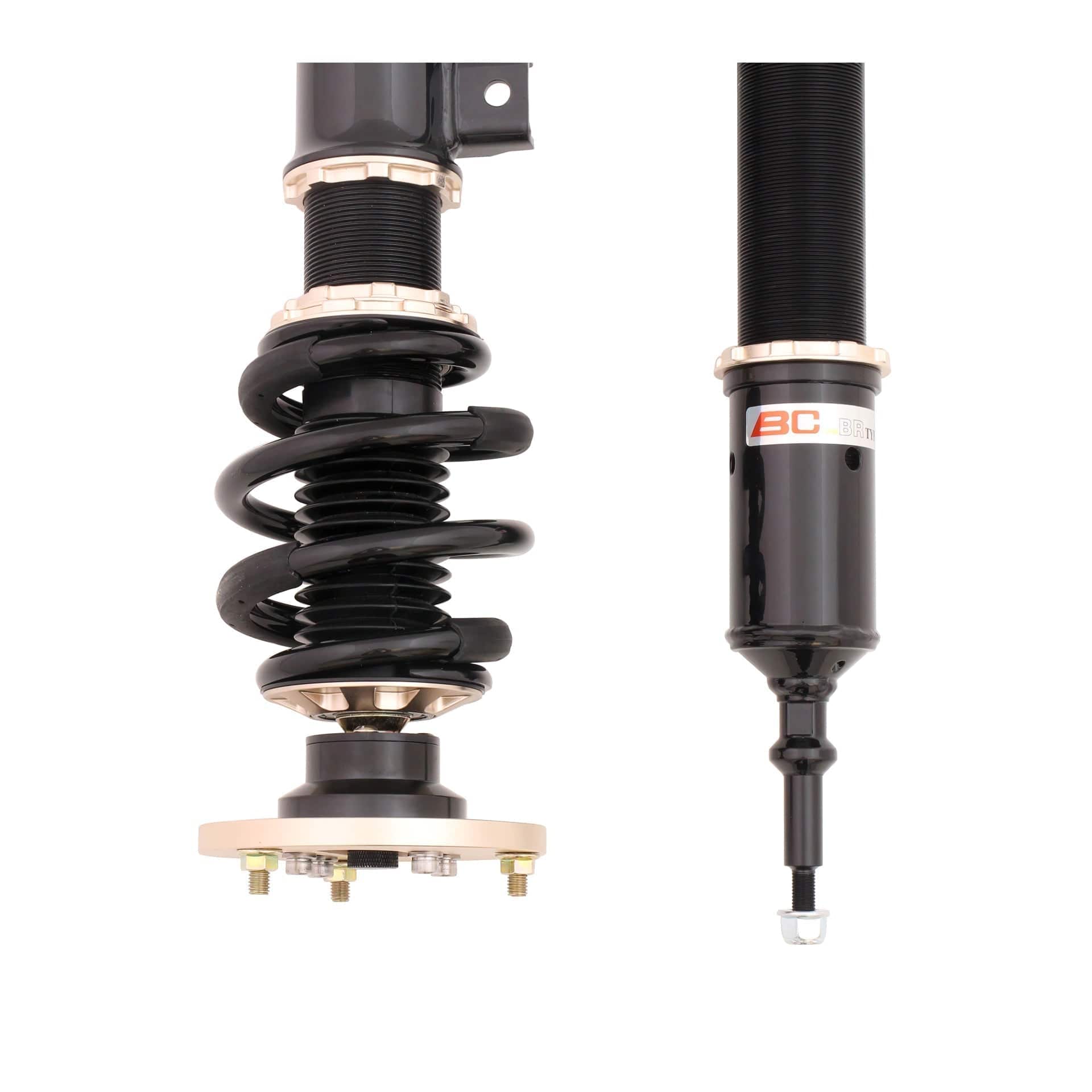

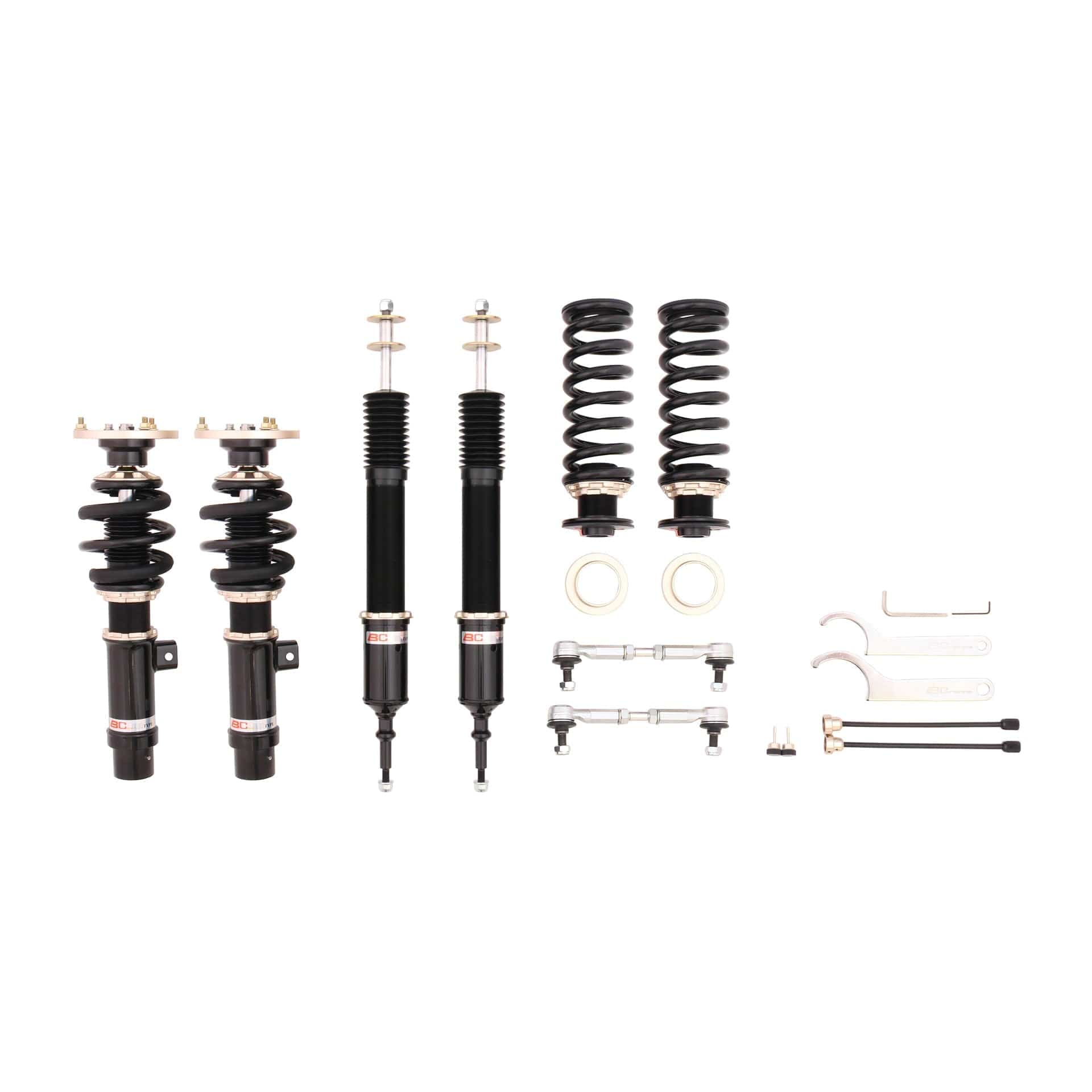

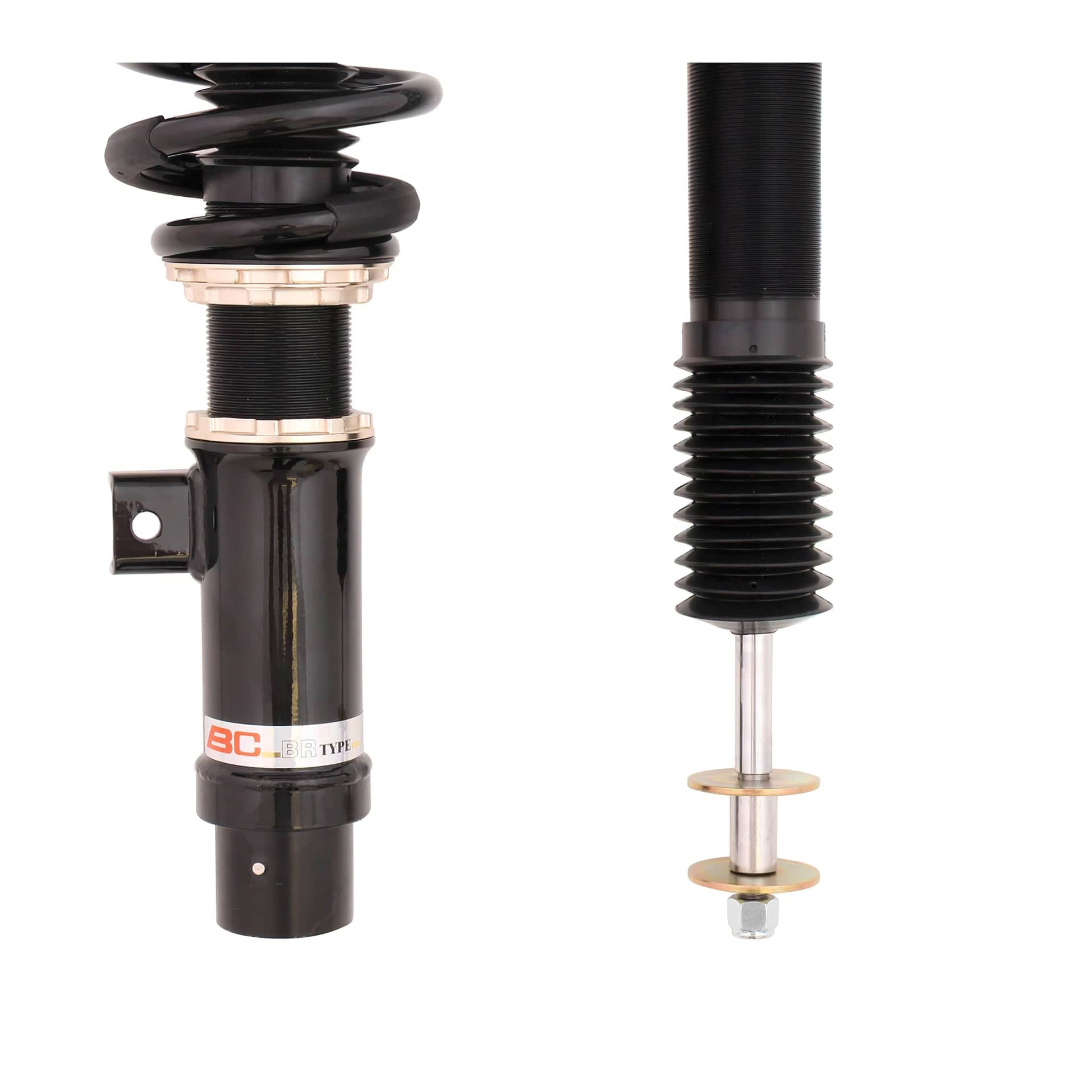

BC Racing HM Series Coilovers for 2006-2013 BMW 3 Series (E92) I-18-HM
BC Racing HM Series Coilovers for 2006-2013 BMW 3 Series (E92) I-18-HM

*Product images may not represent the actual SKU.

BC Racing

SKU: I-03-HM

BC Racing HM Series Coilovers for 2006-2013 BMW 3 Series Coupe RWD (E92)

$2,535.00 $2,750.00 On Sale
Built to Order
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Check if this fits your vehicle

Select a Vehicle
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Fits your vehicle

Change Vehicle
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Does not fit your vehicle

Change Vehicle

Authorized Retailer
100% Authorized Retailer.
Free Shipping
Orders $250+ ship for free.*
Best Price Guarantee
Lowest price on all products.
0% APR Financing
Buy now, pay later.
Vehicle Fitment
  • 2006 BMW 3 Series RWD (E90)
  • 2007 BMW 3 Series RWD (E90)
  • 2008 BMW 3 Series RWD (E90)
  • 2009 BMW 3 Series RWD (E90)
  • 2010 BMW 3 Series RWD (E90)
  • 2011 BMW 3 Series RWD (E90)
  • 2012 BMW 3 Series RWD (E90)
  • 2013 BMW 3 Series RWD (E90)
Specifications
Part Number I-03-HM
Part Name HM Series Coilovers
Vehicle 2006-2013 BMW 3 Series Coupe RWD
Chassis Code E92
Front Springs (kg/mm) 62-170-5.5kg-S
Rear Springs (kg/mm) 62-230-9kg
Front Swift Springs (kg/mm) 62-152-X
Rear Swift Springs (kg/mm) 62-228-X
Front Camber Plates Included
Rear Camber Plates Not Included
Note 1 Pillowball Rear Top Mounts are not available

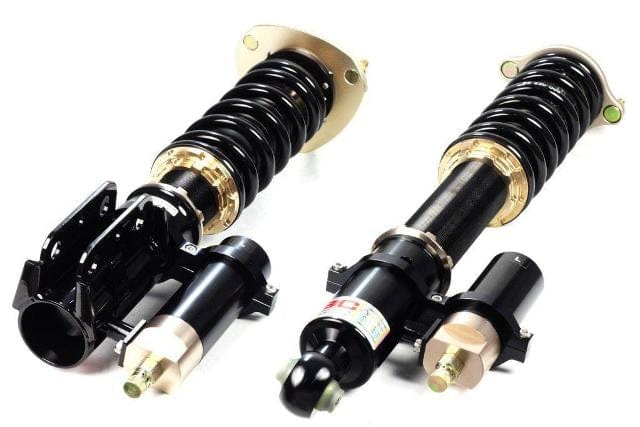

BC Racing HM Series Coilovers for the 2006-2013 BMW 3 Series Coupe RWD (E92) get its great qualities from a combination of two previous BC Racing Coilover Systems - the RM Series and ER Series. The HM Series uses an inverted mono-tube damper, just like the RM Series, but adds the independent compression and rebound adjustment of the ER Series. The external reservoirs house the secondary damping piston, and allow for a higher oil capacity with the added benefit of increased thermal dissipation.

For vehicles with front and rear McPherson struts, the HM Series comes standard with an inverted mono-tube damper. The damper has a steel braided line exiting the top of the damper leading to the external reservoirs that can be remotely mounted on the chassis for easy adjustment.

Vehicles with a Double A-Arm suspension come with upright dampers. These dampers have steel braided lines or solid stems that exit the damper at the bottom and lead to the external reservoir that can be mounted under the chassis or on the shock body itself.

Not all vehicles allow for inverted front and rear dampers. In such cases, an upright mono-tube damper will be supplied. The braided line/hard stem for the external reservoir exits the base of the damper when not inverted.

BC Racing HM Series Coilovers are not available in Extreme Low.

Features

  • Highly customizable
  • Swift Springs come standard on HM Series Coilovers
  • Inverted mono-tube damper
  • Linear twin-piston design
  • Height adjustment independent of spring compression
  • 30-clicks of compression adjustment via the external reservoirs
  • 30-clicks of rebound adjustment from the bottom of the damper
  • Front and rear camber plates standard on all applicable kits
  • Front and rear pillowball standard when camber plates do not apply
  • Custom spring rates available
  • Custom valved to match the drivers requested spring rates
  • 2 year warranty against manufacturing defects
  • Fully rebuildable with replacement parts
