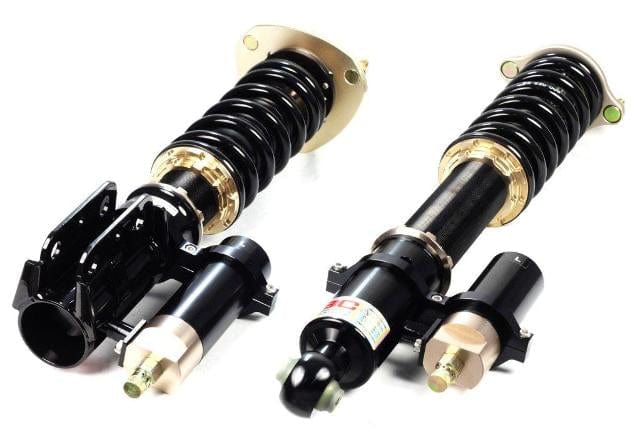

BC Racing HM Series Coilovers for 2012-2015 Honda Civic (FB6/FG4)

Name: BC Racing HM Series Coilovers for 2012-2015 Honda Civic (FB6/FG4)
Brand: BC Racing
Price: 2535.0 USD
Availability: InStock

$2,535.00 ~~$2,750.00~~ On Sale

Built to Order

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description

BC Racing HM Series Coilovers for the 2012-2015 Honda Civic (FB6/FG4) get its great qualities from a combination of two previous BC Racing Coilover Systems - the RM Series and ER Series. The HM Series uses an inverted mono-tube damper, just like the RM Series, but adds the independent compression and rebound adjustment of the ER Series. The external reservoirs house the secondary damping piston, and allow for a higher oil capacity with the added benefit of increased thermal dissipation.

For vehicles with front and rear McPherson struts, the HM Series comes standard with an inverted mono-tube damper. The damper has a steel braided line exiting the top of the damper leading to the external reservoirs that can be remotely mounted on the chassis for easy adjustment.

Vehicles with a Double A-Arm suspension come with upright dampers. These dampers have steel braided lines or solid stems that exit the damper at the bottom and lead to the external reservoir that can be mounted under the chassis or on the shock body itself.

Not all vehicles allow for inverted front and rear dampers. In such cases, an upright mono-tube damper will be supplied. The braided line/hard stem for the external reservoir exits the base of the damper when not inverted.

For Subaru's and other McPherson suspension vehicles that are heavily tracked, the BC Racing HM Series Coilover System is definitely worth checking out!

Features

Highly customizable
Swift Springs come standard on HM Series Coilovers
Inverted mono-tube damper
Linear twin-piston design
Height adjustment independent of spring compression
30-clicks of compression adjustment via the external reservoirs
30-clicks of rebound adjustment from the bottom of the damper
Front and rear camber plates standard on all applicable kits
Front and rear pillowball standard when camber plates do not apply
Custom spring rates available
Custom valved to match the drivers requested spring rates
2 year warranty against manufacturing defects
Fully rebuildable with replacement parts

Specifications

Part Number	A-58-HM
Part Name	HM Series Coilovers
Vehicle	2012-2015 Honda Civic
Chassis Code	FB6/FG4
Front Springs (kg/mm)	62-200-10kg
Rear Springs (kg/mm)	62-150-8kg-S
Front Swift Springs (kg/mm)	62-203-X
Rear Swift Springs (kg/mm)	62-152-X
Front Camber Plates	Included
Rear Camber Plates	Not Included
Note 1	Pillowball Rear Top Mounts are not available
Note 2	Excludes 2014+ Civic Si models

Vehicle Fitment

2012 Honda Civic (FB6/FG4)
2013 Honda Civic (FB6/FG4)
2014 Honda Civic (FB6/FG4)
2015 Honda Civic (FB6/FG4)

Handling Time

All handling times are estimates provided by the manufacturer.

In-Stock Products: 1-3 business days

Products that are in-stock and do not require customization ship the same business day if ordered before 2pm ET. Orders placed after 2pm ET will ship the following business day.

Out of Stock: About 2-3 weeks

If an item is out of stock, the average lead time is 2-3 weeks before shipping.

Custom Builds: About 3-4 weeks

Custom builds include any combination of the following options:

Custom spring rates are available at no additional cost. Rates up to 20K are available in both BC Racing springs and Swift Springs. Rates ranging from 20K to 40K will require Swift Springs.

Transit Time: 1-6 days

All BC Racing Coilovers ship UPS Ground from BC Racing North America located in Oviedo, FL. The map below shows the average time it takes for the shipment to arrive at its destination.

Warranty

BC Racing North America's warranty period is two years against manufacturing defects if ordered on or after November 17, 2021. If BC Racing NA deems a part defective, BC Racing will send a replacement for that specific part. All warranty claims must be sent directly to BC Racing North America. We are not able to handle warranty claims.

How to file a Warranty Claim

Email the following information to tech@bcracing-na.com

Copy of the order receipt
Pictures of the failed part installed on the car
Detailed information on what car/corner how it happened
Your mailling address and phone number

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.
