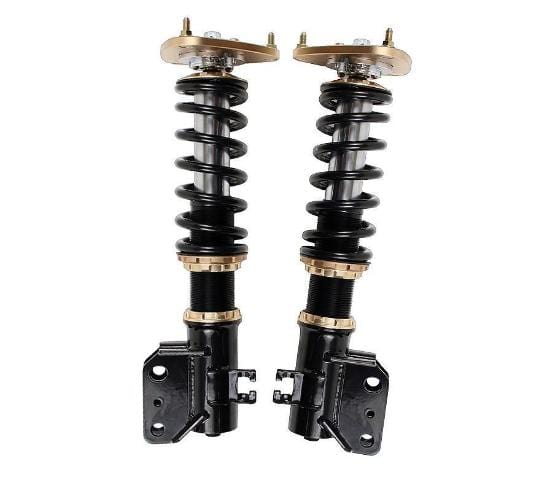

BC Racing RM Series Coilovers for 2020+ Hyundai Sonata (DN8)

Name: BC Racing RM Series Coilovers for 2020+ Hyundai Sonata (DN8)
Brand: BC Racing
Price: 1495.0 USD
Availability: InStock

$1,495.00

Out of Stock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Handling Time
Important Notes

Description

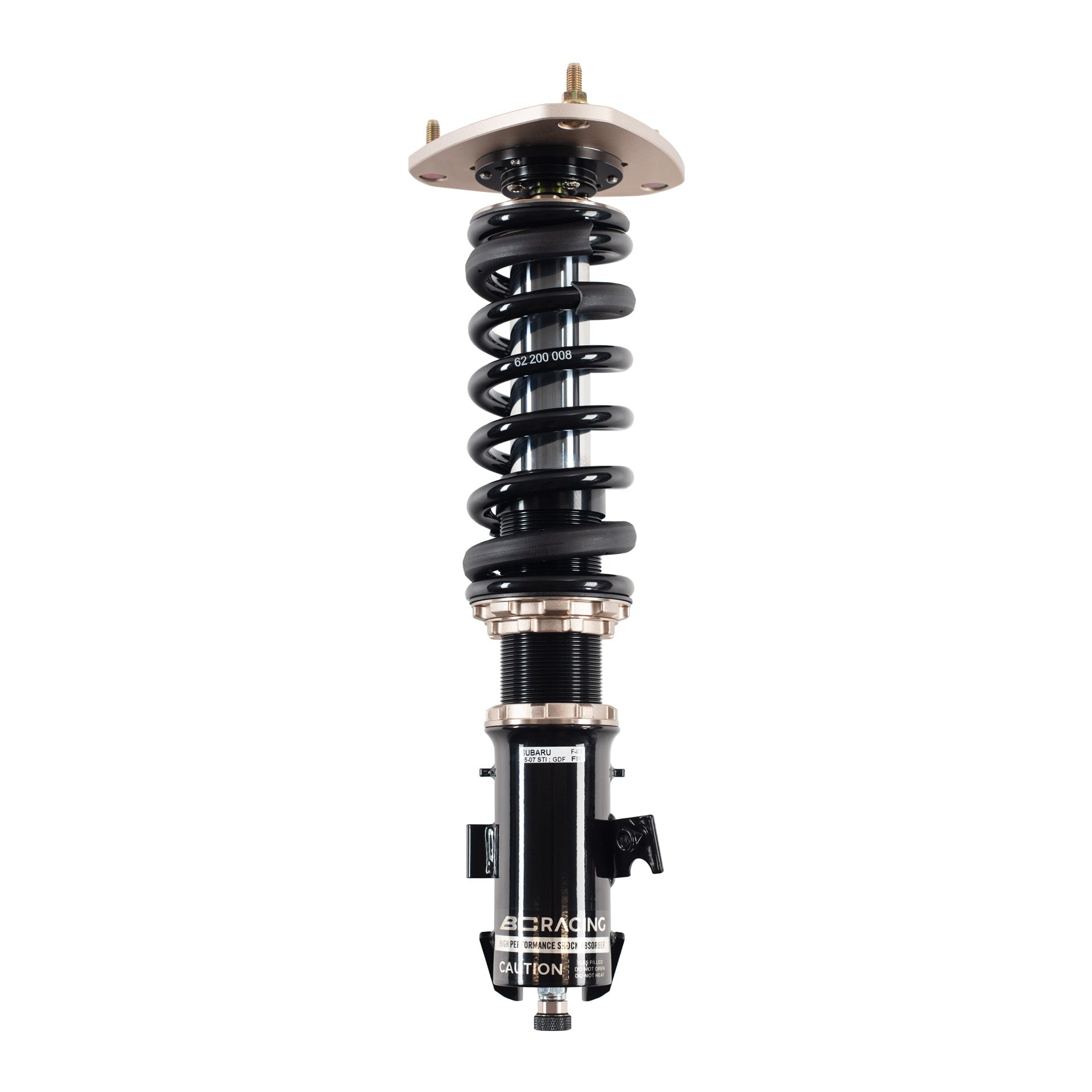

BC Racing RM Series Coilovers for the 2020+ Hyundai Sonata (DN8) use a mono-tube inverted damper in the front and rear of vehicles that use McPherson style OEM strut suspension. On vehicles that use front struts only, BC Racing provides an inverted front strut and then provides an upright BR Series damper for the rear. Inverted dampers are useful in decreasing unsprung weight by moving the greatest mass of the strut to the top where it connects to the sprung weight of the chassis, where weight can be more easily shaved.

The BC Racing RM Series Coilover System uses a much larger inverted piston shaft that can handle higher lateral loads for longer periods of time without fatigue. These higher lateral loads are only prevalent on McPherson style strut suspension, not on Double A-Arm vehicles.

Features

Highly customizable
Inverted mono-tube damper
Linear piston and damping curve
Height adjustment independent of spring compression
30-clicks of simultaneous compression/rebound adjustment
Front camber plates standard on applicable kits
Rear camber plates available for applicable kits
Custom spring rates and Swift Springs compatible
Custom valving or valving paired for custom spring rates
2 year warranty against manufacturing defects
Fully rebuildable with replacement parts

Specifications

Part Number	M-35-RM
Part Name	RM Series Coilovers
Vehicle	2020+ Hyundai Sonata
Chassis Code	DN8
Front Springs (kg/mm)	62-200-6kg
Rear Springs (kg/mm)	62-85-240-5kg-V
Front Swift Springs (kg/mm)	62-203-X
Rear Swift Springs (kg/mm)	Not Applicable
Front Camber Plates	Included
Rear Camber Plates	Not Applicable

Vehicle Fitment

2020 Hyundai Sonata (DN8)
2021 Hyundai Sonata (DN8)
2022 Hyundai Sonata (DN8)
2023 Hyundai Sonata (DN8)
2024 Hyundai Sonata (DN8)

Handling Time

All handling times are estimates provided by the manufacturer.

In-Stock Products: 1-3 business days

Products that are in-stock and do not require customization ship the same business day if ordered before 2pm ET. Orders placed after 2pm ET will ship the following business day.

Out of Stock: About 2-3 weeks

If an item is out of stock, the average lead time is 2-3 weeks before shipping.

Custom Builds: About 3-4 weeks

Custom builds include any combination of the following options:

Custom spring rates are available at no additional cost. Rates up to 20K are available in both BC Racing springs and Swift Springs. Rates ranging from 20K to 40K will require Swift Springs.

Transit Time: 1-6 days

All BC Racing Coilovers ship UPS Ground from BC Racing North America located in Oviedo, FL. The map below shows the average time it takes for the shipment to arrive at its destination.

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.
