BC Racing ZR Series Coilovers for 1992-2000 Lexus SC400 (JZZ30)

Name: BC Racing ZR Series Coilovers for 1992-2000 Lexus SC400 (JZZ30)
Brand: BC Racing
Price: 2835.0 USD
Availability: InStock

$2,835.00 ~~$3,060.00~~ On Sale

Built to Order

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description

BC Racing ZR Series Coilovers for the 1992-2000 Lexus SC400 (JZZ30) offer the most adjustability of any BC Racing Coilover System to date. Each ZR Series Coilover System is track tested and developed specifically for racers looking for more damping adjustability than the ER or HR Series can provide. The ZR Series offers 15-clicks of low-speed compression adjustment, 12-clicks of high-speed compression adjustment, and 30-clicks of rebound adjustment. They also offer full height adjustability independent of piston shaft travel and spring compression.

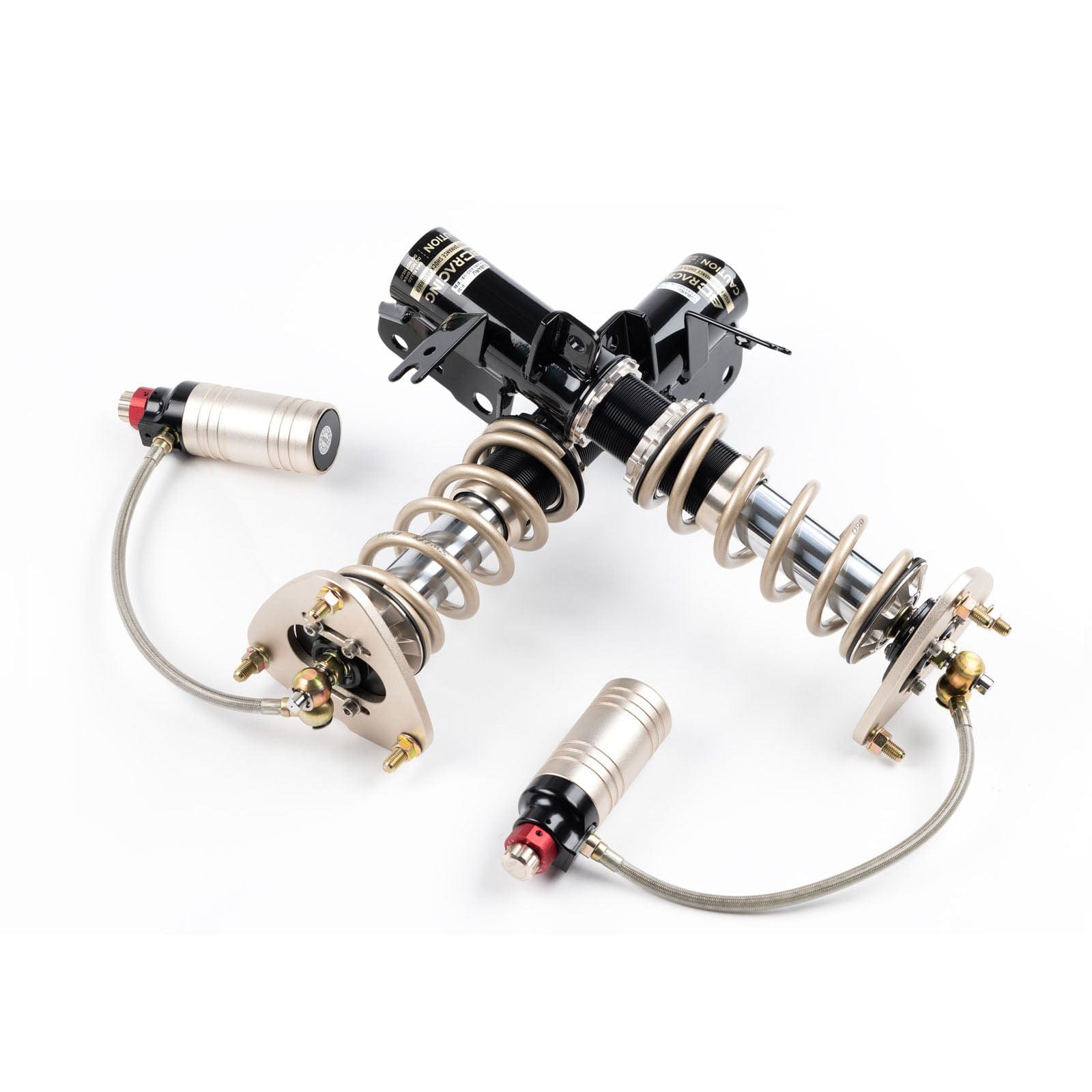

For vehicles with front and rear McPherson struts, the ZR Series comes standard with an inverted mono-tube damper. The damper has a steel braided line exiting the top of the damper leading to the external reservoirs that can be remotely mounted on the chassis for easy adjustment.

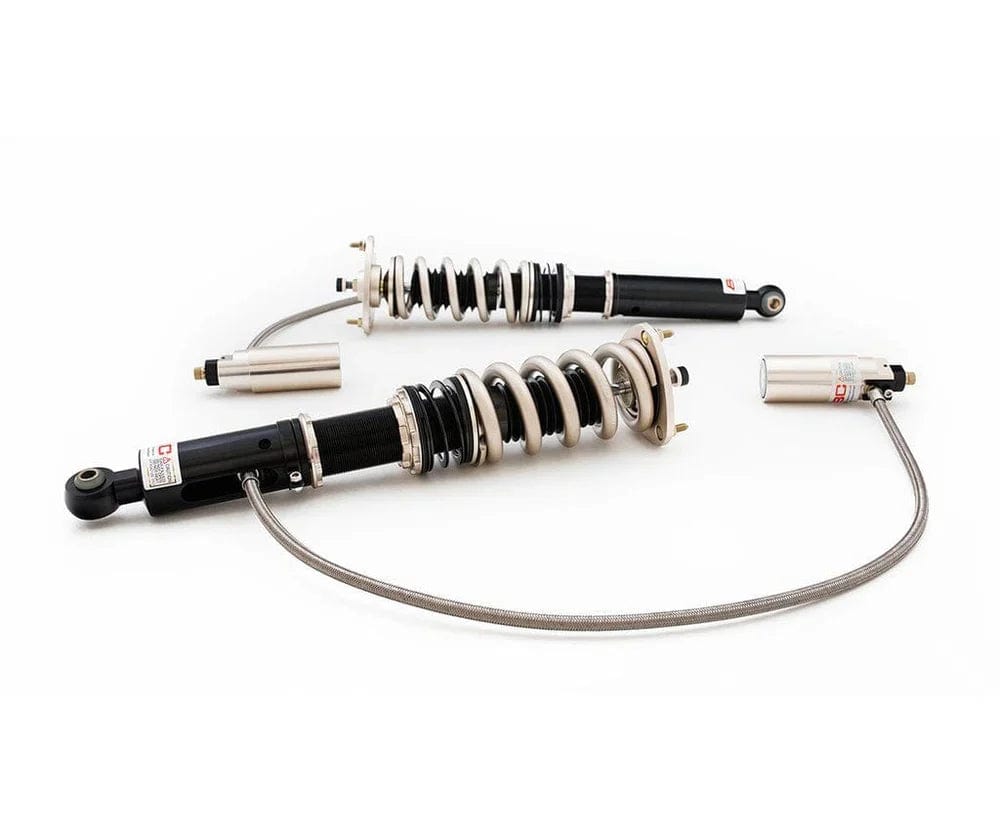

Vehicles with a Double A-Arm suspension come with upright dampers. These dampers have steel braided lines or solid stems that exit the damper at the bottom and lead to the external reservoir that can be mounted under the chassis or on the shock body itself.

Not all vehicles allow for inverted front and rear dampers. In such cases, an upright mono-tube damper will be supplied. The braided line/hard stem for the external reservoir exits the base of the damper when not inverted.

Features

Inverted mono-tube damper
Linear twin-piston design
Swift Springs come standard on ZR Series Coilovers
Height adjustment independent of spring compression
30-clicks of rebound adjustment
15-clicks of low-speed compression adjustment
12-clicks of high-speed compression adjustment
Front and rear camber plates standard on all applicable kits
Front and rear pillowball mounts standard when camber plates do not apply
Custom spring rates available
Custom valving or valving paired for custom spring rates
2 year warranty against manufacturing defects
Fully rebuildable with replacement parts

Specifications

Part Number	C-15-ZR
Part Name	ZR Series Coilovers
Vehicle	1992-2000 Lexus SC400
Chassis Code	JZZ30
Front Springs (kg/mm)	62-180-16kg
Rear Springs (kg/mm)	62-200-12kg
Front Swift Springs (kg/mm)	62-178-X
Rear Swift Springs (kg/mm)	62-203-X
Front Camber Plates	Not Included
Rear Camber Plates	Not Included

Vehicle Fitment

Handling Time

All handling times are estimates provided by the manufacturer.

In-Stock Products: 1-3 business days

Products that are in-stock and do not require customization ship the same business day if ordered before 2pm ET. Orders placed after 2pm ET will ship the following business day.

Out of Stock: About 2-3 weeks

If an item is out of stock, the average lead time is 2-3 weeks before shipping.

Custom Builds: About 3-4 weeks

Custom builds include any combination of the following options:

Custom spring rates are available at no additional cost. Rates up to 20K are available in both BC Racing springs and Swift Springs. Rates ranging from 20K to 40K will require Swift Springs.

Transit Time: 1-6 days

All BC Racing Coilovers ship UPS Ground from BC Racing North America located in Oviedo, FL. The map below shows the average time it takes for the shipment to arrive at its destination.

Warranty

BC Racing North America's warranty period is two years against manufacturing defects if ordered on or after November 17, 2021. If BC Racing NA deems a part defective, BC Racing will send a replacement for that specific part. All warranty claims must be sent directly to BC Racing North America. We are not able to handle warranty claims.

How to file a Warranty Claim

Email the following information to tech@bcracing-na.com

Copy of the order receipt
Pictures of the failed part installed on the car
Detailed information on what car/corner how it happened
Your mailling address and phone number

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.
