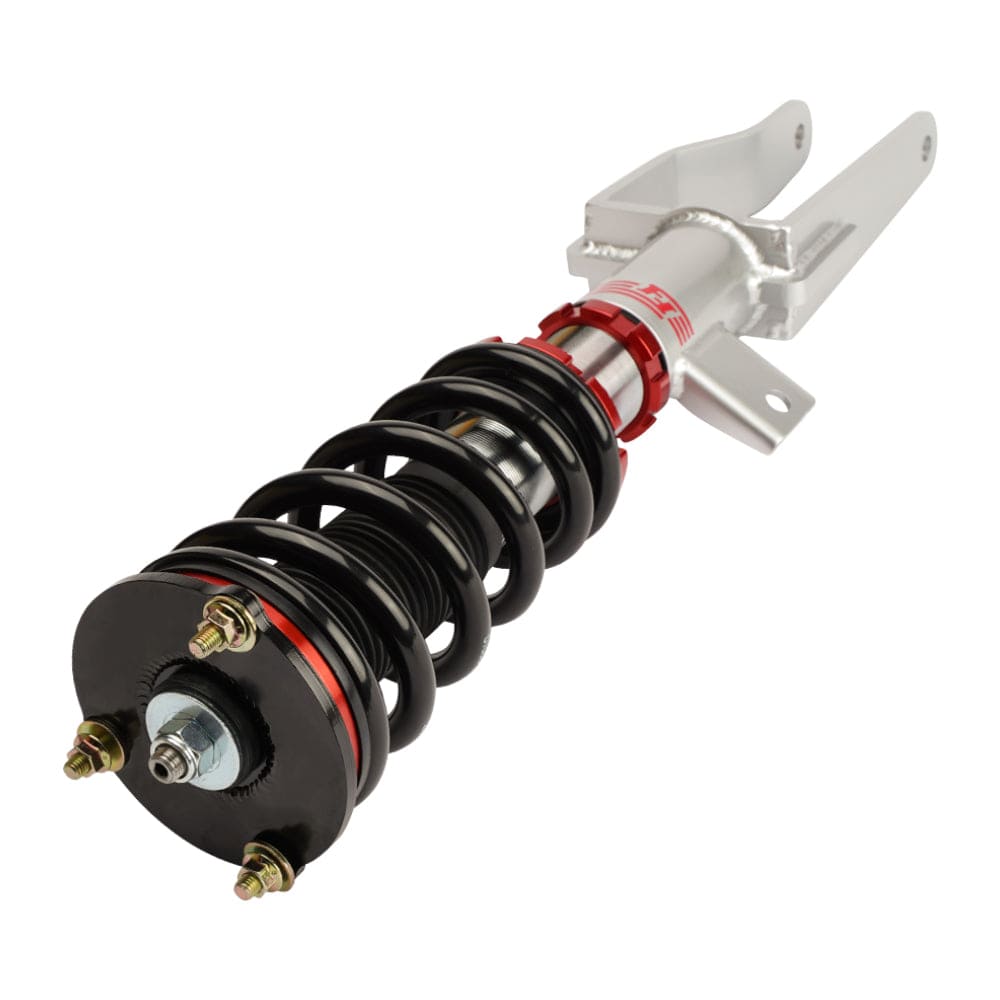

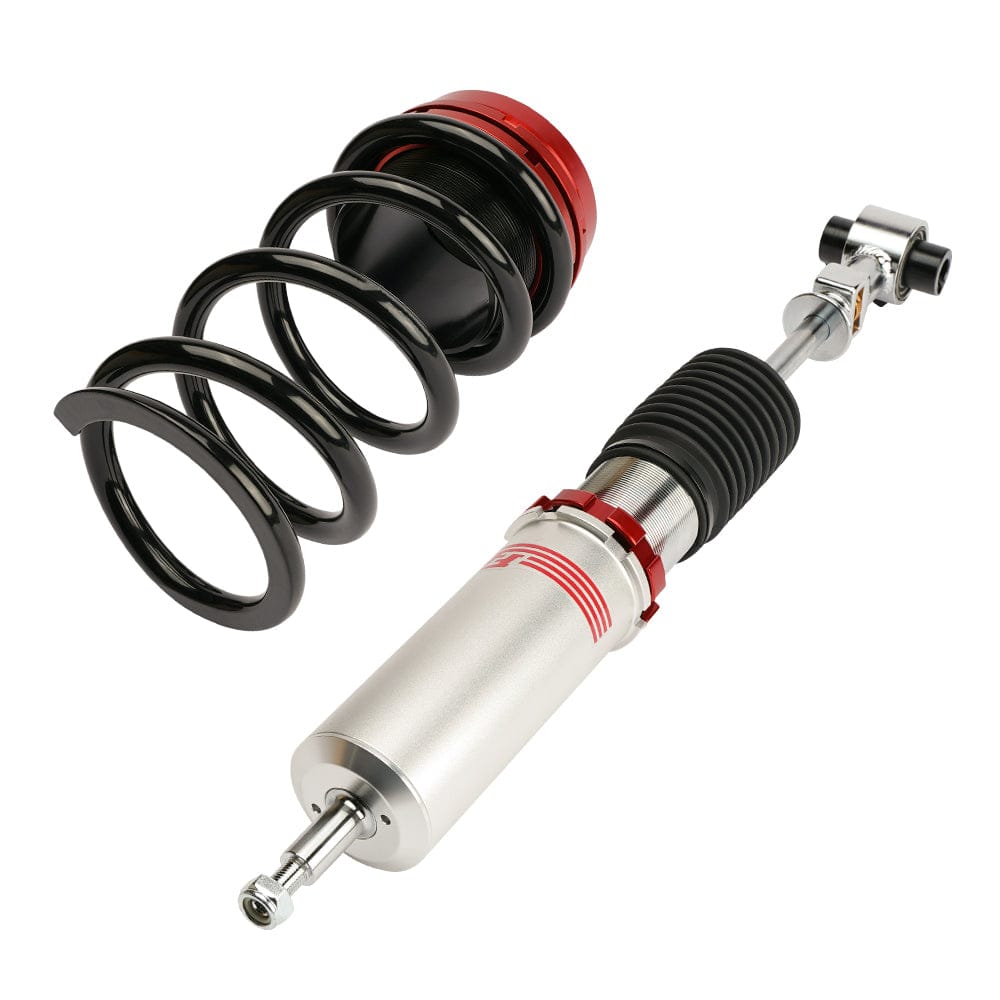

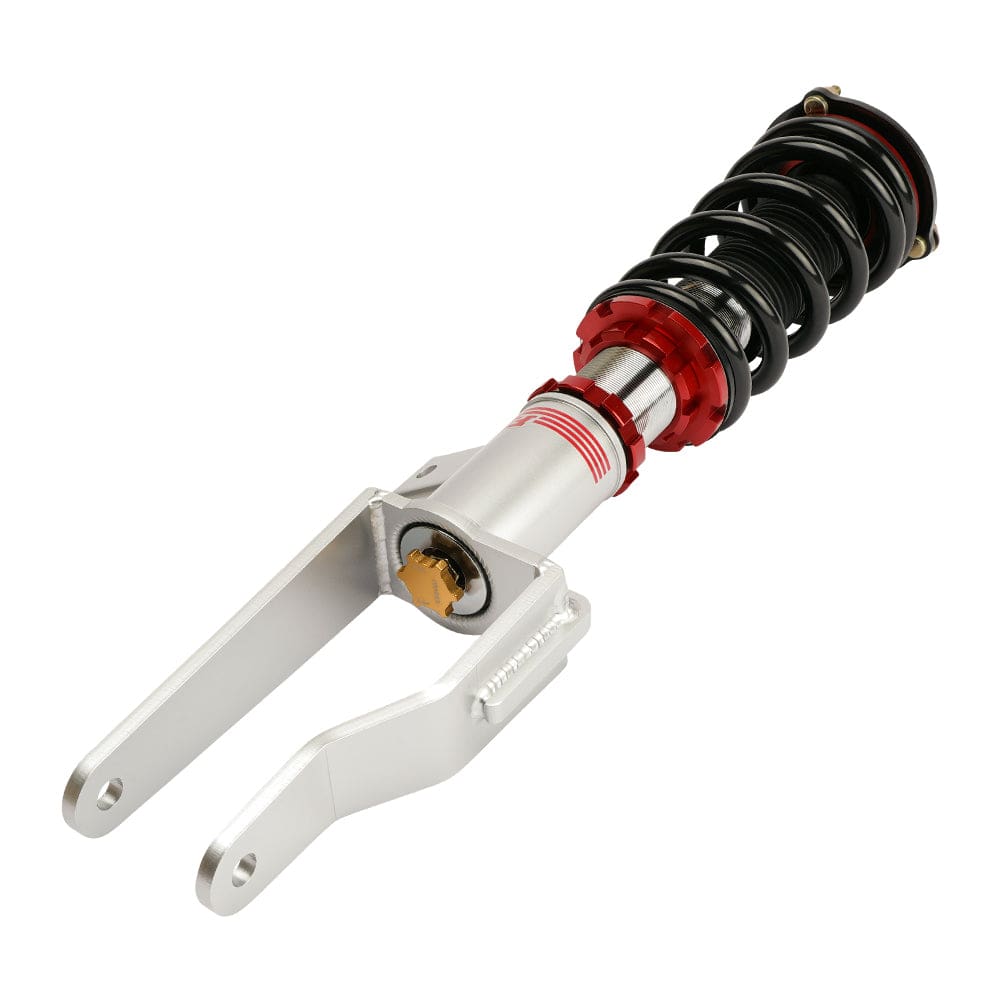

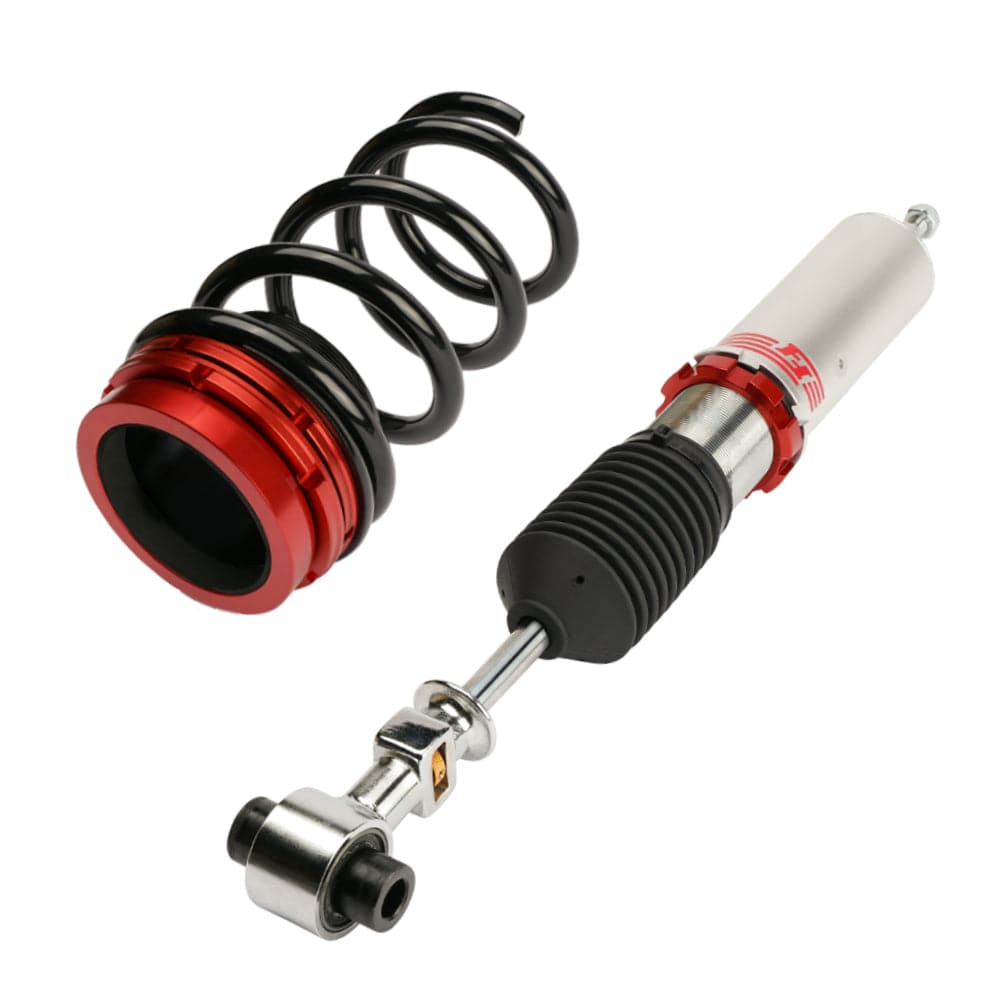

Function and Form Type 4 Coilovers for 2019+ Tesla Model 3 4WD

Name: Function and Form Type 4 Coilovers for 2019+ Tesla Model 3 4WD
Brand: Function and Form
Price: 2180.0 USD
Availability: InStock

$2,180.00

In Stock (3 Units)

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description

Function and Form Type 4 Coilovers for the 2019+ Tesla Model 3 4WD are for owners of sport luxury vehicles who are looking for coilovers that will enhance the stock ride and handling experience with a bigger shock body, better oil characteristics, and a longer stroke for the ultimate upgrade in ride quality.

What it Feels Like: Firm and capable with little body roll. Ride feels controlled, relaxed, and smooth.

Features

Inverted monotube coilovers designed with a long stroke for added travel
Aggressively tuned damping characteristics
40mm inverted piston design increases damper strength optimizing performance during aggressive movement
Large fluid valve assembly and oil chambers
1-Way adjustable with 24-step spectrum
Threaded shock body for ride height adjustments independent of spring pre-load
Digressive valving design allows for higher damping forces at lower speeds
Durable steel and aluminum components withstand real world road conditions while reducing weight
Bump stop spring aid allows progressive load deflection to improve the steady-state balance

Specifications

Part Number	47700119-4W
Part Name	Function and Form Type 4 Coilovers
Vehicle	2019+ Tesla Model 3 4WD
Chassis Code
Adjustment Type	1-Way
Damping Adjustable	Yes
Height Adjustable	Yes
Primary Color	Chrome/Red
Front Spring Rates (Default)	10 kg/mm
Rear Spring Rates (Default)	8 kg/mm
Custom Spring Rates Available	No
Front/Rear Camber Top Plates Note	Camber top plates are available or are included for select vehicles with MacPherson style suspension
Front Top Mounts	Included
Rear Top Mounts	Included
Front/Rear Top Mounts Note	Select vehicles with MacPherson style suspension will include a pillowball top mount assembly

Vehicle Fitment

2019 Tesla Model 3 4WD
2020 Tesla Model 3 4WD
2021 Tesla Model 3 4WD
2022 Tesla Model 3 4WD
2023 Tesla Model 3 4WD

Handling Time

All handling times are estimates provided by the manufacturer.

Product Status	Estimated Handling Time
In Stock	1-2 business days
Out of Stock	3-4 weeks
Type 3 Coilovers	45 days

Warranty

Limited Warranty covers products against factory defects in material and workmanship, other than coatings, when used on passenger cars and light duty (class 1‐3) trucks under normal use and operating conditions. Claims should be made through the authorized Distributor from whom the equipment was purchased. Warranty obligations for products are limited to the terms set forth below:

This warranty extends to the original retail purchaser (the “Buyer”) who retains ownership of the vehicle and is not transferable. Warranty valid only in the United States of America. F2 warrants this product against defects in material or workmanship for a period of one (1) year from the date of original sale except the following:

Coilover Sets: 2 years for Type 1, Type 2, and Type 3
Function Performance Springs (FPS): Eibach Limited Lifetime Warranty
Replacement Parts: 90-days from the date of purchase

Function & Form Warranty Links

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.
