KW V4 Coilover Kit for the 2011-2018 Lamborghini Aventador are a combination of our innovative, race proven technology, as well as decades of experience tuning high end sports cars, super sedans and exotics such as the Audi R8, Audi RS6, BMW M5, Lamborghini Aventador LP 750-4 SV, Dodge Charger SRT Hellcat, Mercedes AMG GT and more. In addition to the individually adjustable ride height the KW V4 Coilover Kit allows an independent Adjustment -f the rebound damping as well as the low-speed and high-speed compression damping. Each KW V4 Coilover Kit is delivered with a vehicle-specific comfort setting and with the integrated Adjustment -controls the damping characteristics can be set quickly and intuitively transformed to an optimized performance setup.
The 3-way adjustable high-performance dampers in the KW V4 Coilover Kits feature independent Adjustment -f the rebound damping utilizing patented TVR-A technology, as well as the low speed and high speed compression damping utilizing TVCLH-A technology. The KW V4 Coilovers are based upon successful race technology utilized by multiple overall winners of the ADAC Zurich 24h Nurburgring race. The new KW V4 Coilovers are exclusively developed for select high-performance vehicles, which benefit greatly from the KW suspension technology -o improve their driving dynamics.
Standard Features
- Racing technology from the 24h-winner
- Dampers can be adjusted independently of the rebound
- For rebound and compression damping Low- und Highspeed
- Vehicle-specific comfort setting and the adjustable dampers
- Rebound damping: comfortable adjustment
- With 16 exact clicks
- Low Speed compression: with 6 exact clicks
- High Speed compression: with 14 exact clicks
Developed exclusively for super sports cars
The KW coilover kit Variant 4 is manufactured depending on the vehicle-specific requirements in versions for McPherson suspension struts, spring struts for double cross-link or multi-link axles as well as push-rod wheel suspensions made of aluminum or stainless steel. The KW coilover kit Variant 4 is manufactured depending on the vehicle-specific requirements in versions for McPherson suspension struts, spring struts for double cross-link or multi-link axles as well as push-rod wheel suspensions made of aluminum or stainless steel. The Variant 4 is developed exclusively for super sports cars, sports cars and performance sedans and is already available for vehicles such as the Audi R8 (42), Audi RS6 (C7), BMW M5 (F10), Lamborghini Aventador LP 750-4 SV or Dodge Charger SRT Hellcat.

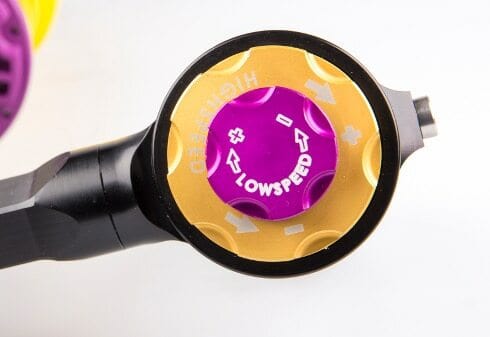

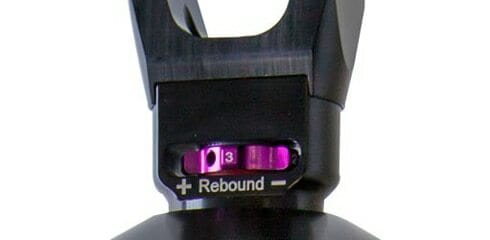

With 16 exact clicks, the rebound adjustment wheel allows to adjust the rebound damping forces for a tighter handling or more comfort. For an even more individual driving behavior, the 3-way high-performance dampers can be adjusted independently of the rebound, also in the low-speed and high-speed compression damping, separately at the reservoir with six clicks in low-speed compression and 14 clicks in high-speed compression damping.
Review in the press
The engineers at BMW's M division focused their attentions on the chassis and weight reduction. The Stock springs and dampers have therefore been replaced by three-way adjustable coilovers, with 16 clicks for rebound, 14 clicks in high speed compression and six in low speed compression. On top of that there's a 15mm window of adjustment for the ride height. We first tried the GTS at Catalunya circuit, Spain, in BMW's recommended track setting before driving it in the UK in the road setup. On circuit the M4 GTS is every bit as focused and uncompromising as you'd hope it to be. Whereas the standard car can feel quite short of body control, particularly at the rear axle, the GTS corners flatly and feels superbly locked down with none of the unsettling vertical motions that characterize the base model. Its front axle responds instantaneously to steering inputs incidentally the steering feels much more direct and communicative here than it does in the standard car and it holds a line with real resilience and barely a trace of understeer. With more power and torque to distribute the rear axle is still easily overwhelmed, but, on track at least, the car is actually very fluid and languid in the way it moves from neutrality into oversteer rather than being spikey and difficult to control. The chassis upgrades give the GTS much of the precision and immediacy of a competition car. It feels a world apart from the standard M4. On the road you need to tread carefully around the Cup 2 tires when they haven't got heat in them but it is a truly thrilling machine. The road settings for the suspension don't turn the GTS into a cosseting cruiser, but they soften things sufficiently to let it cope well with B-road bumps and although you'll still find it distracted by cambers, you're not left fighting the car. Perhaps more remarkably, it's sufficiently habitable that you wouldn't mind doing a decent motorway journey to reach a trackday, even if it was as far away as the Nurburgring.
http://www.evo.co.uk/bmw/m4-gts
Suspension is by KW Automotive and is manually adjustable through 15mm for ride height and myriad settings of high- and low-speed bump and rebound damping. The forged aluminum control arms are shared with the standard M4, but there are new rigid mountings and ball joints throughout the suspension and steering systems. BMW's standard tire is a Michelin Pilot Sport Cup 2 of 285 section on the driven rear axle. It only took seven laps of the Circuit de Catalunya to establish that this is a very special car. Not quite compelling enough to trade in your GT3 RS for, perhaps, but almost that good, in all sorts of ways: grip level, cornering balance, adjustability, handling precision, control feedback and ultimate driver reward. it's very close to the Porsche for out-and-out lapping pace, too, and from where the current M4 started out, that's quite some achievement.
https://www.motormag.com.au/reviews/1607/2016-bmw-m4-gts-review
