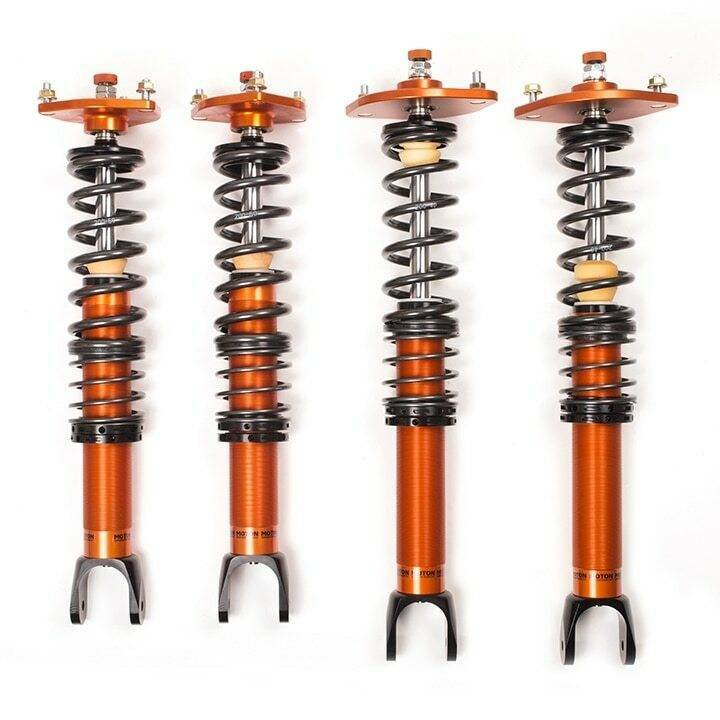

Moton Suspension 1 Way Coilovers - 1986-1990 BMW M3 2.3 EVO-1 (E30)

Name: Moton Suspension 1 Way Coilovers - 1986-1990 BMW M3 2.3 EVO-1 (E30)
Brand: Moton Suspension
Price: 5999.0 USD
Availability: InStock

$5,999.00

Out of Stock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Important Notes

Description

The Moton 1 Way system for the 1986-1990 BMW M3 (E30) is a single adjustable damper. It is the same quality mono tube damper system that you already know from our line-up.

This kit also includes the 22mm shaft and 44mm piston and is perfectly useable for racing, street or track days. The 22mm shaft together with our new low friction seals are set for fast responses and good feedback during massive side load.

This is the perfect answer for racers that are not allowed to run canisters/reservoirs in their class or for people that simply love the non-remote setup.

Benefits

Custom setup for your goals
Easily adjustable with one knob
Track proven system
Wide range of springs can be used
Rebuildable/Revalveable

Features

15 click rebound control
Height adjustable
Non reservoir setup
22mm shaft diameter
Large main piston for quick response and wide adjustment range
Top camber mounts supplied where possible/available
All hardware included for installation
High tensile helper and main springs are available as an option
DDP (double digressive pistons) are available as an option

Double Digressive Pistons are recommended for use on the non-driven wheels
4WD/FWD vehicles: DDP for both rear axle struts/shocks
RWD vehicles: DDP for both front axle struts/shocks

Specifications

Part Number: M 505 169
Product: MOTON 1 Way
System: Steel front, CO rear
Model Years: 1986-1990
Make: BMW
Model: M3
Chassis: E30
Vehicle Note: Coupe/Convertible
Coil Springs: Included
Top Mounts: Front/Rear Top Mounts Included
Front Top Mounts: Camber Adjustable
Rear Top Mounts: Solid - No camber adjustment
Adjustable Droplinks Needed? No
Adjustable Droplinks Available? No
DDP Pistons Included? No
DDP Pistons Available? Yes
QDC Included? No
QDC Part Number: Not available
TUV Approved?
Comments: OEM hubs needed before production.

Vehicle Fitment

1986 BMW M3 2.3 EVO-1 (E30)
1987 BMW M3 2.3 EVO-1 (E30)
1988 BMW M3 2.3 EVO-1 (E30)
1989 BMW M3 2.3 EVO-1 (E30)
1990 BMW M3 2.3 EVO-1 (E30)

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.
