Moton Suspension 2 Way Internal Coilovers - 2006-2008 BMW Z4 M 3.2 (E85)

Name: Moton Suspension 2 Way Internal Coilovers - 2006-2008 BMW Z4 M 3.2 (E85)
Brand: Moton Suspension
Price: 6246.13 USD
Availability: InStock

$6,246.13

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Vehicle Fitment

2006 BMW Z4 M 3.2 (E85)
2007 BMW Z4 M 3.2 (E85)
2008 BMW Z4 M 3.2 (E85)

Specifications

Part Number: M 505 181
Product: MOTON 2 Way Internal
System: Steel front, CO rear
Model Years: 2006-2008
Make: BMW
Model: Z4 M
Chassis: E85
Vehicle Note: Coupe/Convertible
Coil Springs: Included
Top Mounts: Front/Rear Top Mounts Included
Front Top Mounts: Camber Adjustable
Rear Top Mounts: Solid - No camber adjustment
Adjustable Droplinks Needed? Yes
Adjustable Droplinks Available? Part Number: DLA-BMW1-S
DDP Pistons Included? No
DDP Pistons Available? Yes
QDC Included? No
QDC Part Number: Not available
TUV Approved?
Comments:

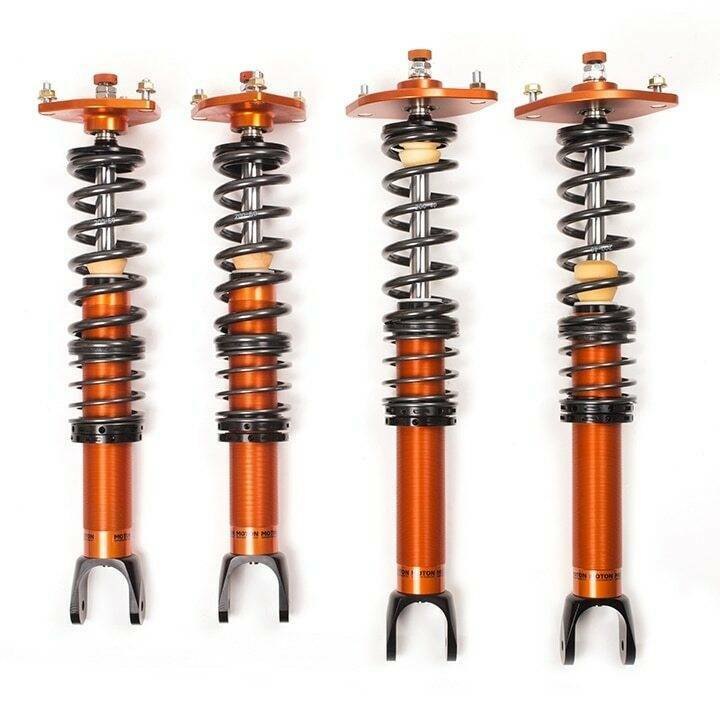

The new Moton 2 Way Internal 'Non Reservoir' system for the 2006-2008 BMW Z4 M (E85) is a double adjustable damper that is designed with a high performance adjustment system that can adjust compression and rebound damping forces with 2 knobs.

These are located on the top of the damper for easy access. The 22mm shaft together with our new low friction seals are set for fast responses and good feedback during massive sideload.

This is the perfect answer for racers that are not allowed to run canisters/reservoirs in their class.

Benefits

Custom setup for your goals
Easy to adjust from comfort to true race setup
Proven reliability
Wide range of springs can be used
Great mechanical grip
Rebuildable/Revalveable

Features

12 click compression adjustable
12 click rebound adjustable

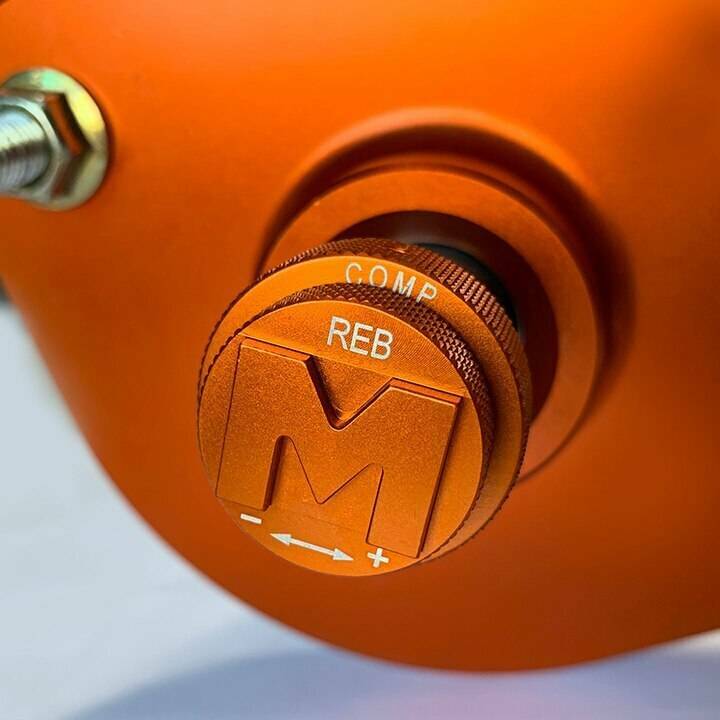

2 knob adjustment system
Ride height adjustment
Non reservoir setup
Large main piston for quick response and wide adjustment range
Shafts are induction hardened and chrome plated
Top camber mounts supplied where possible/available
All hardware included for installation
Adjustable gas pressure for added lifting force
High tensile helper and main springs are available as an option
DDP (double digressive pistons) are available as an option

Double Digressive Pistons are recommended for use on the non-driven wheels
4WD/FWD vehicles: DDP for both rear axle struts/shocks
RWD vehicles: DDP for both front axle struts/shocks
