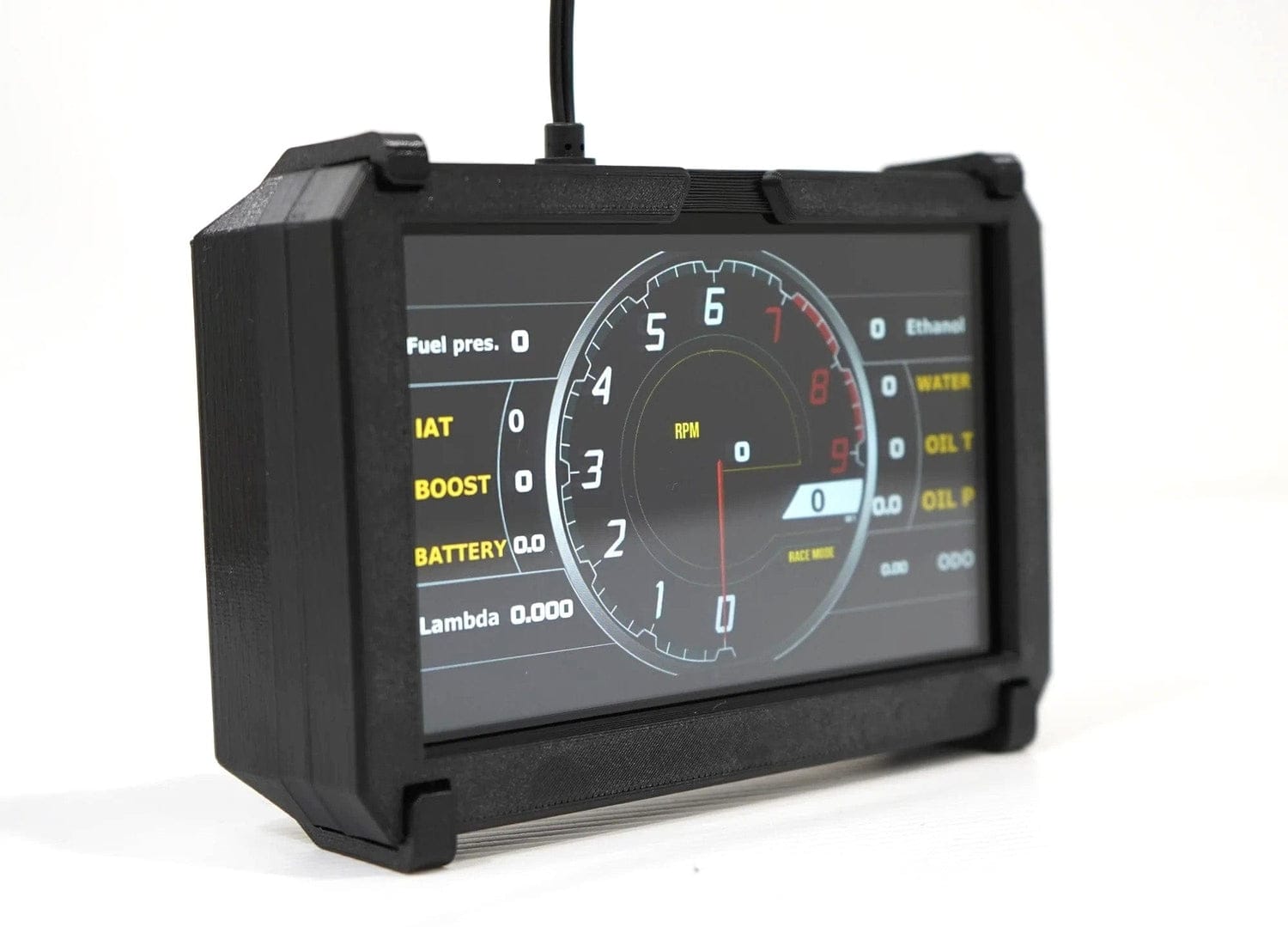

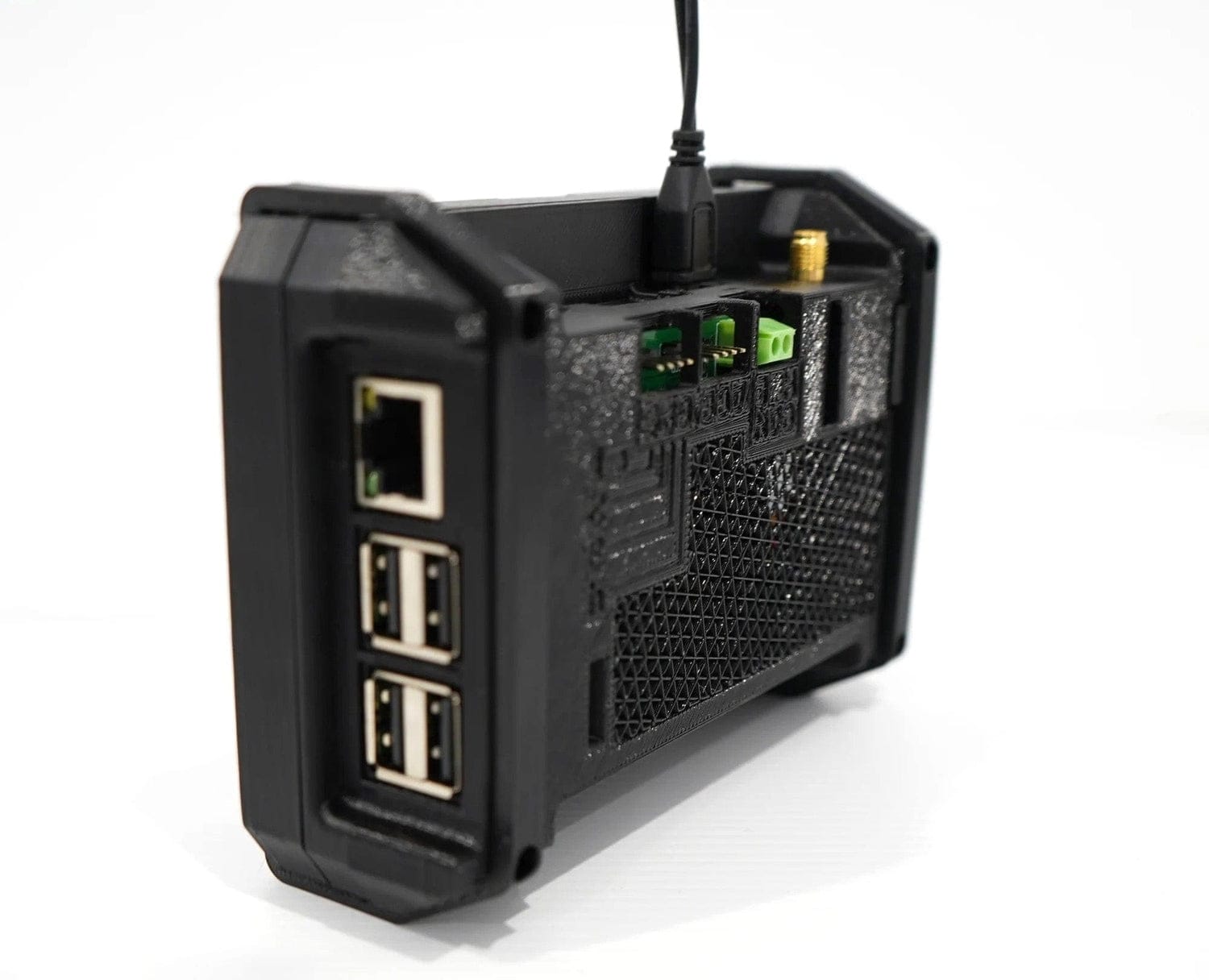

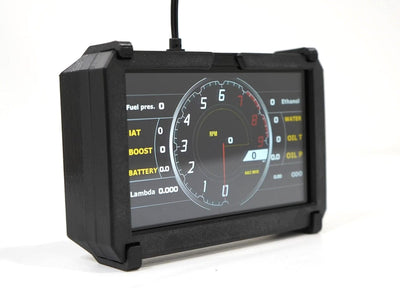

Introducing the Powertune Digital Mini Dash (V5) - a smaller version of the flagship Powertune digital dash.
The mini dash contains all of the same features and functions however has a smaller 5" screen instead of a 7", resulting in a much smaller footprint suited for small interiors. See our digital dash product page for full product information!
How It Works
Most of the magic happens in Powertune Digital's custom-built software. Powertune has spent several years developing and testing our package and have custom built the hardware to meet the requirements for the job at hand. They have written protocols to talk to major aftermarket ECUs, powered by a quad-core onboard processor and supplying a loom to plug directly into your ECU, after wiring in your power and ground the unit is plug and play and ready to go. The PowerTune Digital Street Dash ships as a complete kit with everything you need.
Features
- Live, real-time display & data logging of ECU data (that’s right, no lag!)
- Customize to your desired sensor outputs, display themes, preferred RPM and shift light settings
- Ability to datalog all readings and output to CSV or XLS for analysis of your drift sessions or time attack trips to work
- Integrate ECU data with GoPro footage to overlay driving inputs onto your track videos (requires third party software)
- Ability to set visual and audio warnings for readings and sensor states (such as knock, temperature limits, pressure limits)
- Ability to make adjustments for speed correction (changed wheel size, inaccurate mechanical gauges)
- Ability to run GPS speed for cars with no speed signal + lap timer, updating at ten times per second
- 7" LCD display (still completely visible with direct sunlight)
Includes the following:
- PowerTune Digital software and ECU communication protocols
- PowerTune digital dash
- 1-3 metre 12V to 5V 3amp vehicle wire-in power supply
- Interface adapter to plug directly to your ECU (Excludes Apexi Power FC, requires FC Hako/Datalogit cable)
- 12 month hardware warranty
GPS Features (Optional Upgrade):
- Lap Timer - able to be integrated with local racetracks
- Ability to read speed - perfect for gearbox conversions without a working speedometer
- Smooth speed readings with 10 updates per second
Note: This product drop-ships from the manufacturer in Australia.

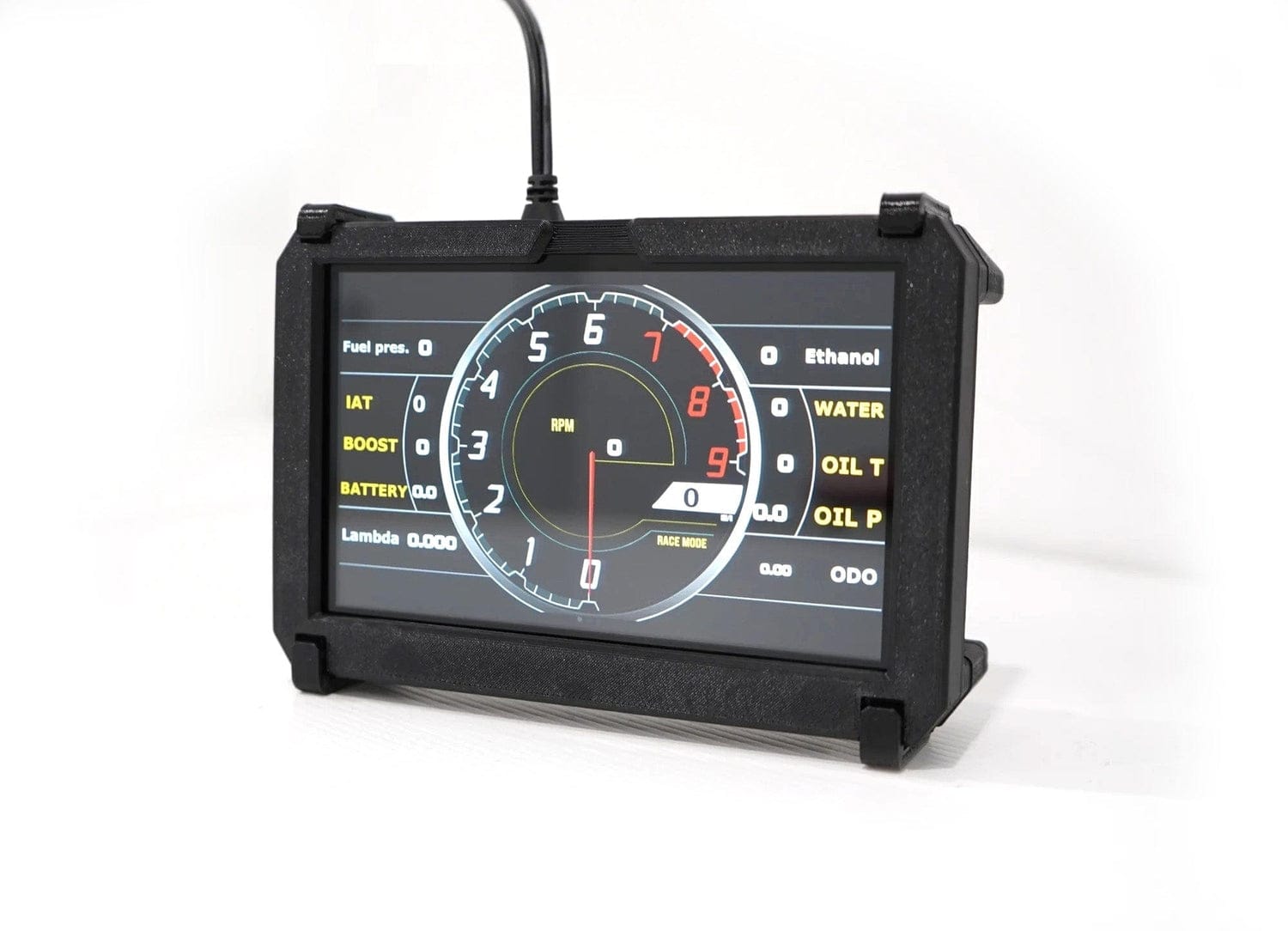

Real-time digital display
Our 5” HD touch display shows real-time ECU data via CANBUS from the basics such as RPM, speed and battery voltage up to and including any pressures, temperatures or any other sensors connected to the ECU, without any delay or lag. With up to four active dash modes you can customise the look and feel of your display with the flick of a finger!
Data logging + Lap timer
With not only a GPS based lap timer updating at ten times per second (no smartphone lag!) but with a simple touch of the settings the unit can simultaneously act as a data logger and capture and store your ECU data to export for later analysis
Easy to install
PowerTune Digital Street Dash plugs directly into your ECU canbus port via a simple loom that we provide with your kit. Power and ground are connected to any 12V source as the power supply will automatically step down to 5V, suiting any vehicle globally.
Fully customizable
PowerTune Digital Street Dash kit can be customized completely to your liking simply using the touch screen (no computer required!), with custom artwork, themes, colors, on screen warning pre-sets and more!
GoPro integration
With full GoPro integration, you have the ability to overlay your ECU data onto your GoPro footage including speed, RPM and in some cases throttle position.
Accuracy & confidence
With the data coming directly from the ECU, the risk of old, unreliable gauges showing inaccurate information is reduced.
