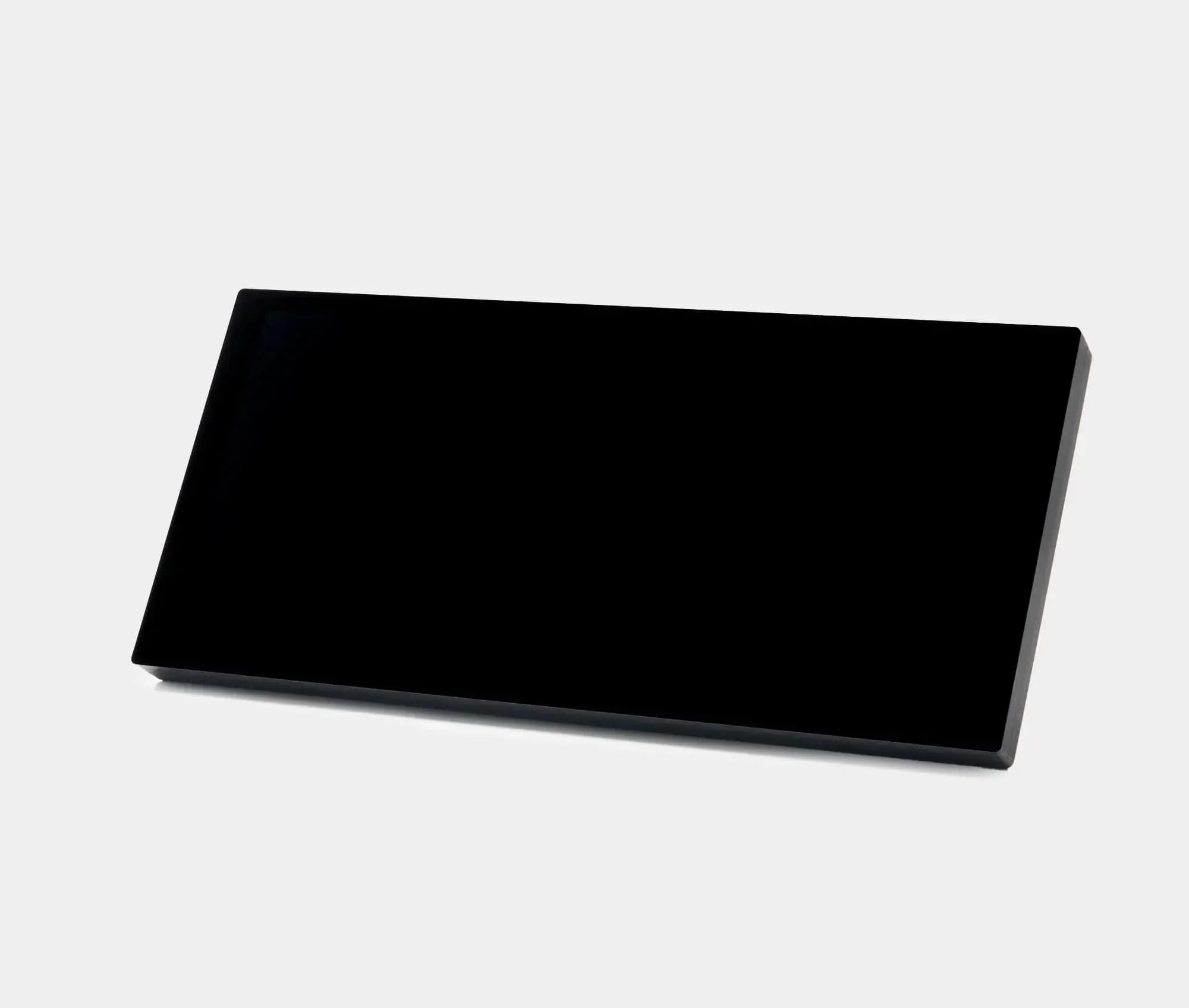

Introducing the PowerTune Digital Ultrawide V5 Dash – a revolutionary 10.4" QLED Digital Display that's set to transform your driving experience and empower you with real-time insights like never before. The ultimate digital dash kit for your car!
How It Works
Most of the magic happens in Powertune Digital's custom-built software. Powertune has spent several years developing and testing our package and have custom built the hardware to meet the requirements for the job at hand. They have written protocols to talk to major aftermarket ECUs, powered by a quad-core onboard processor and supplying a loom to plug directly into your ECU, after wiring in your power and ground the unit is plug and play and ready to go. The PowerTune Digital Street Dash ships as a complete kit with everything you need.
Features
- Wide range of compatibility with aftermarket and factory ECUs
- Live, real-time display of ECU data
- 16 (8+8) configurable analog and digital inputs (voltage OR resistance based)
Integrated 10Hz GPS kit
- Customize screen layouts to your desired sensor outputs, display themes, preferred RPM and shift light settings
- Set customised gauge warnings and master warnings for sensor ranges and states
- Make display adjustments for speed corrections (changed wheel size, inaccurate mechanical gauges), lambda to AFR conversions, MPH/KPH and more!
- Virtual drag/quarter mile timer for digital time slips
- Lap timer and data logger included!
- Regular Software Updates and strong customer service ensures your investment evolves over time
Includes the following:
-
1x PowerTune Digital Ultrawide Dash
- 1x 1.5m Harness for power and CAN Communication
- 1x CAN I/O Extender + GPS antenna
- 12 month hardware warranty + free technical support
GPS Features (Included):
- Lap Timer - able to be integrated with local racetracks
- Ability to read speed - perfect for gearbox conversions without a working speedometer
- Smooth speed readings with 10 updates per second
Note: This product drop-ships from the manufacturer in Australia.
Real-time digital display

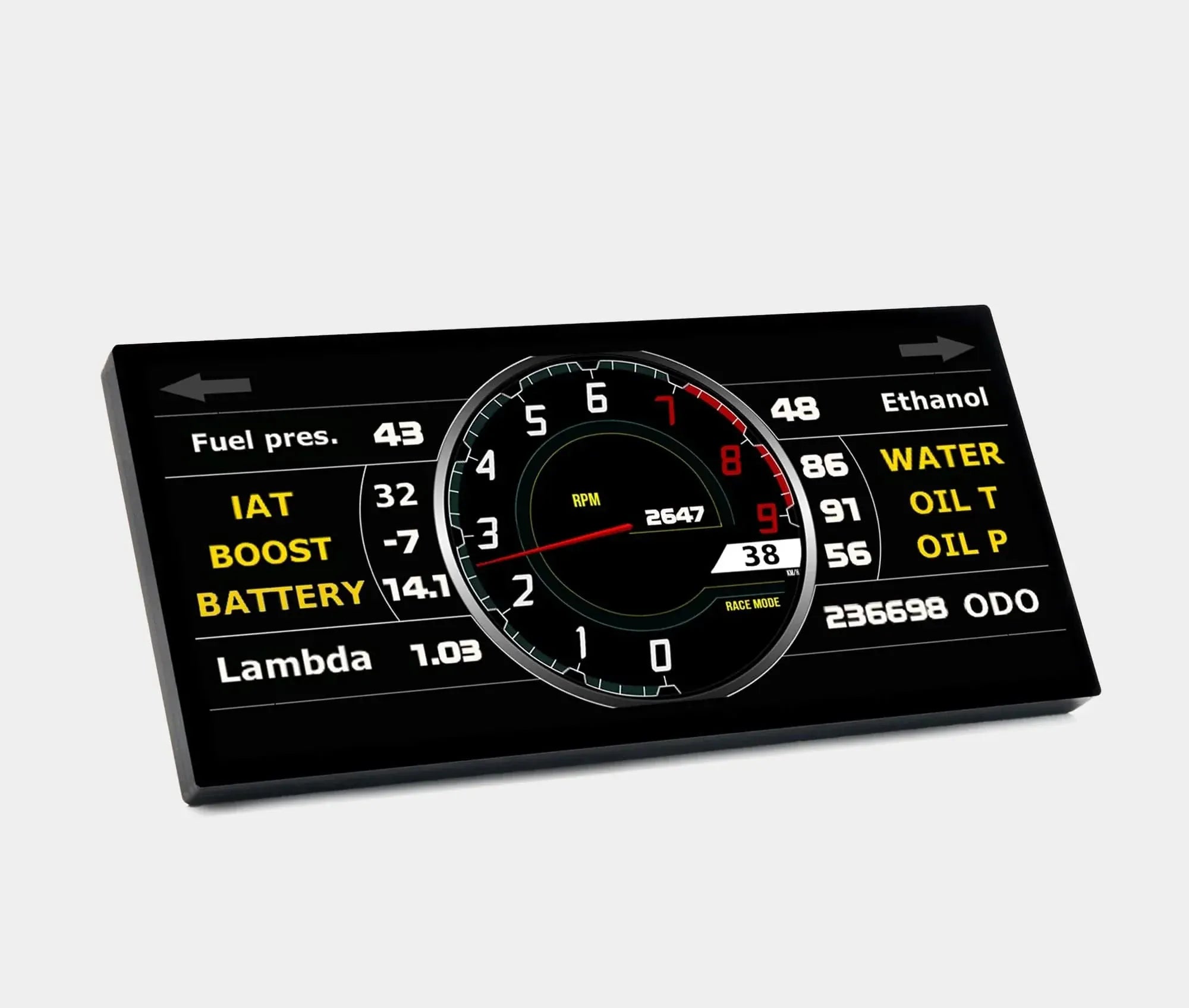

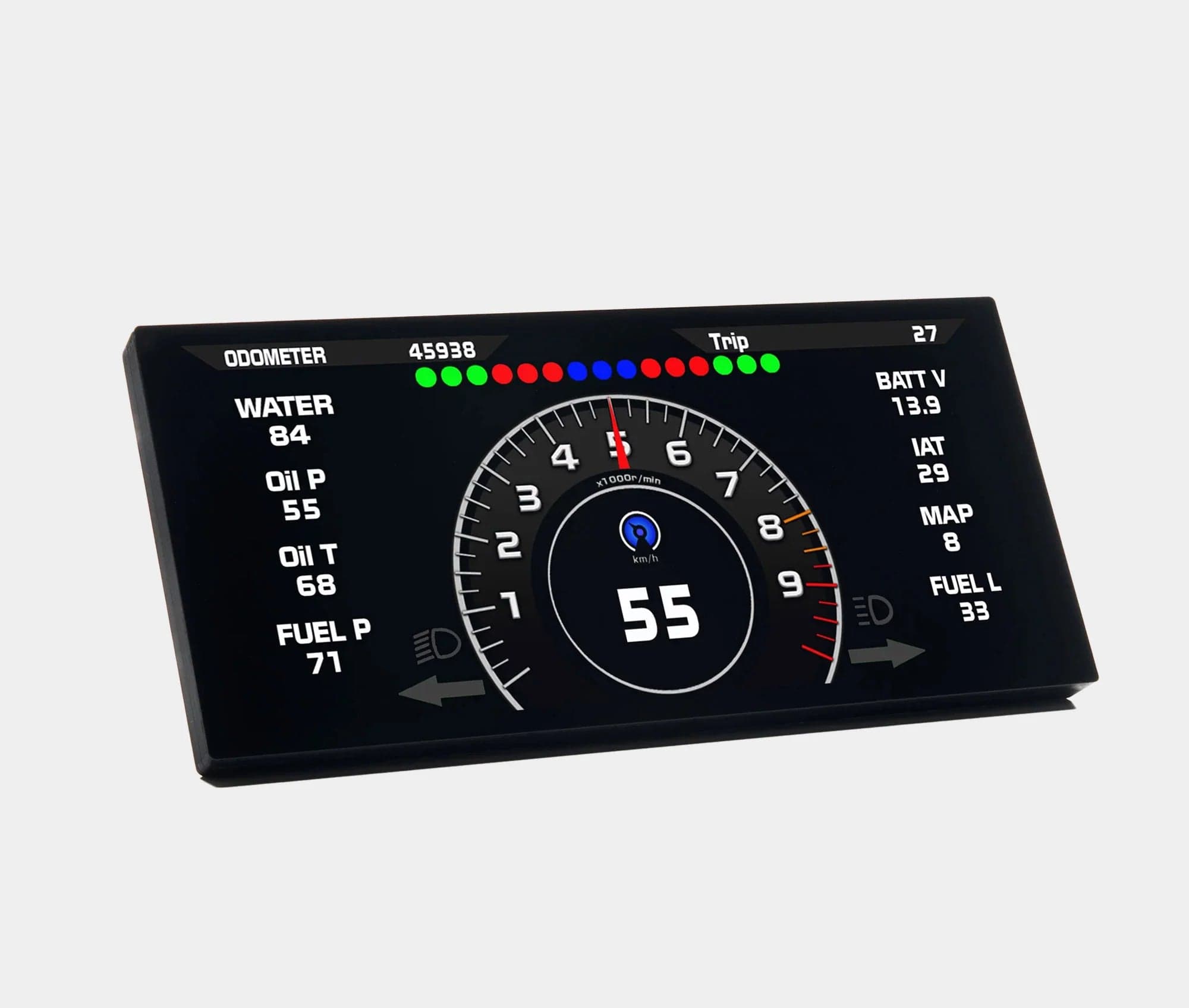

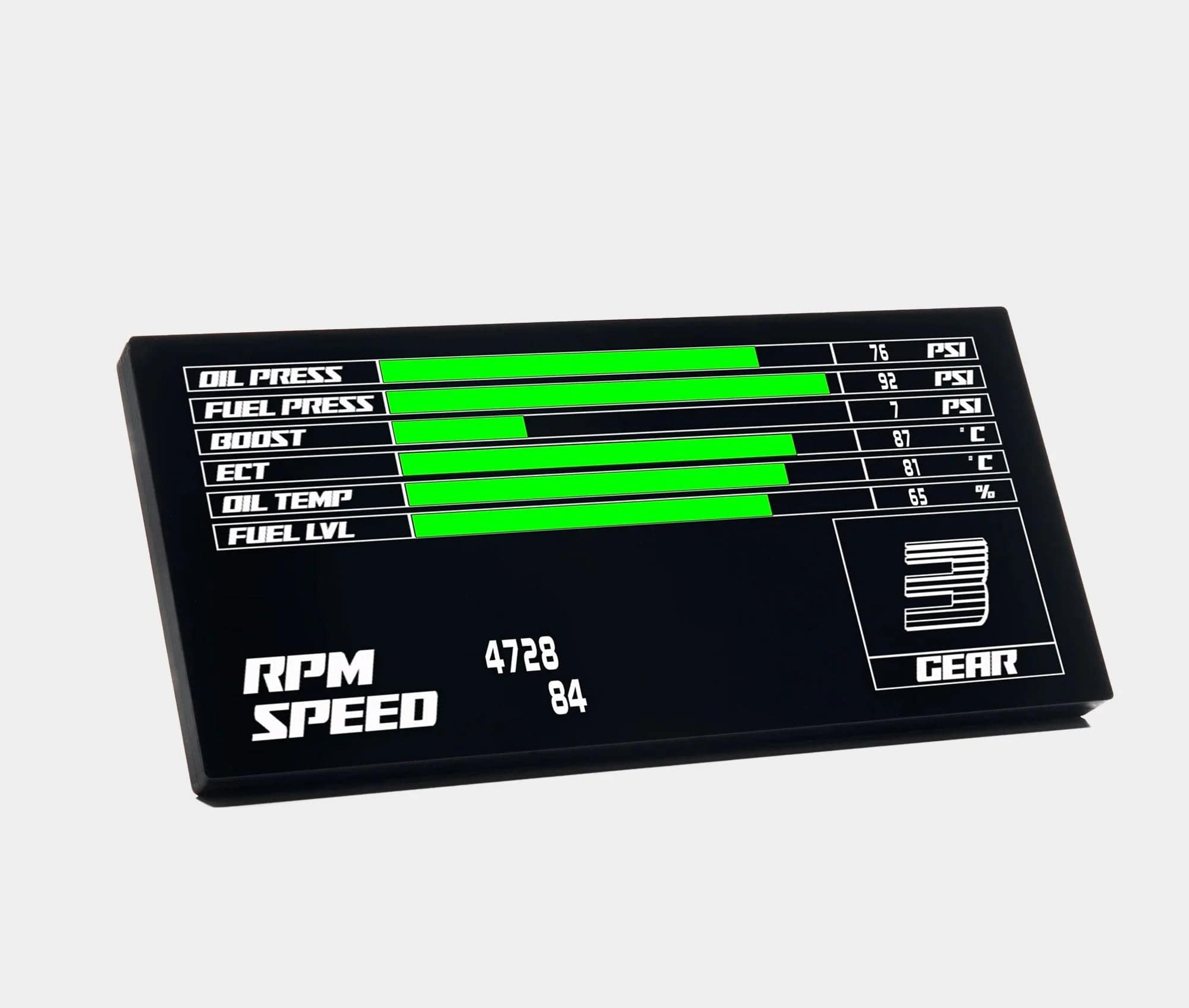

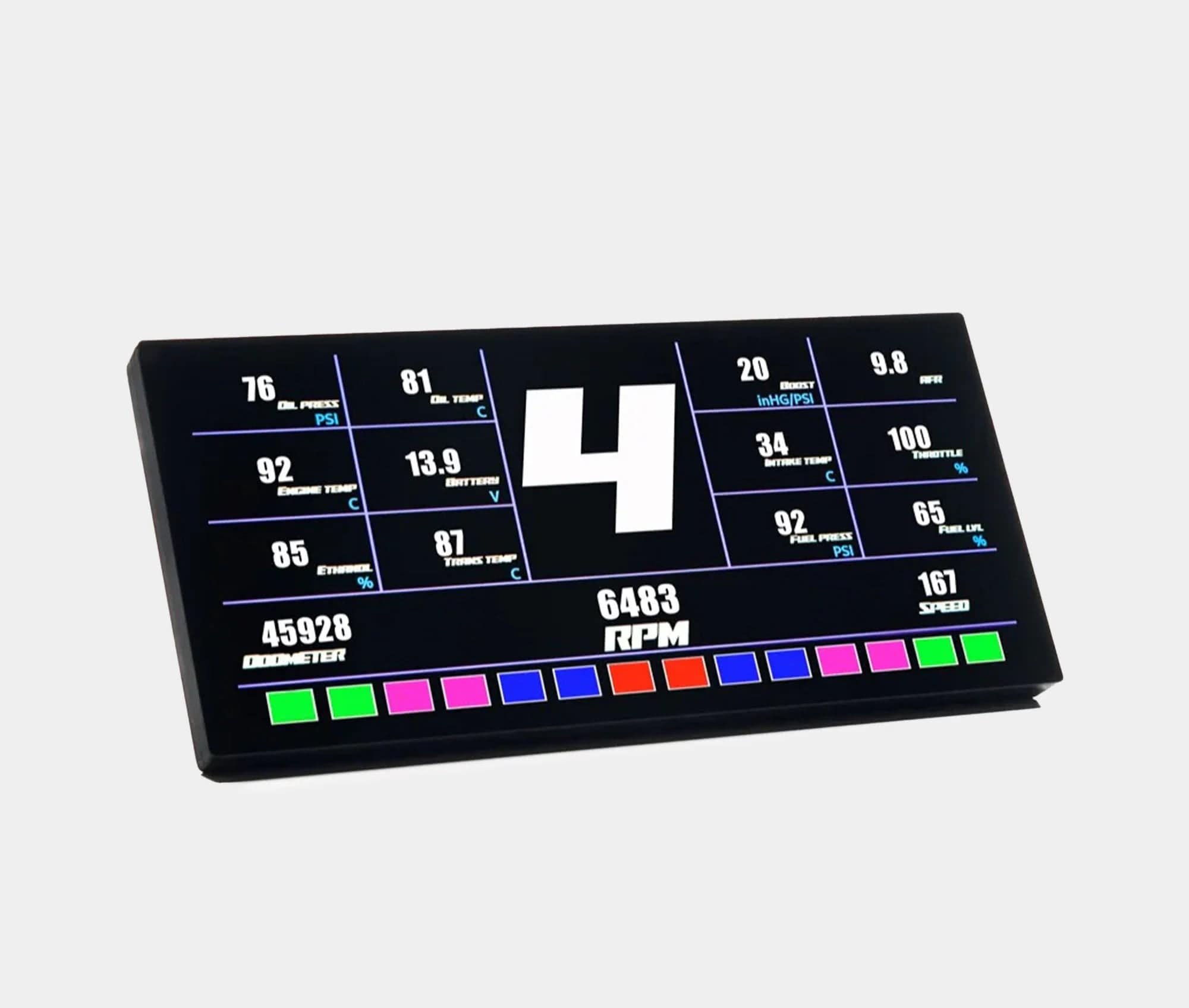

Our 10.4" QLED touch display shows real-time ECU data via CANBUS from the basics such as RPM, speed and battery voltage up to and including any pressures, temperatures or any other sensors connected to the ECU, without any delay or lag. With up to four active dash modes you can customize the look and feel of your display with the flick of a finger!
Data logging + Lap timer
With not only a GPS based lap timer updating at ten times per second (no smartphone lag!) but with a simple touch of the settings the unit can simultaneously act as a data logger and capture and store your ECU data to export for later analysis
Easy to install
PowerTune Digital Street Dash plugs directly into your ECU canbus port via a simple loom that we provide with your kit. Power and ground are connected to any 12V source as the power supply will automatically step down to 5V, suiting any vehicle globally.
Fully customizable
PowerTune Digital Street Dash kit can be customized completely to your liking simply using the touch screen (no computer required!), with custom artwork, themes, colors, on screen warning pre-sets and more!
GoPro integration
With full GoPro integration, you have the ability to overlay your ECU data onto your GoPro footage including speed, RPM and in some cases throttle position.
Accuracy & confidence
With the data coming directly from the ECU, the risk of old, unreliable gauges showing inaccurate information is reduced.
