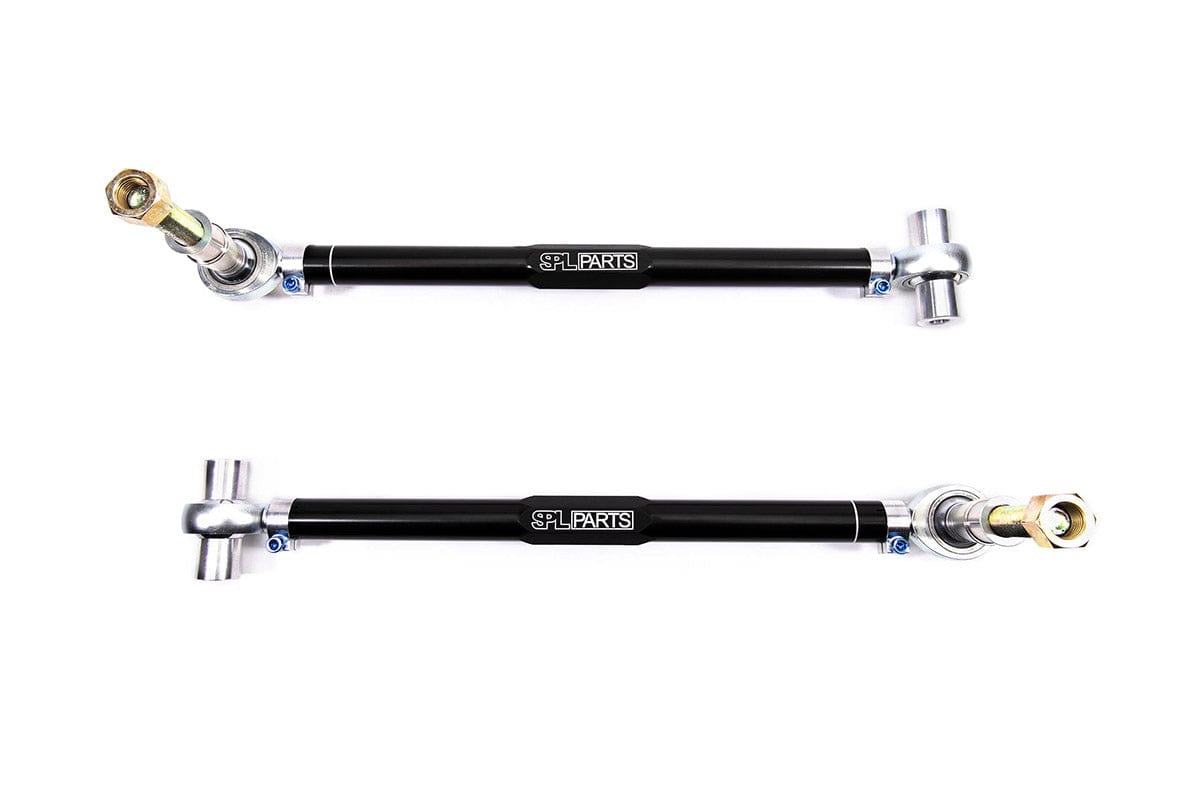

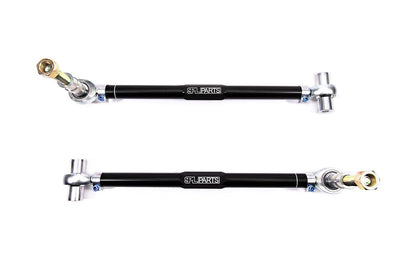

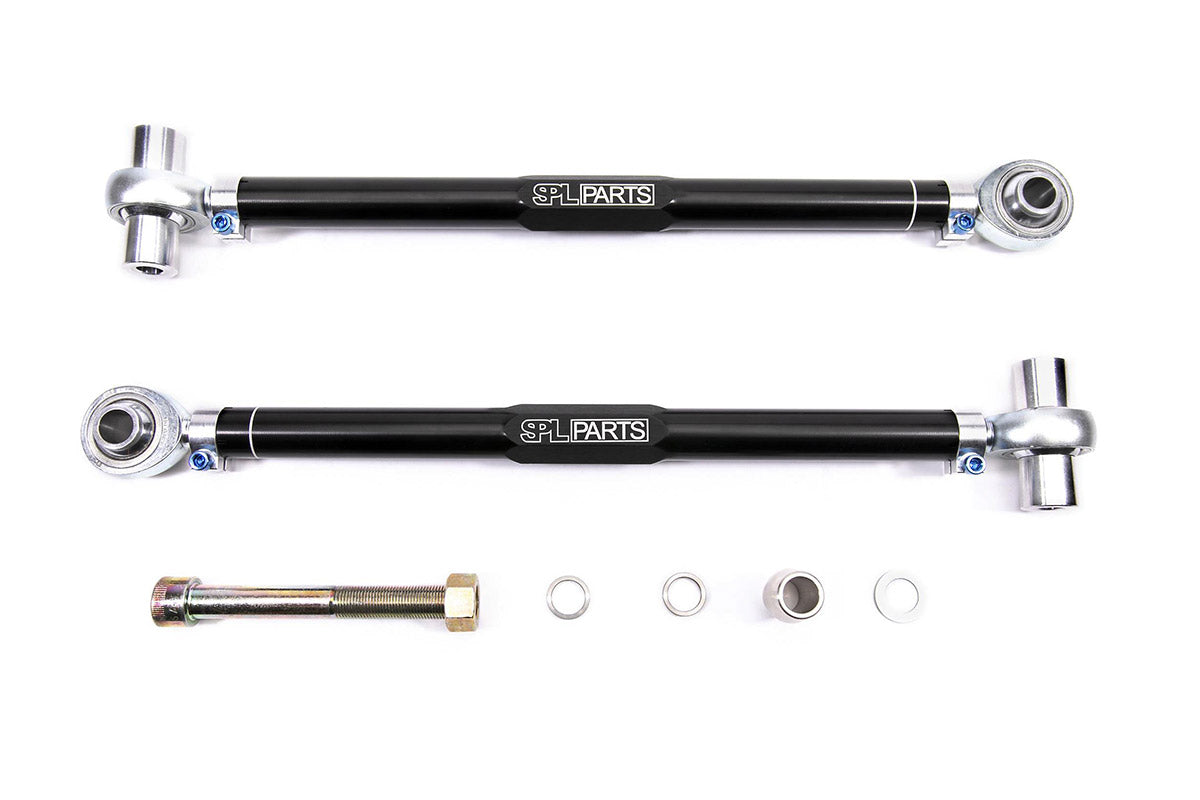

SPL Parts Adjustable Tension Rod Set - 2016-2019 Cadillac ATS

Name: SPL Parts Adjustable Tension Rod Set - 2016-2019 Cadillac ATS
Brand: SPL Parts
Price: 584.1 USD
Availability: InStock

$584.10 ~~$649.00~~ On Sale

Out of Stock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Warranty

Description

Tension Rods (TR) for the 2016-2019 Cadillac ATS provide a wide range of front caster adjustment, allowing precise alignment for optimal turn-in response and to compensate for variances between left and right caster. Low-friction, smooth articulating FK Spherical Bearings eliminate the stock mushy rubber bushing to provide a more responsive steering feel. Anti dive geometry can also be tuned with the use of our stainless steel spacers Our parts are engineered for maximum performance. Billet Aluminum alloy 2024 hex rods are precision CNC machined and gun drilled to reduce unsprung weight while maintaining high strength and stiffness. Our exclusive 360 degree Rotating Clamp design allows for easy access to quickly and precisely locking in your desired alignment settings.

Blue Anodized Titanium hardware shaves even more unsprung weight from the arms and offers superior strength. FK Bearings Rod Ends are manufactured in Connecticut and JMX hardened high misalignment rod ends are used for superior strength and maximum articulation on the spindle connection. They feature a Teflon liner to provide quiet operation, low friction, smooth articulation and eliminates bushing deflection under load. The PTFE liner is chemically bonded to the inner diameter of the race. The liner offers a very high load carrying capacity and has greatly increased dynamic wear characteristics. The operating temperatures of the liner ranges from -65 to 325F, offering robust reliability for both street and track use.

Made in the USA.

Standard Features

Gun drilled and Black Anodized
2024 Aluminum links to reduce unsprung weight
Blue Anodized Titanium socket head cap screws
Rotating 6061-T6 Aluminum Clamp design
Hardened JMX high misalignment
Low friction 3 piece Teflon lined FK Heim joints/rod ends
Stainless steel anti dive spacers
ASTM A574 socket head cap bolts used for maximum articulation with minimum tensile strength of 170,000 psi

Specifications

Part Number	SPL TR ATS
Part Name	Adjustable Tension Rod Set
UPC	887753910936
Vehicle	2016-2019 Cadillac ATS
Quantity	Pair of 2
Notes	You will have to slightly clearance the knuckle for the 5/8" Socket Head Cap Screw to pass through, although you should be able to return to stock

Vehicle Fitment

2016 Cadillac ATS
2017 Cadillac ATS
2018 Cadillac ATS
2019 Cadillac ATS

Warranty

SPL Parts Inc. suspension products are warranted to be free of defects in material and workmanship for ten (10) years or 100,000 miles from the date of purchase.

If a product fails to meet specifications, SPL PARTS INC. will, at its election, repair, replace, or make appropriate adjustment, if SPL PARTS INC. determines to its satisfaction that the product is defective in material or workmanship, i.e. contains a defect arising out of the manufacture of the product and not a defect caused by other circumstances, including, but not limited to accident, misuse, abuse, unforeseeable use, neglect, alteration, improper installation, improper adjustment, improper repair, corrosion, or failure caused by other equipment or interaction with other equipment. Using any SPL PARTS INC. arm as a tie/strap down point (ie. for a dyno session or transport) will void the warranty.

SPL PARTS INC. is not responsible for labor charges, removal charges, installation, or other incidental or consequential costs. In no event shall the liability of SPL PARTS INC. exceed the purchase price of the product.

SPL PARTS INC. makes no other warranties, either expressed or implied, including limitation warranties as to merchantability or fitness for a particular purpose. SPL PARTS INC. shall not be liable for, and buyer assumes all risk of, any advice or failure to provide advice by SPL PARTS INC. to buyer regarding the product or use and installation of product. SPL PARTS INC. shall not be liable for any special, incidental or consequential damages.

If the purchaser of the product shall fail to pay when due any portion of the purchase price, or fail to meet any terms required under contract agreed on at time of purchase, all warranties and remedies granted can be terminated.

Proof of purchase is required for all warranty claims. All warranty claims must be returned to SPL PARTS INC. for inspection, for the claim to be processed. Customers are responsible for all shipping costs.

Please contact SPL Parts by phone or email regarding any warranties.
