TEIN Street Advance Z Coilovers - 2004-2012 Nissan Tiida 15S Four, 15M Four AWD (NC11)

TEIN Street Advance Z coilovers are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Features

• Steel Construction
• Twin Tube internal construction
• Larger piston diameter for strut type front and rear (22mm)
• 16-way Damping adjustment with over 200% increase in damping force change.*
• Ride Height adjustable via spring seat
• Powder coated damper body
• Non-welded ZT coated Adjustment Tube
• Full-Length Dust Boots
• 1-piece Aluminum Spring Seat with Delrin Thrust Washer
• Available for Overhaul
• 1-year Manufacturers Defect Warranty

  *Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

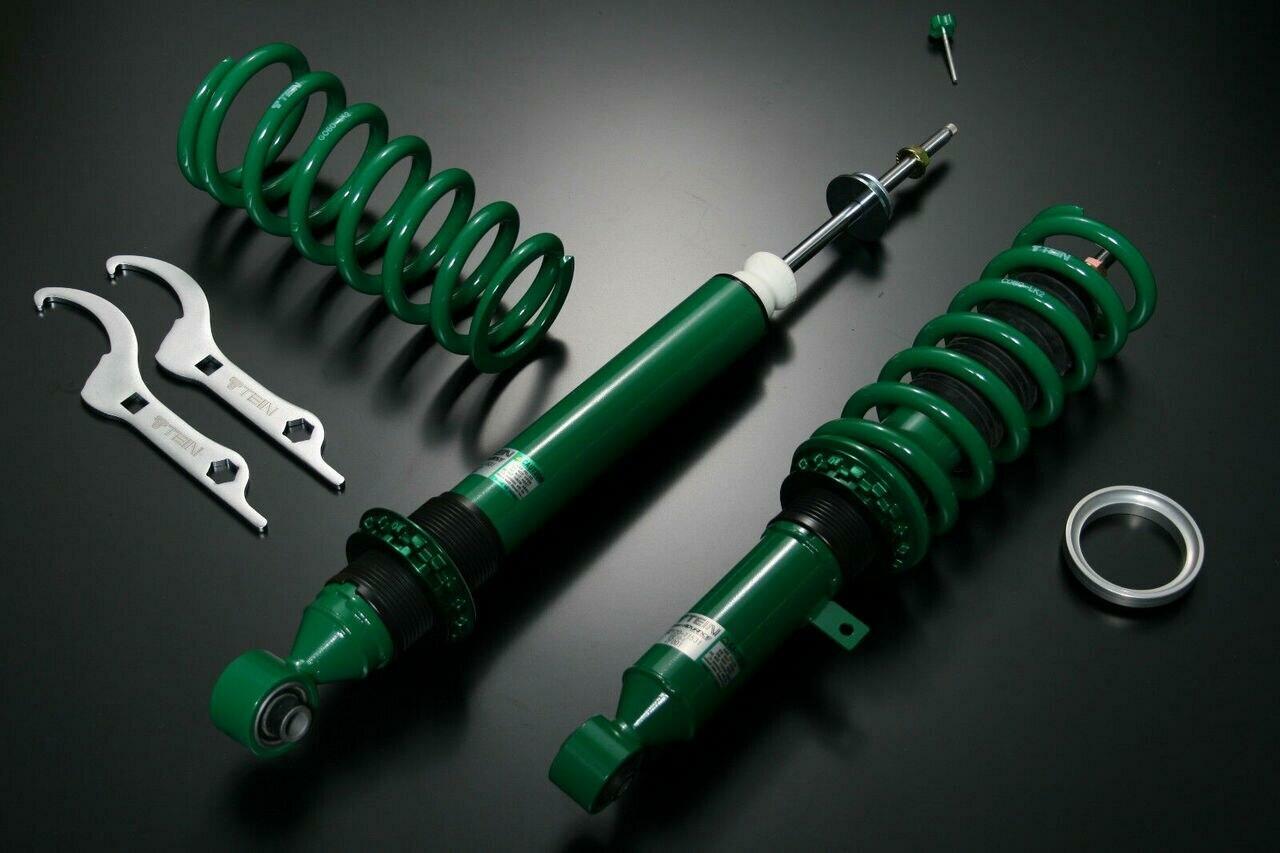

Contents of Damper Kit

• 4 TEIN Coilover Shocks
• 4 TEIN Coilover Springs (no sag version)**
• 4 Rubber Bump Stops
• 2 Hook Spanners
• 4 Spring Seats
• 4 Spring Locks
• 4 Dust Covers (some kits reuse stock dust covers)***
• 4 Delrin Thrust Washers
• 1 TEIN Sticker Sheet****
• 1 Instruction Manual

  **Some applications include helper springs
  ***Some kits will retain use of OEM Dust Covers Spring Seats — 4 Instruction Manual — 1
  ****(Note that Stickers do not come included for all JDM part numbers and for certain applications)

• Vehicle Region: JPN
• Vehicle: Nissan Tiida 15S Four, 15M Four
• Model Years: 2004-2012
• Production Years: 2004.09-2012.06
• Chassis: NC11
• Engine: 1500
• Drivetrain: AWD
• Notes: FT: OE bump rubber needs to be modified. For vehicles manufactured between Sep 2004 and Dec 2005, the required 90mm road clearance might not be secured at the recommended ride height position. When using the product, please adjust the ride height accordingly to secure the 90mm minimum road clearance.
• Part Number: GSP58-91AS2
• EDFC Compatible: Yes

EDFC Series Enables In-Car Damping Force Adjustment!

• With EDFC (Electronic Damping Force Controller) series installed, damping force can be controlled from the cockpit with ease. Stepping motors attached in place of adjustment knobs control the damping force quickly and accurately.


• Use of EDFC turns 16-level adjustment into finer 32-level or 64-level adjustment mode (64-level only available with EDFC ACTIVE / EDFC ACTIVE PRO), to provide the optimum performance by fully utilizing the damping force adjustable range drastically widened by the use of ADVANCE Needle.


• With EDFC ACTIVE / EDFC ACTIVE PRO, damping force can be controlled automatically according to changes in G-force and/or vehicle speed, to offer very smooth and slick ride like never before.
• EDFC Vehicle Options for STREETADVANCEZ
