TEIN Super Drift Coilovers - 1991-1993 Nissan Silvia J'S, Q'S, K'S RWD (PS13)

Name: TEIN Super Drift Coilovers - 1991-1993 Nissan Silvia J'S, Q'S, K'S RWD (PS13)
Brand: TEIN
Price: 1805.0 USD
Availability: OutOfStock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Warranty
Important Notes

Description

TEIN's support of competition D1 drivers and vehicles has led to the development of the TEIN Super Drift dampers, which were specifically developed for the avid drifter. Spring rates and damping force characteristics were chosen to increase car control in a drift, and to aid in initiating a slide. Full length and 16 level damping force adjustment allow suspension tuning for drivers at all skill levels. Pillowball upper mounts with front camber adjustment plates are included*. EDFC compatible for quick and hassle free dampening force changes. Super Drift is the suspension of choice for all levels of drifters.

Features

Steel Construction
Twin Tube internal construction
Ride Height adjustable via threaded body and spring seats
16 way adjustable dampers, compression and rebound combined
Special damping force curves to improve drift control
Pillow ball upper mounts for increased steering feel
Upper camber adjustment on front for strut type vehicles
Larger piston diameter for strut type front and rear (22mm)
EDFC (Electronic Damping Force Controller) compatible
Anodized brackets with Teflon coated shock body for heavy duty rust prevention
1-year manufacturer's limited warranty

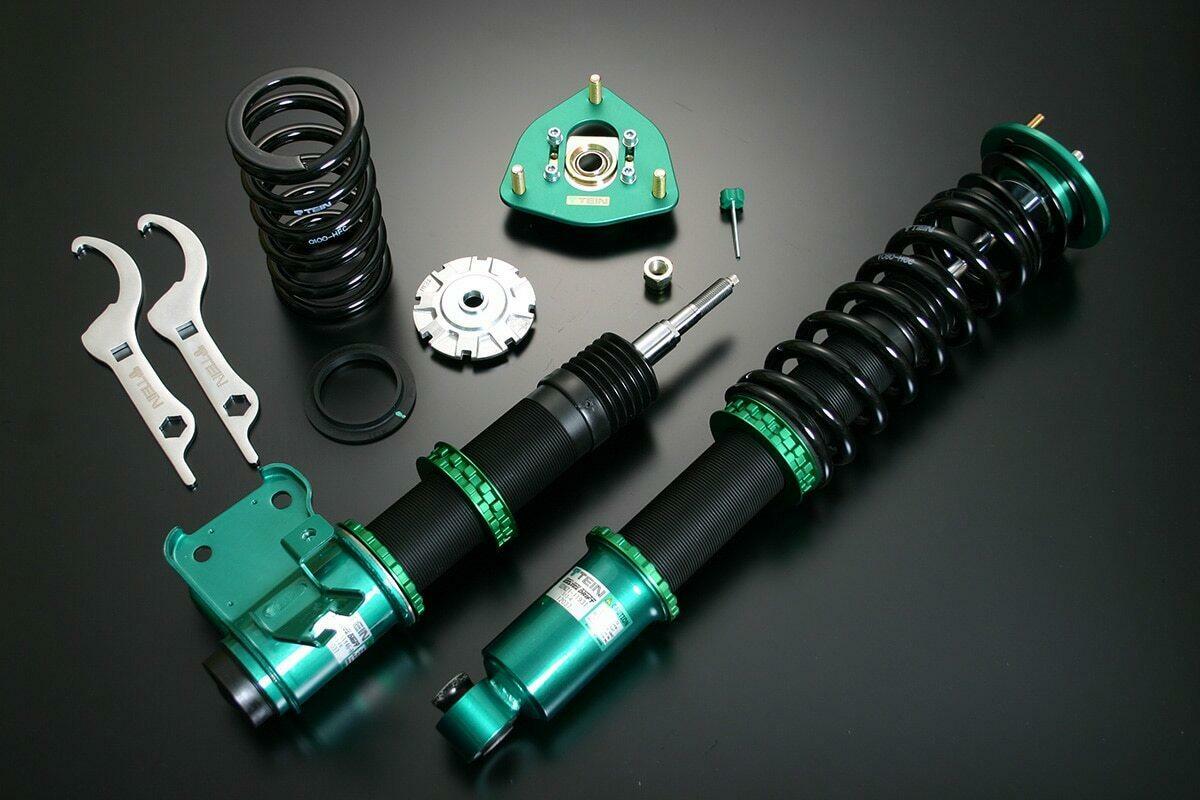

Contents of Damper Kit

Adjustable Shock Absorber ×4
Bump Rubber ×4
Main Spring ×4
Hook Spanner ×2
Some applications include helper springs
Dust Cover ×4
Pillow ball Upper Mount ×4
Instruction Manual ×1
Lower Spring Seat ×4
Sticker Sheet ×1
Seat Lock ×12

Specifications

	Front	Rear
Damping Force Adjustment:	Yes	Yes
Ride Height Adjustable:	Yes	Yes
Upper Mounts:	Camber Adjustable	Pillowball
Spring Rates (Kg/mm):	10.0	8.0
Ride Height Range:	0.7 to -3.6	1.2 to -4.4

Vehicle Fitment

Vehicle Region: JPN
Vehicle: Nissan Silvia J'S, Q'S, K'S
Model Years: 1991-1993
Production Years: 1991.01-1993.10
Chassis: PS13
Engine: 2000
Drivetrain: RWD
Notes: -
Part Number: GSN20-D1SS1
EDFC Compatible: Yes

EDFC Series Enables In-Car Damping Force Adjustment!

With EDFC (Electronic Damping Force Controller) series installed, damping force can be controlled from the cockpit with ease. Stepping motors attached in place of adjustment knobs control the damping force quickly and accurately.

Use of EDFC turns 16-level adjustment into finer 32-level or 64-level adjustment mode (64-level only available with EDFC ACTIVE / EDFC ACTIVE PRO), to provide the optimum performance by fully utilizing the damping force adjustable range drastically widened by the use of ADVANCE Needle.

With EDFC ACTIVE / EDFC ACTIVE PRO, damping force can be controlled automatically according to changes in G-force and/or vehicle speed, to offer very smooth and slick ride like never before.
EDFC Vehicle Options for SUPERDRIFT

Warranty

TEIN's warranty covers new TEIN products within one year (from date of purchase) when purchased from a TEIN Authorized Dealer (Springrates.com). Warranty claims require the part be sent to TEIN for inspection along with the receipt and the Overhaul Agreement Form.

TEIN Warranty Links

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.
