Voodoo13 Adjustable Solid Subframe Bushings - 2017-2020 Toyota 86 (ZN6)

Name: Voodoo13 Adjustable Solid Subframe Bushings - 2017-2020 Toyota 86 (ZN6)
Brand: Voodoo13
Price: 233.0 USD
Availability: InStock

$233.00 ~~$253.00~~ On Sale

In Stock (5 Units)

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Warranty

Description

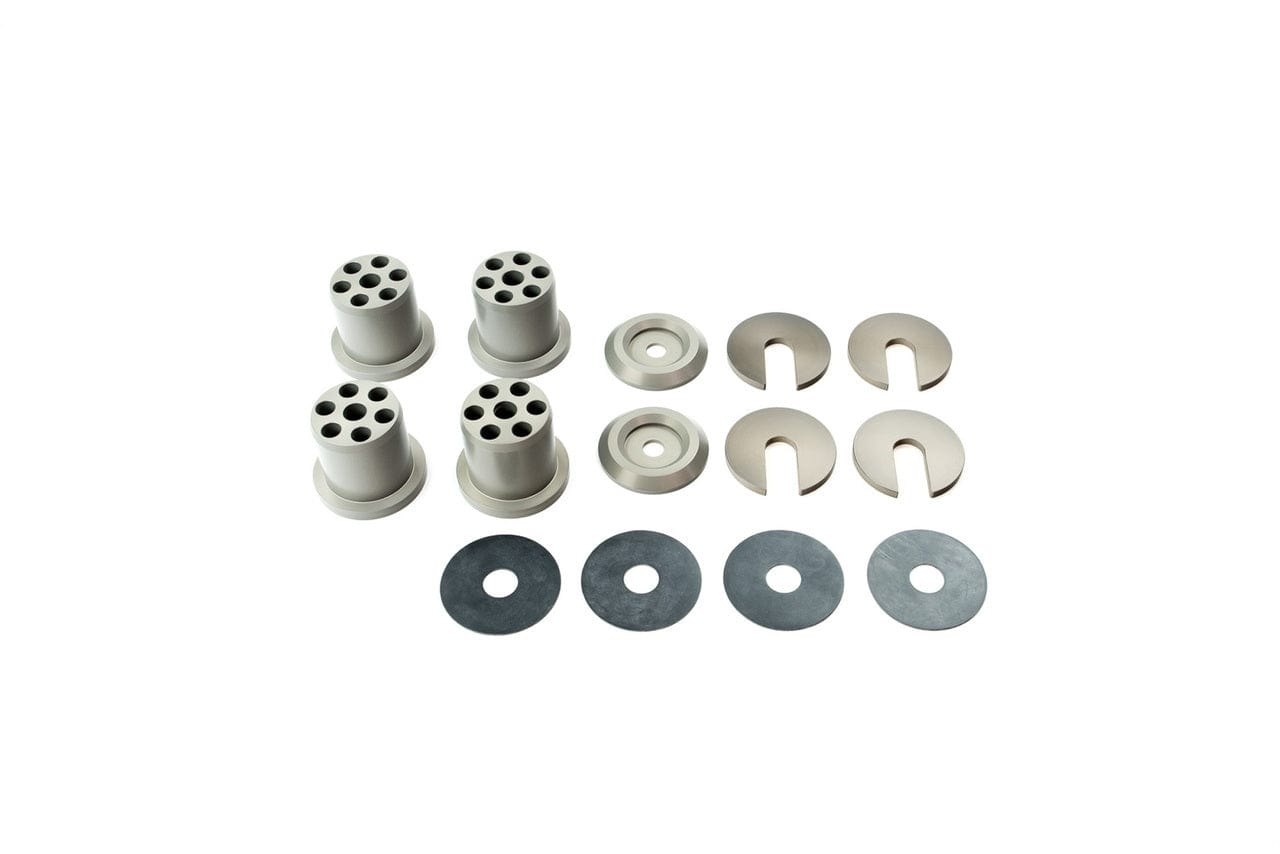

Voodoo13 Scion FRS & Subaru BRZ adjustable aluminum subframe bushings are designed to rid subframe to chassis play by eliminating the soft OEM rubber bushings. Solid subframe bushings are a sure way to reduce unwanted wheel hop as well as maintaining set suspension geometry. Unlike the competition, our subframe bushings feature a unique deep angle chamfer in the center to lessen the difficulty of the subframe re-installation to the chassis. Instead of re-using the rear factory finishing caps like other companies, Voodoo13 provides our own laser engraved finishing caps to add to the aesthetics to an otherwise bland part of the car. The front subframe mounts use a beveled ring to utilize the factory subframe braces. Slide-in shims allow quick subframe adjustment without removal, to either raise or lower the mounting points. Lowering the subframe with decrease anti-squat while simultaneously increasing the roll-couple, while raising the subframe will correct roll center on a lowered car while increasing anti-squat.

Features

6mm increments of roll center and anti-squat adjustment
CNC machined aerospace grade aluminum
Optional EPDM isolation washers will reduce NVH (noise, vibration, harshness) commonly caused by solid subframe bushings
Unique design for aesthetics and 100% functionality

Download installation instructions (PDF)

Warranty

Voodoo13 (Autoline Industries LLC) offers a Limited Lifetime Warranty to the original retail consumer against component defects and workmanship when used on light- truck and car applications under normal operating conditions.

This warranty does not apply to parts that have been improperly installed or wearable items such as, but not limited to, worn bushings or bearings unless proven to be defective from the manufacturer.
