Voodoo13 Adjustable Tie Rod Ends (Front/Outer) - 1999-2002 Nissan 240SX S15

Name: Voodoo13 Adjustable Tie Rod Ends (Front/Outer) - 1999-2002 Nissan 240SX S15
Brand: Voodoo13
Price: 257.0 USD
Availability: InStock

$257.00 ~~$279.00~~ On Sale

Out of Stock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Warranty

Description

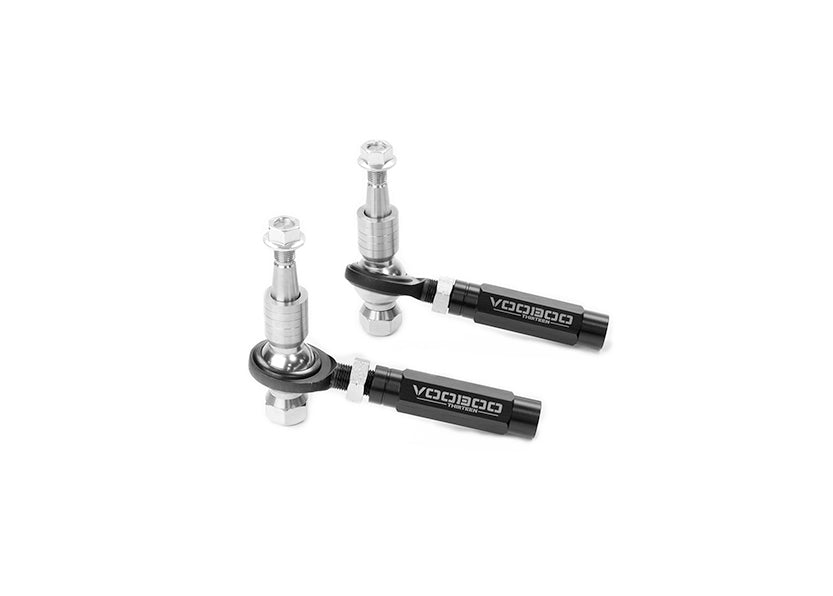

Voodoo13 is proud to offer our new S-chassis outer tie rods that allow for adjustable bump steer correction. With an excessively lowered car, the changes in the suspension can cause unwanted handling characteristics such as bump steer. Roll center will also be effected negatively when lowering a car which can cause the car to roll more when cornering. Bump steer is when the driver’s input is absent when steering the front wheels, and it steers itself during road imperfections due to improper suspension geometry. With our adjustable tie rods, you can fine tune the suspension geometry using the included spacers to dial out bump steer as well as relocate the roll center closer to OEM position which also reduces the stress on the ball joints in the steering system. To ensure binding isn’t a problem, our outer tie rod ends incorporate QA1’s high misalignment rod ends with 64° of misalignment angle.

Features

35mm longer than OEM at shortest adjustment, 54mm longer than OEM at max adjustment
Up to 25mm of bump steer adjustment in 5mm increments.
CNC machined tie rod shanks from heat treated 17-4 H900 stainless steel for superior 190ksi tensile strength and corrosion resistance.
2024 aluminum hex is extremely lightweight and 50% stronger than 6061-T6 aluminum.
Spacers machined from aerospace grade aluminum.
USA made QA1 PCYM chromoly steel heims are heat treated for strength and durability.
Allows for roll center and bump steer correction.

Notes

S13/S14/S15 with stock knuckles: Use Z32 or Z33/V35 inner tie rods.
S13/S14/S15 with modified knuckles such as drop knuckles or increased steering angle for drifting: Recommend to use S14 inner tie rods.

Fits

S13/S14/S15

Download installation instructions (PDF)

Warranty

Voodoo13 (Autoline Industries LLC) offers a Limited Lifetime Warranty to the original retail consumer against component defects and workmanship when used on light- truck and car applications under normal operating conditions.

This warranty does not apply to parts that have been improperly installed or wearable items such as, but not limited to, worn bushings or bearings unless proven to be defective from the manufacturer.
