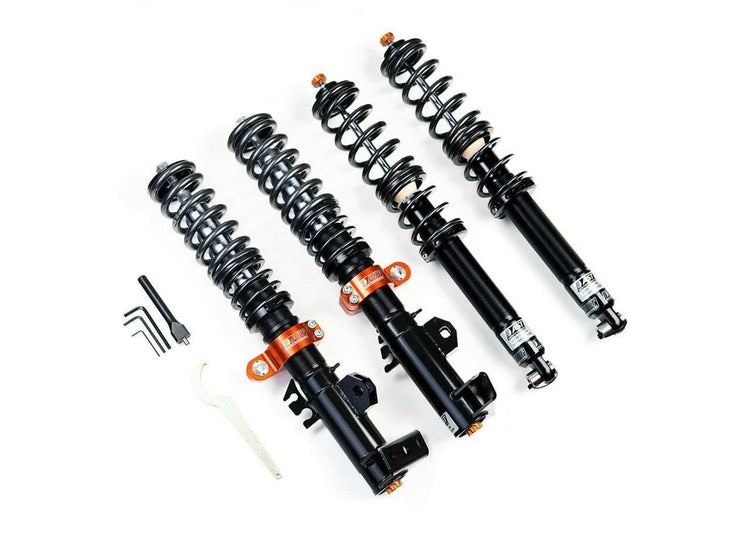

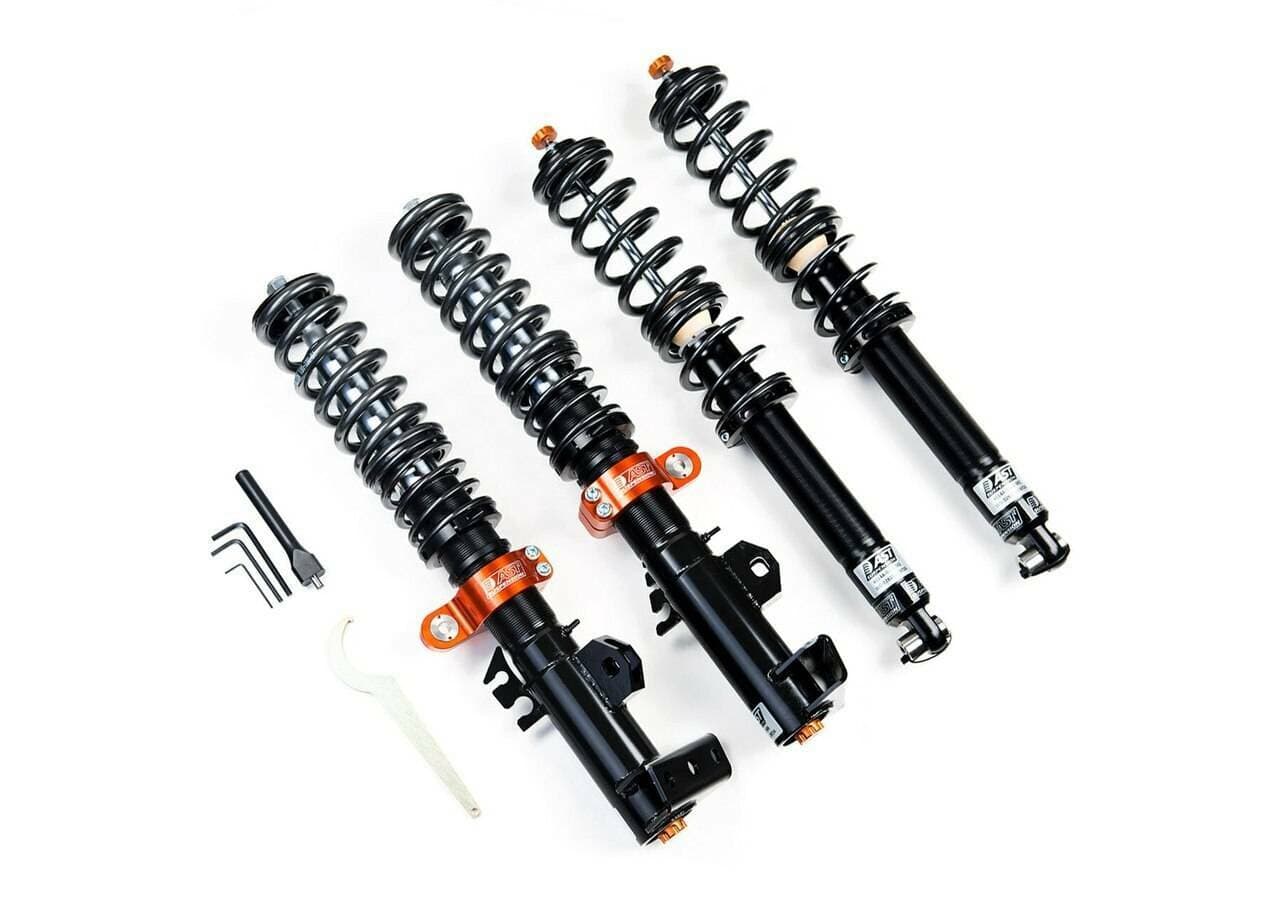

AST Suspension 5100 Series Coilovers (Excludes Front/Rear Top Mounts) (True Coilover) - 2003-2007 Subaru Impreza WRX TS 2.5 (GG/GD PCD 5x100)

Vehicle Fitment

• 2003 Subaru Impreza WRX TS 2.5 (GG/GD PCD 5x100)
• 2004 Subaru Impreza WRX TS 2.5 (GG/GD PCD 5x100)
• 2005 Subaru Impreza WRX TS 2.5 (GG/GD PCD 5x100)
• 2006 Subaru Impreza WRX TS 2.5 (GG/GD PCD 5x100)
• 2007 Subaru Impreza WRX TS 2.5 (GG/GD PCD 5x100)

Specifications

• Part Number: ACU-S6205S
• Product: AST 5100 Series
• Adjustment: 1 Way
• System: Coil Over
• Product Note: True Coilover
• Front/Rear Ratio: Front = 50% / Rear = 50%
• Strut/Shock Type: Front: Bracket McPherson strut / Rear: Bracket McPherson strut
• Model Years: 2003-2007
• Make: Subaru
• Model: Impreza WRX
• Chassis: GG/GD PCD 5x100
• Spring Kit: Included
• Top Mounts: Front / Rear Optional (If Available)
• Optional 1 Front Top Mounts: TMA-S01-C1-20F - Camber adjustable (25mm raised into body)
• Optional 2 Front Top Mounts: TMA-S01-A1-20F - Camber adjustable
• Optional Rear Top Mounts: TMA-S01-A1-30R - Camber adjustable
• Adjustable Front Droplinks Available? No
• Adjustable Front Droplinks Required? No
• Adjustable Rear Droplinks Available? No
• Adjustable Rear Droplinks Required? No
• DDP Pistons Included? No
• DDP Pistons Available? Yes
• DLC Coated Shafts Included? No
• DLC Coated Shafts Available? Yes
• QDC Included? No
• TUV Approved?
• Comments: Works with OE top mounts. For track spec top mounts need to be added.

The 5100 Series shock absorbers for the 2003-2007 Subaru Impreza WRX TS 2.5 (GG/GD PCD 5x100) utilize inverted / upside down technology. The inverted design is race proven technology and produces an extremely strong damper, providing better suspension geometry under heavy lateral and braking loads as seen in a road and track environment.

The 5100 Series shock absorbers give your car a better performance than the standard twin tube design. With the 5100 Series suspension you can adjust rebound with one knob. The adjust platform allows you to adjust the ride height of your car. AST suspension shock bodies are specially designed to keep maximum stroke, even with a lower ride height.

How a Monotube design works?

Monotube design is essential for performance. The oil and nitrogen are separated by a floating piston, and allows the use of a larger piston, increasing the damper performance and sensitivity felt by the driver, all this added together produces more grip, gives more control and driver feedback from your vehicle.

What is a rebound adjustment?

Rebound controls the rate of extension of your shock absorber. By changing the rebound you can directly change the characteristics of the vehicle.

Features

• Floating piston design with high pressure nitrogen means no cavitation around the piston.
• 14mm diameter internal shaft.
• 44.5 mm diameter shaft struts, inverted.
• Steel cylinder body shocks, inverted.
• High end, track ready suspension.
• Rebound adjustable ('Singles').
• Low friction seal.
• Adjuster knobs permanently mounted on the dampers.
• Designed to use OEM top mounts.
• Rubber bushings for 'eye' shock mounts.
• Includes springs.
• Rebuildable.
• Optional spherical top mounts.
• Optional DLC (diamond like carbon) coated shafts.
• Optional DDP (double digressive piston).
• Double Digressive Pistons are recommended for use on the non-driven wheels.
• 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
• RWD vehicles: DD pistons for both front axle struts/shocks.
• Optional custom valving.
