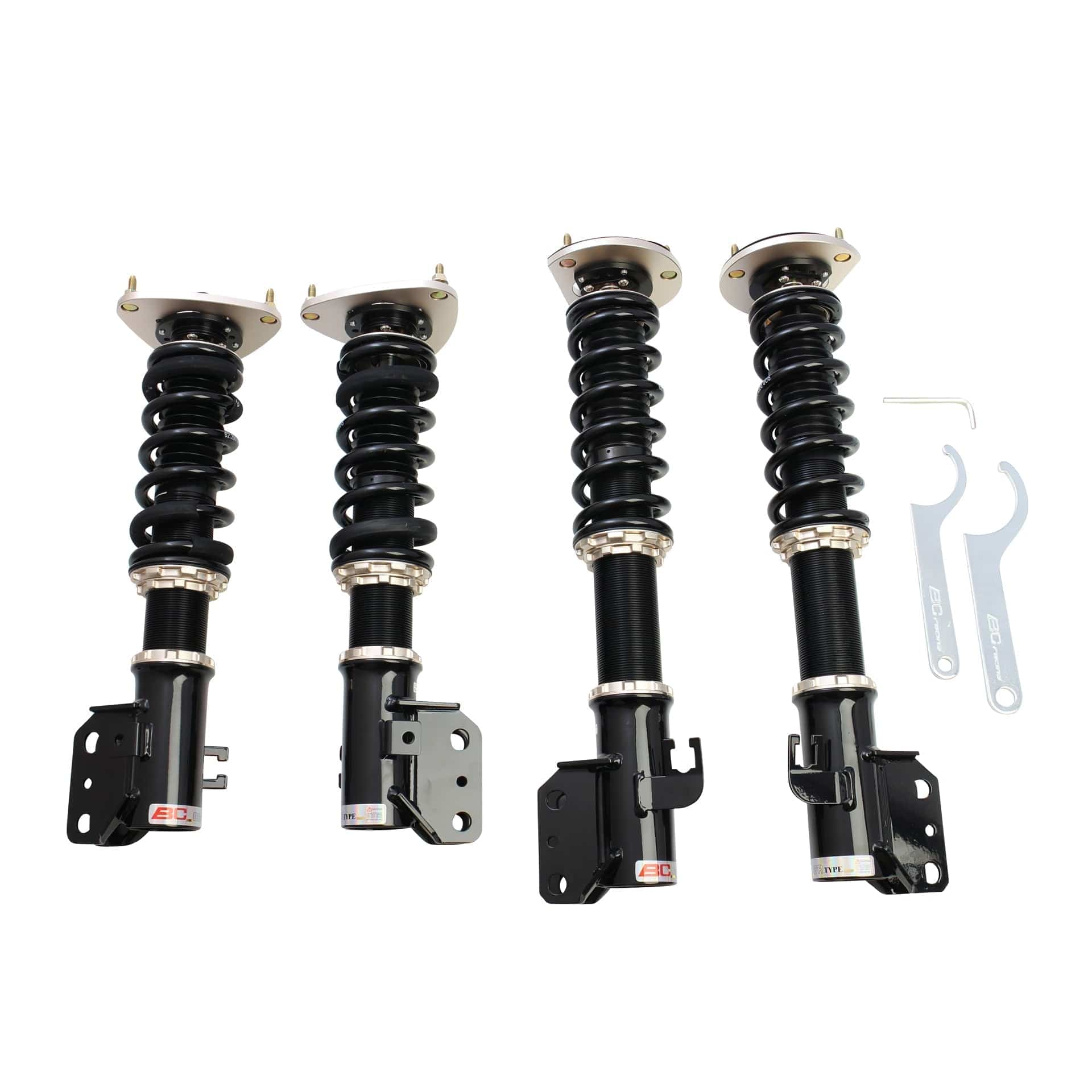

BC Racing HM Series Coilovers for 1997-2001 Subaru Impreza WRX (GC6/GC8) F-01-HM
BC Racing HM Series Coilovers for 1997-2001 Subaru Impreza WRX (GC6/GC8) F-01-HM

*Product images may not represent the actual SKU.

BC Racing

SKU: F-01-HM

BC Racing HM Series Coilovers for 1997-2001 Subaru Impreza WRX (GC6/GC8)

$2,535.00 $2,750.00 On Sale
Built to Order
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Check if this fits your vehicle

Select a Vehicle
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Fits your vehicle

Change Vehicle
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Does not fit your vehicle

Change Vehicle

Authorized Retailer
100% Authorized Retailer.
Free Shipping
Orders $250+ ship for free.*
Best Price Guarantee
Lowest price on all products.
0% APR Financing
Buy now, pay later.

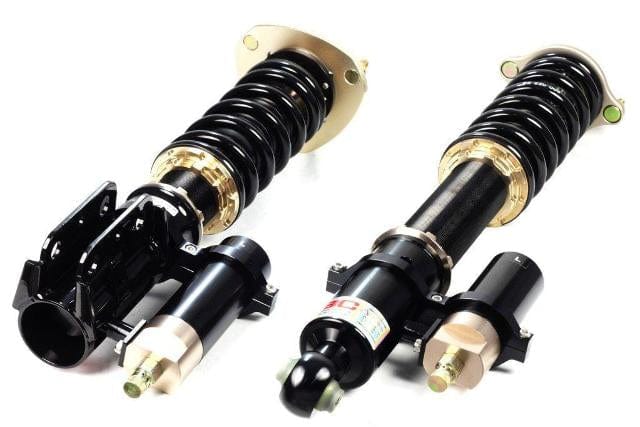

BC Racing HM Series Coilovers for the 1997-2001 Subaru Impreza WRX (GC6/GC8) get its great qualities from a combination of two previous BC Racing Coilover Systems - the RM Series and ER Series. The HM Series uses an inverted mono-tube damper, just like the RM Series, but adds the independent compression and rebound adjustment of the ER Series. The external reservoirs house the secondary damping piston, and allow for a higher oil capacity with the added benefit of increased thermal dissipation.

For vehicles with front and rear McPherson struts, the HM Series comes standard with an inverted mono-tube damper. The damper has a steel braided line exiting the top of the damper leading to the external reservoirs that can be remotely mounted on the chassis for easy adjustment.

Vehicles with a Double A-Arm suspension come with upright dampers. These dampers have steel braided lines or solid stems that exit the damper at the bottom and lead to the external reservoir that can be mounted under the chassis or on the shock body itself.

Not all vehicles allow for inverted front and rear dampers. In such cases, an upright mono-tube damper will be supplied. The braided line/hard stem for the external reservoir exits the base of the damper when not inverted.

For Subaru's and other McPherson suspension vehicles that are heavily tracked, the BC Racing HM Series Coilover System is definitely worth checking out!

Features

  • Highly customizable
  • Swift Springs come standard on HM Series Coilovers
  • Inverted mono-tube damper
  • Linear twin-piston design
  • Height adjustment independent of spring compression
  • 30-clicks of compression adjustment via the external reservoirs
  • 30-clicks of rebound adjustment from the bottom of the damper
  • Front and rear camber plates standard on all applicable kits
  • Front and rear pillowball standard when camber plates do not apply
  • Custom spring rates available
  • Custom valved to match the drivers requested spring rates
  • 2 year warranty against manufacturing defects
  • Fully rebuildable with replacement parts
Part Number F-01-HM
Part Name HM Series Coilovers
Vehicle 1997-2001 Subaru Impreza WRX
Chassis Code GC6/GC8
Front Springs (kg/mm) 62-180-10kg
Rear Springs (kg/mm) 62-220-8kg
Front Swift Springs (kg/mm) 62-178-X
Rear Swift Springs (kg/mm) 62-228-X
Front Camber Plates Included
Rear Camber Plates Included
  • 1997 Subaru Impreza WRX (GC6/GC8)
  • 1998 Subaru Impreza WRX (GC6/GC8)
  • 1999 Subaru Impreza WRX (GC6/GC8)
  • 2000 Subaru Impreza WRX (GC6/GC8)
  • 2001 Subaru Impreza WRX (GC6/GC8)

All handling times are estimates provided by the manufacturer.

In-Stock Products: 1-3 business days

Products that are in-stock and do not require customization ship the same business day if ordered before 2pm ET. Orders placed after 2pm ET will ship the following business day.

Out of Stock: About 2-3 weeks

If an item is out of stock, the average lead time is 2-3 weeks before shipping.

Custom Builds: About 3-4 weeks

Custom builds include any combination of the following options:

  • Custom spring rates
  • Extreme Low
  • Swift Springs
  • Upper Mount Changes
  • DS Series
  • ER Series
  • HM Series
  • RM Series
  • ZR Series

Custom spring rates are available at no additional cost. Rates up to 20K are available in both BC Racing springs and Swift Springs. Rates ranging from 20K to 40K will require Swift Springs.

Transit Time: 1-6 days

All BC Racing Coilovers ship UPS Ground from BC Racing North America located in Oviedo, FL. The map below shows the average time it takes for the shipment to arrive at its destination.

BC Racing North America's warranty period is two years against manufacturing defects if ordered on or after November 17, 2021. If BC Racing NA deems a part defective, BC Racing will send a replacement for that specific part. All warranty claims must be sent directly to BC Racing North America. We are not able to handle warranty claims.

How to file a Warranty Claim

Email the following information to

  1. Copy of the order receipt
  2. Pictures of the failed part installed on the car
  3. Detailed information on what car/corner how it happened
  4. Your mailling address and phone number

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.
