D2 Racing Air Struts with VERA Essential Management - 2006-2015 Volkswagen Passat FWD/AWD (B6/B7)

Name: D2 Racing Air Struts with VERA Essential Management - 2006-2015 Volkswagen Passat FWD/AWD (B6/B7)
Brand: D2 Racing
Price: 2635.0 USD
Availability: InStock

$2,635.00 ~~$3,100.00~~ On Sale

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Warranty
Important Notes

Description

The D2 Racing VERA Essential Management system for the 2006-2015 Volkswagen Passat FWD/AWD (B6/B7) provides entry level manual air management with everything needed for a simple install. Includes all parts necessary for a complete air suspension installation when paired with D2 Racing Air Struts.

D2 Racing Air Struts allow for adjustment through both the lower mount and inflatable sleeve or double bellow style air bellow which allows for ultimate range of ride height adjustment. Each air shock features a 36-way damping adjustable design for fine tuning of ride quality and responsiveness.

Product Notes

This product is made to order. Once the order is placed, it cannot be modified or canceled.
Pillowball mounts are included for select vehicle applications.
Camber plates are not included.

Features

D2 Racing Air Suspension systems enables users to change air pressure and can also adjust the maximum and minimum ride height freely to match up to a body kit to get the desired ride height.
Designed for easy bolt-on installation.
D2 Racing Air Suspension systems have 36 levels of adjustable dampening as well as ride height adjustable.
The adjustment range of ride height is between 0 and 120/200mm. (based on different applications)
The speed of lowering and raising vehicle ride height is 4-7 seconds.

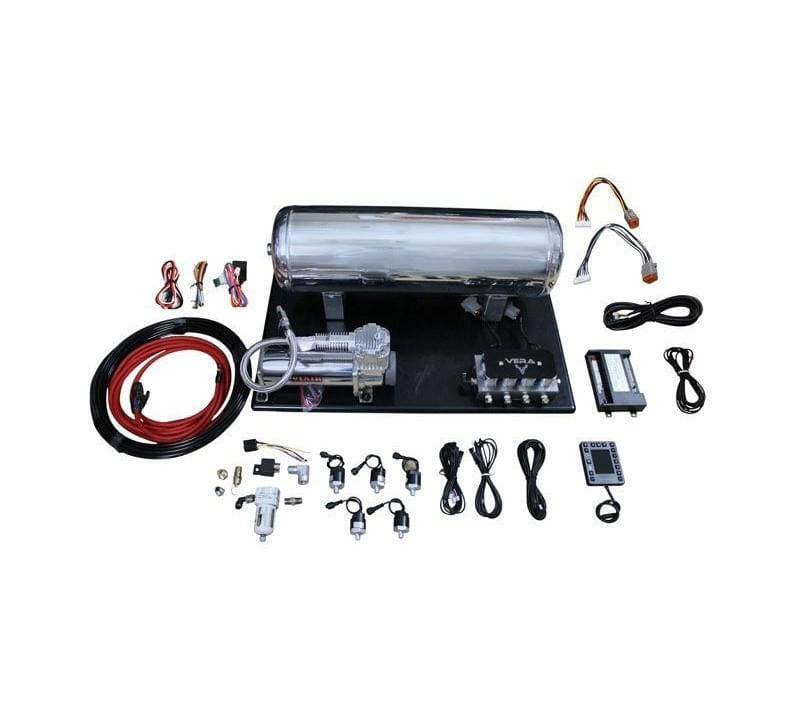

Kit Includes

D2 Racing Air Struts
Dual pneumatic paddle valve controllers (Front and Rear)
Dual needle 220 PSI pressure gauge with backlit display
Powder coated Silver 4 gallon steel tank
Chrome VIAIR 444C
150-175 PSI pressure switch
60' DOT 1/4 inch air line
All necessary fittings, power cables and plugs

Specifications

Part Number	D-VO-32-ARE
Part Name	D2 Racing Air Struts with VERA Essential Management
Vehicle	2006-2015 Volkswagen Passat FWD/AWD
Chassis Code	B6/B7
Damping Adjustable	Yes - 36 Way
Height Adjustable	Yes
Front Top Mounts	No
Rear Top Mounts	No
Front Camber Plates	Not Applicable
Rear Camber Plates	Not Applicable
Part Note 1	Includes Wagon models

Vehicle Fitment

Warranty

One Year Wear and Tear Warranty

Wear and tear items such as bushings, ball joints, shock dampening properties/leakage are covered for the original purchaser for one year from date of purchase on the originally installed vehicle.

D2 Racing Warranty Links

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.
