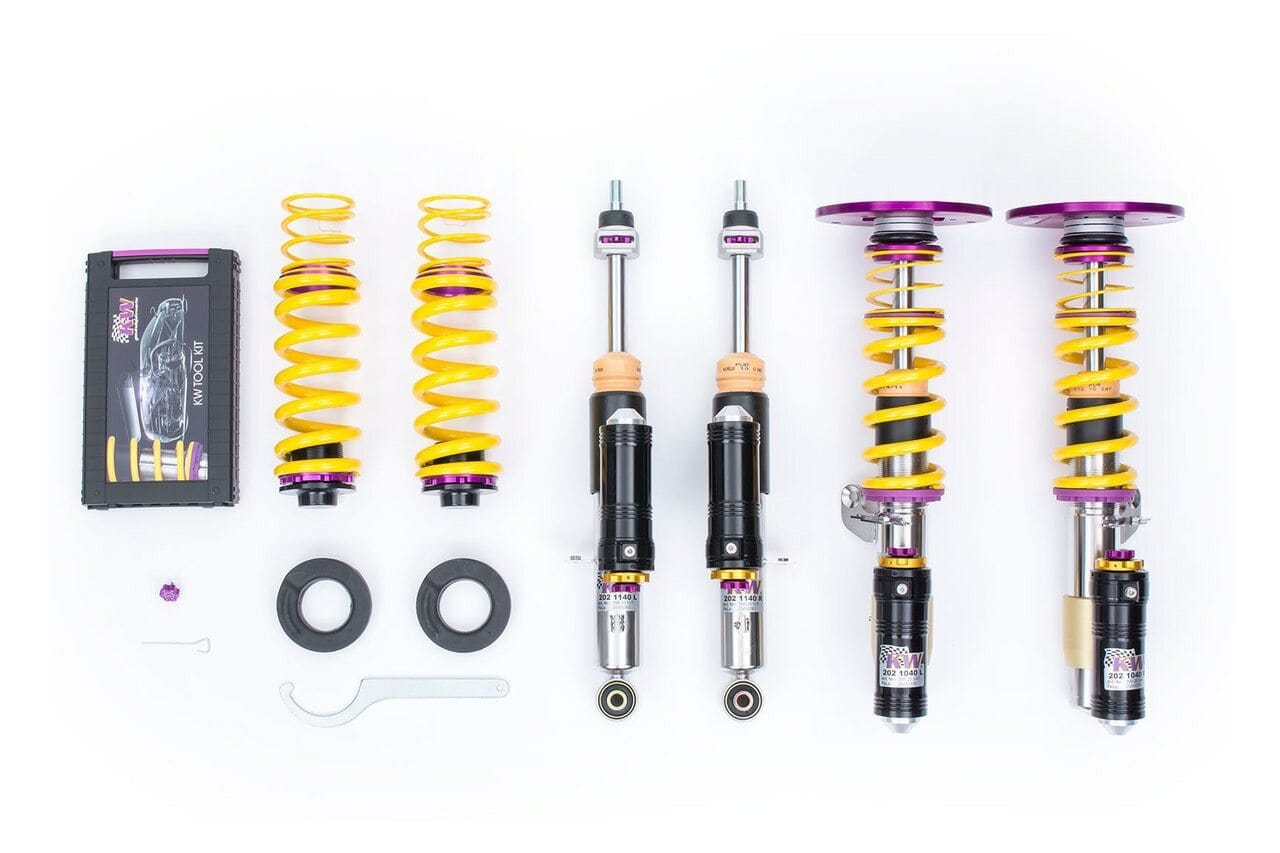

KW Clubsport 2-Way Coilover Kit - 1990-1996 Nissan 300ZX

Name: KW Clubsport 2-Way Coilover Kit - 1990-1996 Nissan 300ZX
Brand: KW Suspension
Price: 4354.0 USD
Availability: InStock

$4,354.00

Out of Stock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Important Notes

Description

KW Clubsport 2-Way Coilover Kit for the 1990-1996 Nissan 300ZX were developed for customers, who demand a better handling car when participating in track day events, but also require an official road approval to use their car every day. The setup was specifically designed for the Nordschleife using track day tires. By using the optional available adjustable top mounts, the suspension geometry can be adjusted to the requirements of tires and the intended use. The mentioned adjustment options combined with the independently adjustable rebound and compression Dampening technology allow individual setup adjustments according to the vehicle load, tire characteristics and different track conditions. The W Clubsport 2 Way Coilover Kit meets every demand regarding a coilover for the usage on the road and the race track. KW Clubsport Coilovers guarantees excellent handling, best performance, highest agility and fantastic lap times.

Standard Features

KW suspensions clubsport coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany
Each damper is dyno tested to ensure accuracy and preset to our recommended shock settings before being released for delivery.
Solid aluminum unibal top mounts improve steering feedback by minimizing deflection while providing camber adjustability when applicable.
Road legal motorsports technology featuring independent rebound and compression adjustability with application specific track focused linear race springs and matched damper tuning.
TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.
TVC-A (Twin Valve Compression - Adjustable) technology - patented compression valve allows fine tuning of low speed. During sudden high piston speeds, the low speed needle and main valve blow-off feature open to maximize flow.
Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
Inox-Line Stainless Steel - Truly Permanent Corrosion Resistance. Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan.

Specifications

Part Number	35285809
Part Name	Clubsport 2-Way Coilover Kit
UPC	847691003909
Vehicle	1990-1996 Nissan 300ZX
Front Lowering Rate	0.8 - 1.6 in.
Rear Lowering Rate	0.6 - 1.4 in.
Height Adjustable	Yes
Damping Adjustable	Yes
Adjustment Type	2-Way
Front Spring Rates	9.2 Kg/mm (515 lbs/in)
Rear Spring Rates	8.21 Kg/mm (460 lbs/in)

Vehicle Fitment

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.
