Moton Suspension 3 Way Motorsport Coilovers (Non Coilover) - 2000-2006 BMW M3 3.2 (E46 / Front 0' Camber)

Name: Moton Suspension 3 Way Motorsport Coilovers (Non Coilover) - 2000-2006 BMW M3 3.2 (E46 / Front 0' Camber)
Brand: Moton Suspension
Price: 8919.07 USD
Availability: InStock

$8,919.07

Out of Stock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Important Notes

Description

The Moton 3 Way Motorsport suspension for the 2000-2006 BMW M3 (E46) is designed for the professional racer. This ultimate suspension system is by far the finest quality and best handling suspension system on the market today.

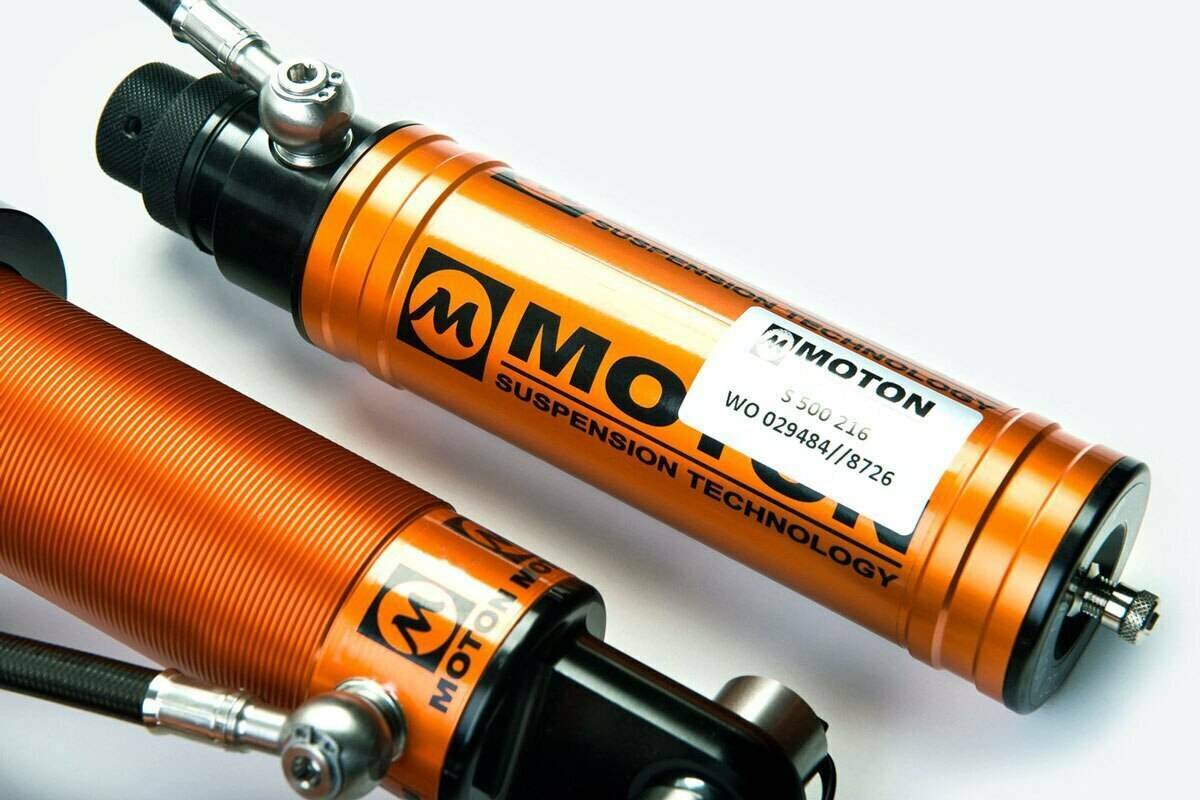

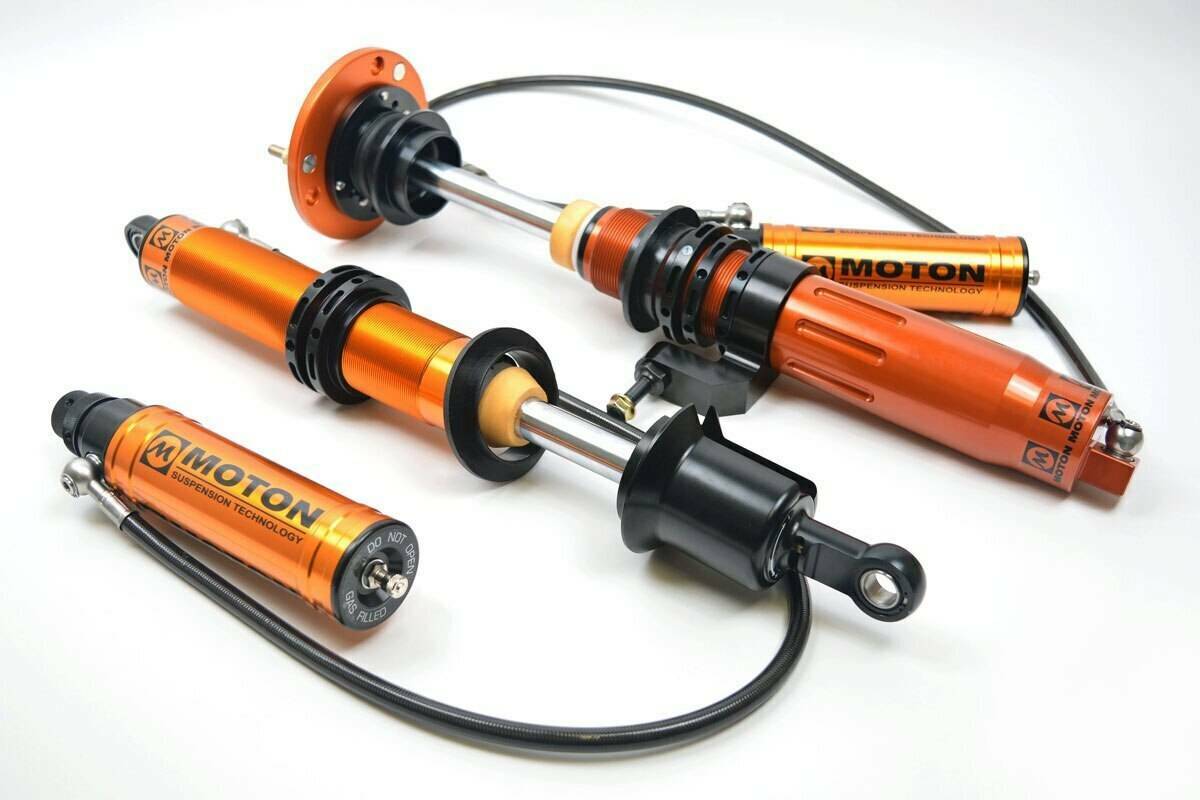

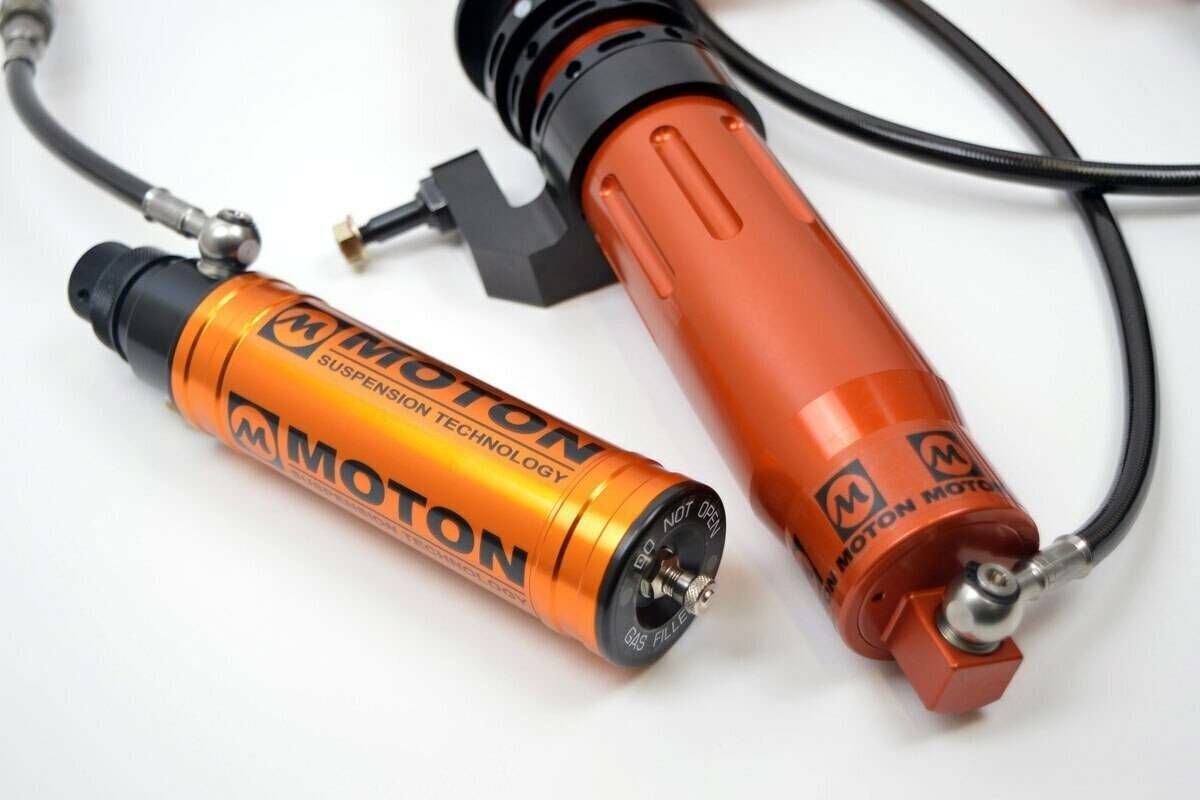

Featuring remote reservoirs for superior fluid temperature control, quick release hydraulic lines (on most models) for easy installation, separate compression and rebound damper valving adjustment and height adjustable spring perches, this kit is beyond the more common coilover systems on the market. If your driving can benefit for the ultimate in suspension tuning, then this kit is for you.

Benefits

Improved platform stability
Improved traction, higher grip level
Improved curb stone and bumpy track control
Improved tire wear over the complete race distance
Easy to adjust and work with
Every single adjustment done is very noticeable to the driver
Proven reliability
Rebuildable/Revalveable

Features

Separate high speed bump (15 positions), low speed bump (6 positions) and rebound (15 positions) adjustments
Unique blow off valve system in canister to totally control curb stones and bumpy track conditions
Large piston rod diameter for more fluid displacement
Adjustable gas pressure for added lifting force
Large main piston for quick response
No preloaded valve stacks needed for low speed damping control
Swivel banjo hoses for easy installation of remote reservoirs
DDP (double digressive pistons) are available as an option

Double Digressive Pistons are recommended for use on the non-driven wheels
4WD/FWD vehicles: DDP for both rear axle struts/shocks
RWD vehicles: DDP for both front axle struts/shocks

Specifications

Part Number: M 505 155
Product: MOTON 3 Way Motorsport (Non Coilover)
System: Alloy front 0' camber, NCO rear
Model Years: 2000-2006
Make: BMW
Model: M3
Chassis: E46
Vehicle Note: Coupe/Convertible
Coil Springs: Included
Top Mounts: Front/Rear Top Mounts Included

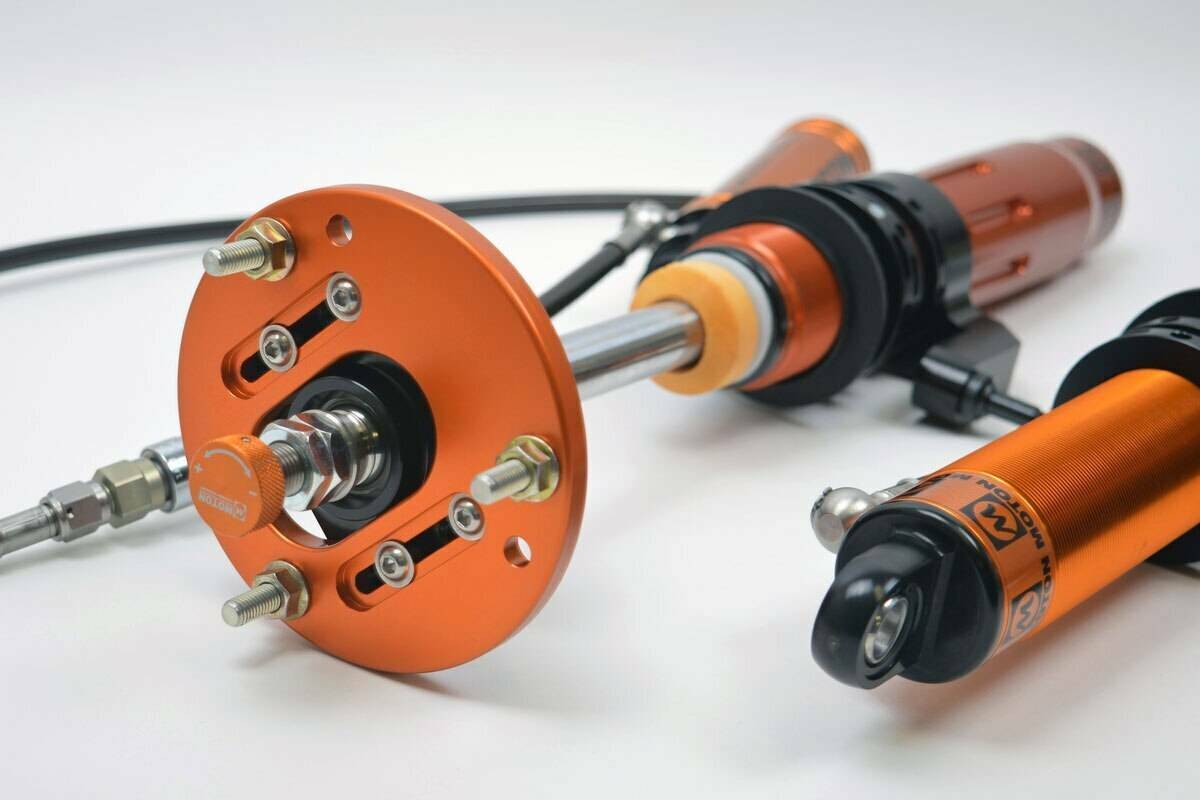

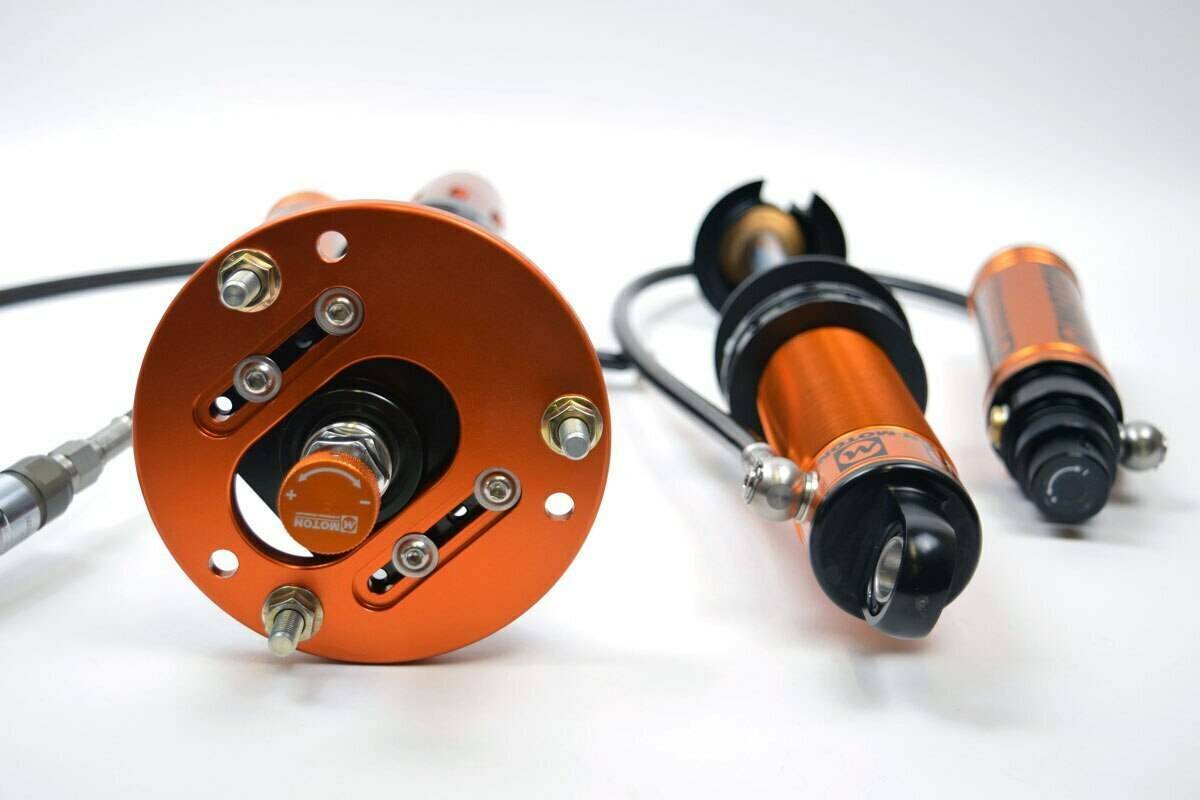

Front Top Mounts: Camber Adjustable
Rear Top Mounts: Solid - No camber adjustment
Adjustable Droplinks Needed? Yes
Adjustable Droplinks Available? Part Number: DLA-BMW1-S
DDP Pistons Included? No
DDP Pistons Available? Yes
QDC Included? No (Front and Rear Optional)
QDC Part Number: 16HS-DB-AS-001
TUV Approved?
Comments:

Vehicle Fitment

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.
