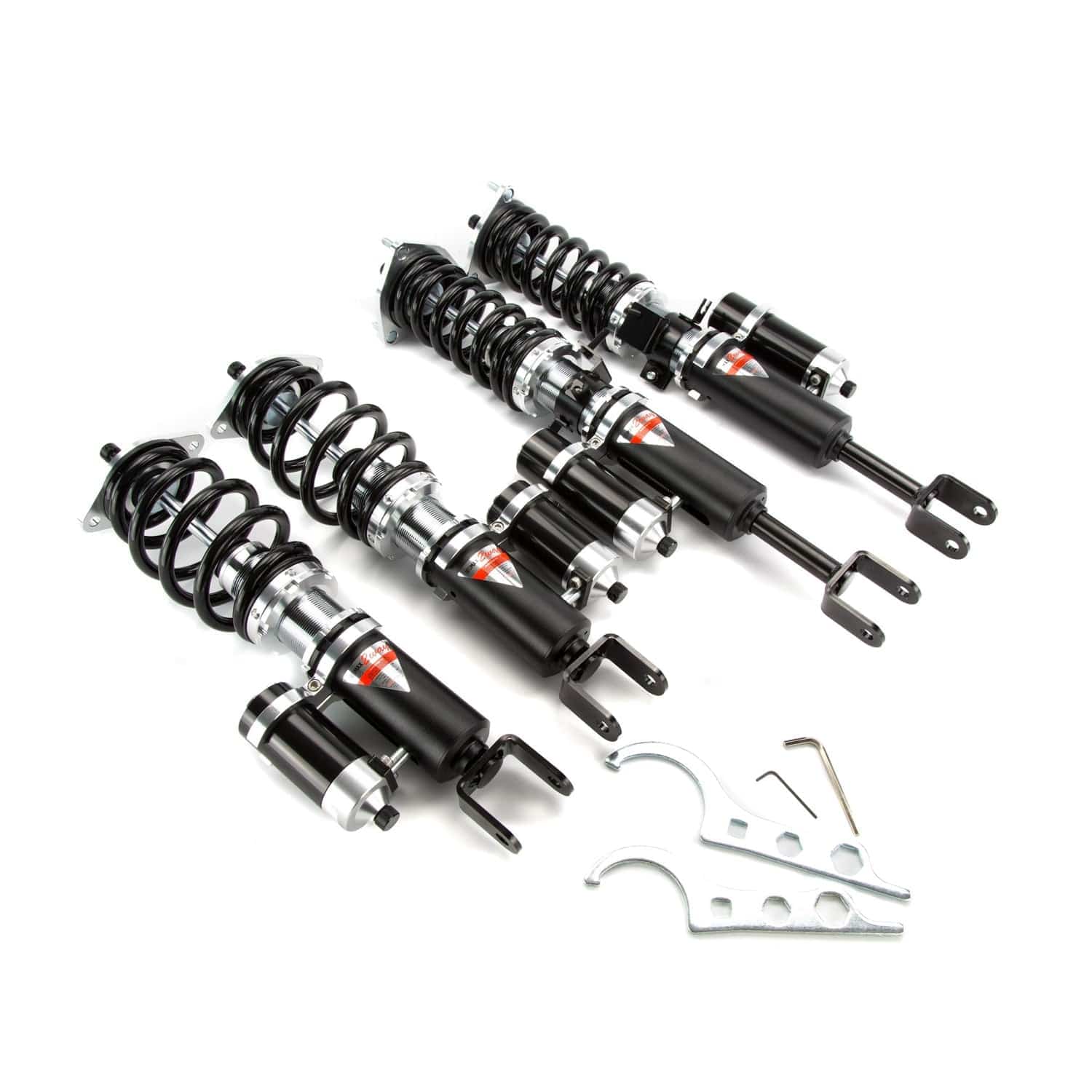

Silvers race proven NEOMAX 2-Way coilovers for the 1990-1999 Toyota MR2 (SW20/SW21) feature both rebound and compression dampening adjustment as well as large capacity external reservoirs. Silvers NEOMAX 2-Way coilovers are a mono-tube shock design that are height adjustable, and come with an 18-month limited manufacturer's warranty.
Features
- Adjustable T6 6061 front camber plates on most MacPherson style applications.
- Koyo Japan Radial Bearing upper spring perch standard on all applicable McPherson applications. This eliminates spring bind, noise, and gives improved driver feedback.
- Individual compression and rebound adjustment. 40 clicks of rebound adjustment, and 24 clicks of compression adjustment via the external reservoir.
- High strength JIS G3445-STKM13C (DIN2393-ST44-2) carbon steel 52mm diameter seamless shock tube.
- 44mm piston with digressive style valving characteristics provides maximum low speed damping response for ultimate performance while simultaneously giving a comfortable ride.

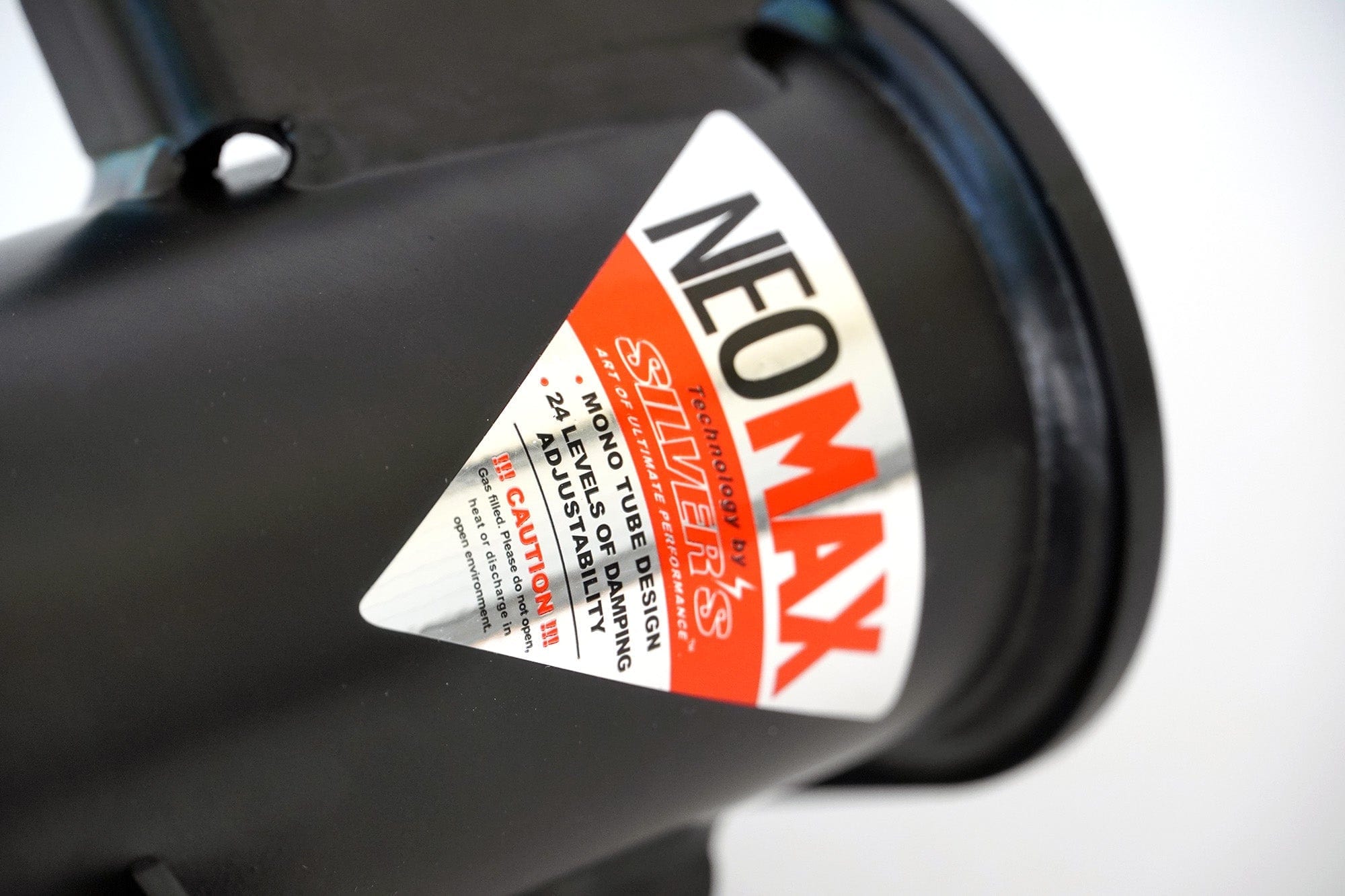

- Mono-tube shock design - Increases shock oil capacity as well as displacement over twin tube designs for maximum performance.
- High viscosity IP F.A. 5W damper oil ensures the best efficiency of shock-absorption and dampening control.
- Height adjustment is provided by the lower bracket which prevents the need to adjust the spring perch or pre-load, offering the maximum possible travel regardless of height setting.

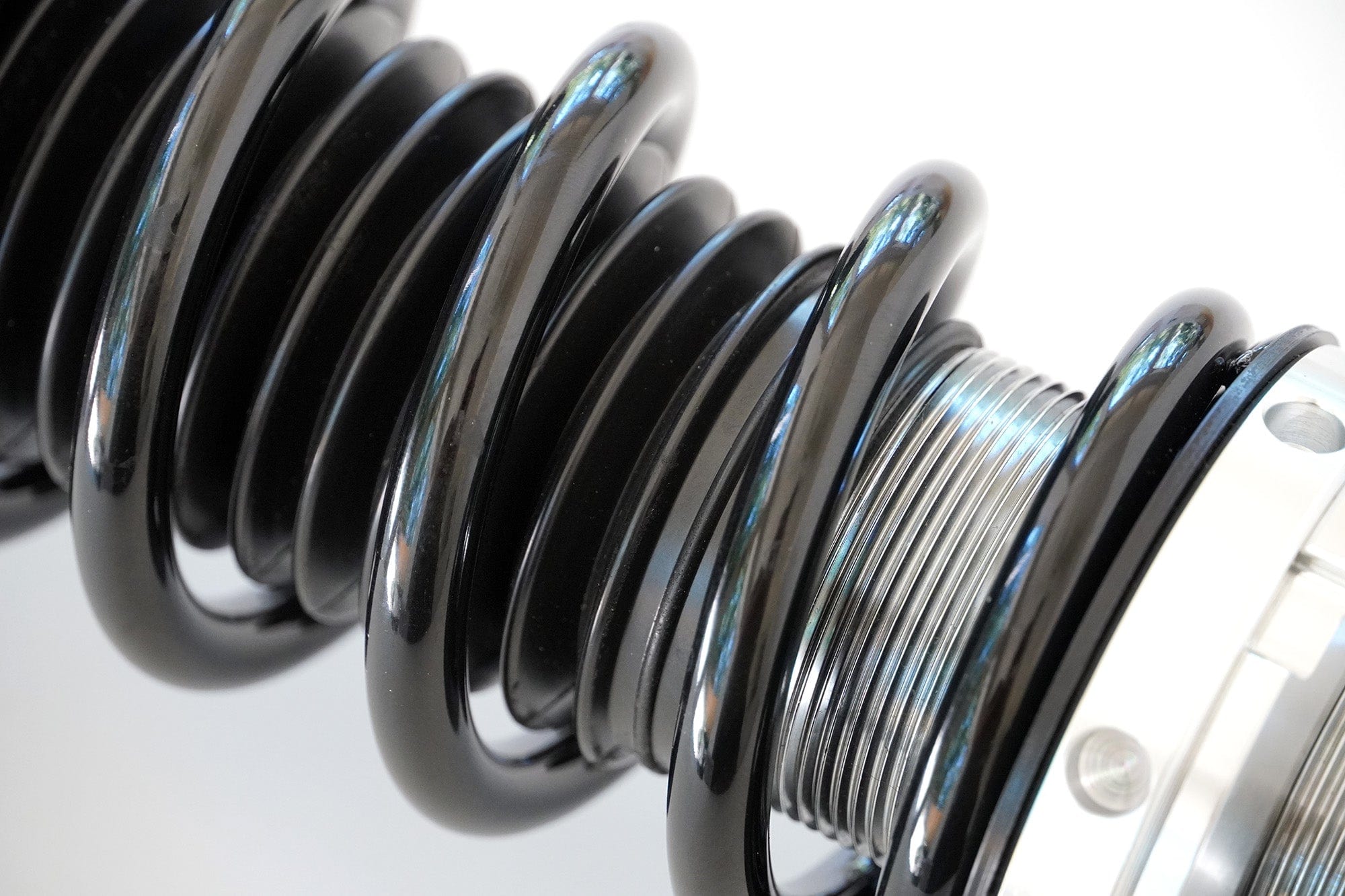

- Cold-bent springs made from high strength SAE9254 steel which keeps stable elastic modulus.
- Powder coated steel lower brackets matching all factory brake line and ABS wire tabs for ease of installation.
- Anodized T6 6061 aluminum lower mounts for multi-link suspension systems to lower unsprung weight.
- 18 Month limited manufacturer's warranty.
Independently Adjustable
Our race proven NEOMAX 2-Way kits offer 40 clicks of independent rebound via the top of the shock and 24 clicks of compression adjustment via the external reservoir. Being able to adjust rebound and compression independently allows you to fine tune your vehicle over harsh bumps that may be unsettling the car, but you can also fine tune the dive and pitch of the car to help improve turn-in and exiting behavior on the track.
Large External Reservoir
Our NEOMAX 2-Way kits use large external reservoirs, which allow for higher oil capacity which aids in cooling and keeps the shock performing at high ambient temperatures while being put through the paces on track. The large reservoirs also allow for a higher volume of nitrogen which in turn requires less overall pressure for the shock to perform as it should. This helps with extended stroke situations such as rumble strips or sudden drops with a tire dropping off track.
Fully Height Adjustable
Our coilovers are fully height adjustable via the lower mount with no need to change pre-load and sacrifice shock stroke. Simply loosening the lower locking ring and rotating the entire coilover, you will be able to easily fine tune your ride height or weight distribution for corner balancing on track applications.

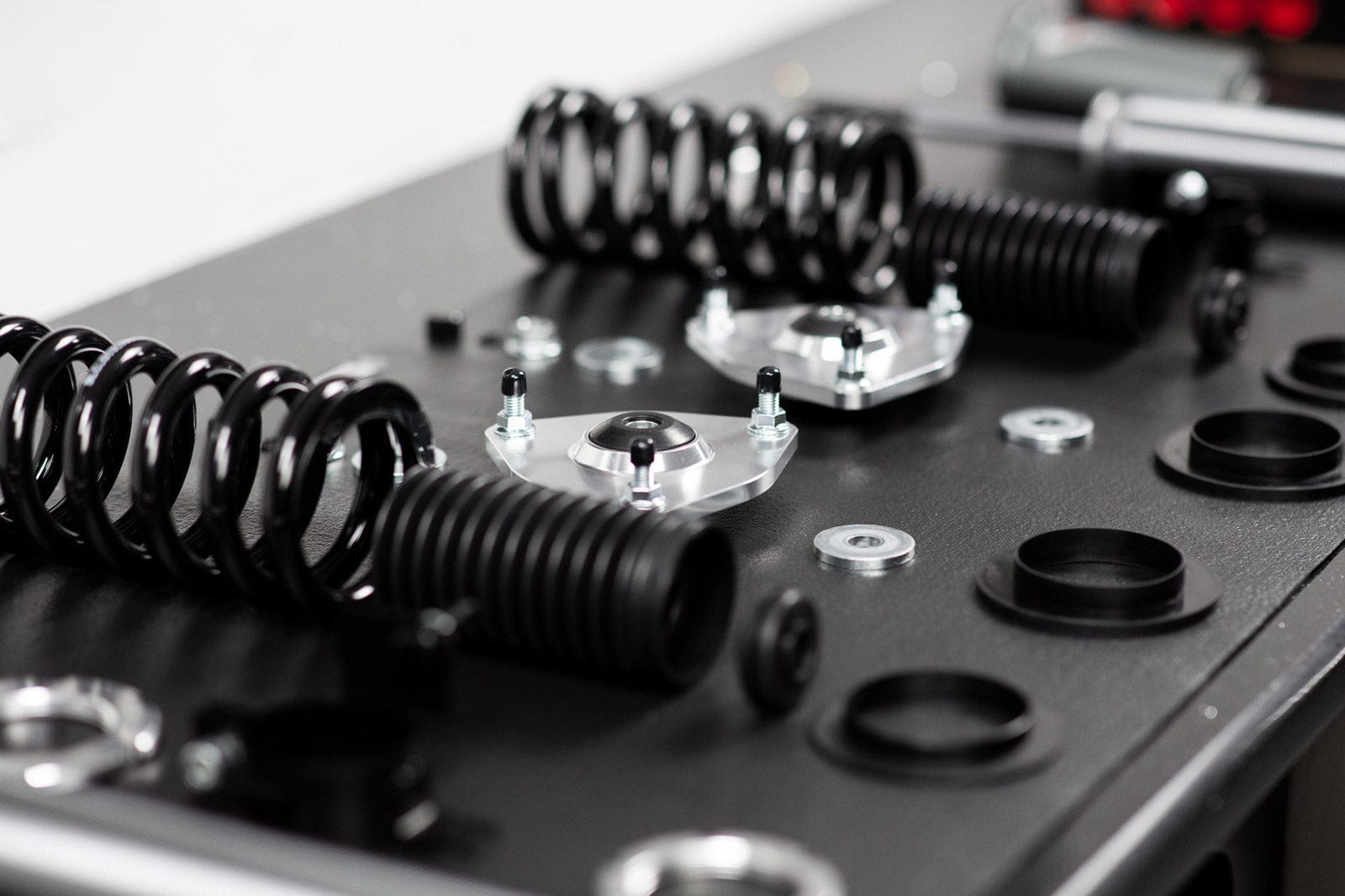

Adjustable Camber Plates
Our camber plates are made from T6 6061 Aluminum and are protected by an anodized finish. They come standard on the front of any McPherson style strut application and are designed to offer up to 3 degrees of camber adjustment at any ride height to dial in your alignment.

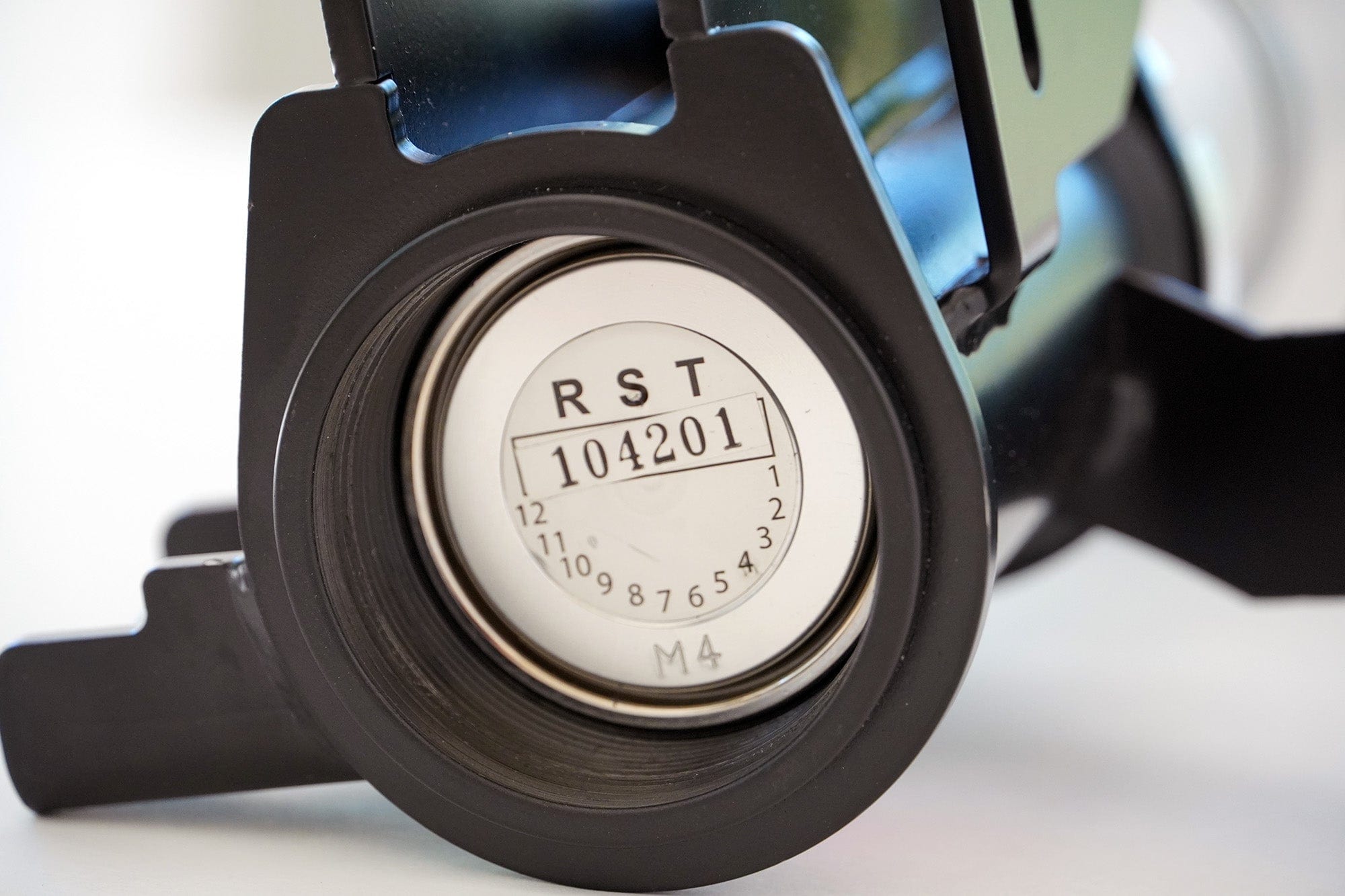

Pillowball Top Mounts
Our pillowball mounts are comprised of two main parts: A SUJ2 Steel bearing, and a Chromoly Steel 2 piece case. Pillowball mounts provide bind free operation and precise feedback to the driver.
Carbon Steel Shock Body
Our shock bodies are made from ultra high strength JIS G3445-STKM13C (DIN2393-ST44-2) carbon steel and are electroless nickel plated for resistance to corrosion and fatigue in harsh climates.
Linear Piston Design
We use a 44mm Linear type piston in our shocks. This style piston gives both excellent track benefits as well as maintains ride quality. Every single shock is handle assembled, and dyno-tested to insure dampening and compression valving is within 5% variation from side to side. There is no random inspection or tests, every single shock is dyno-tested. In the event the shock fails, the internals are discarded and it goes back to the assembly room.
Large Hardened Steel Shafts
We use the largest diameter necessary hardened steel with chrome plating for our piston shafts. With extensive research and development we have the perfect material and diameter needed to have the proper strength necessary to retain lateral rigidity and not bend or bind under heavy loads, which leads to premature wear and lowering piston travel. This provides the perfect combination of strength and weight savings.

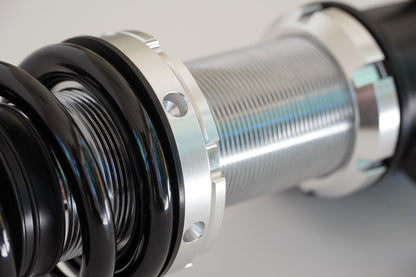

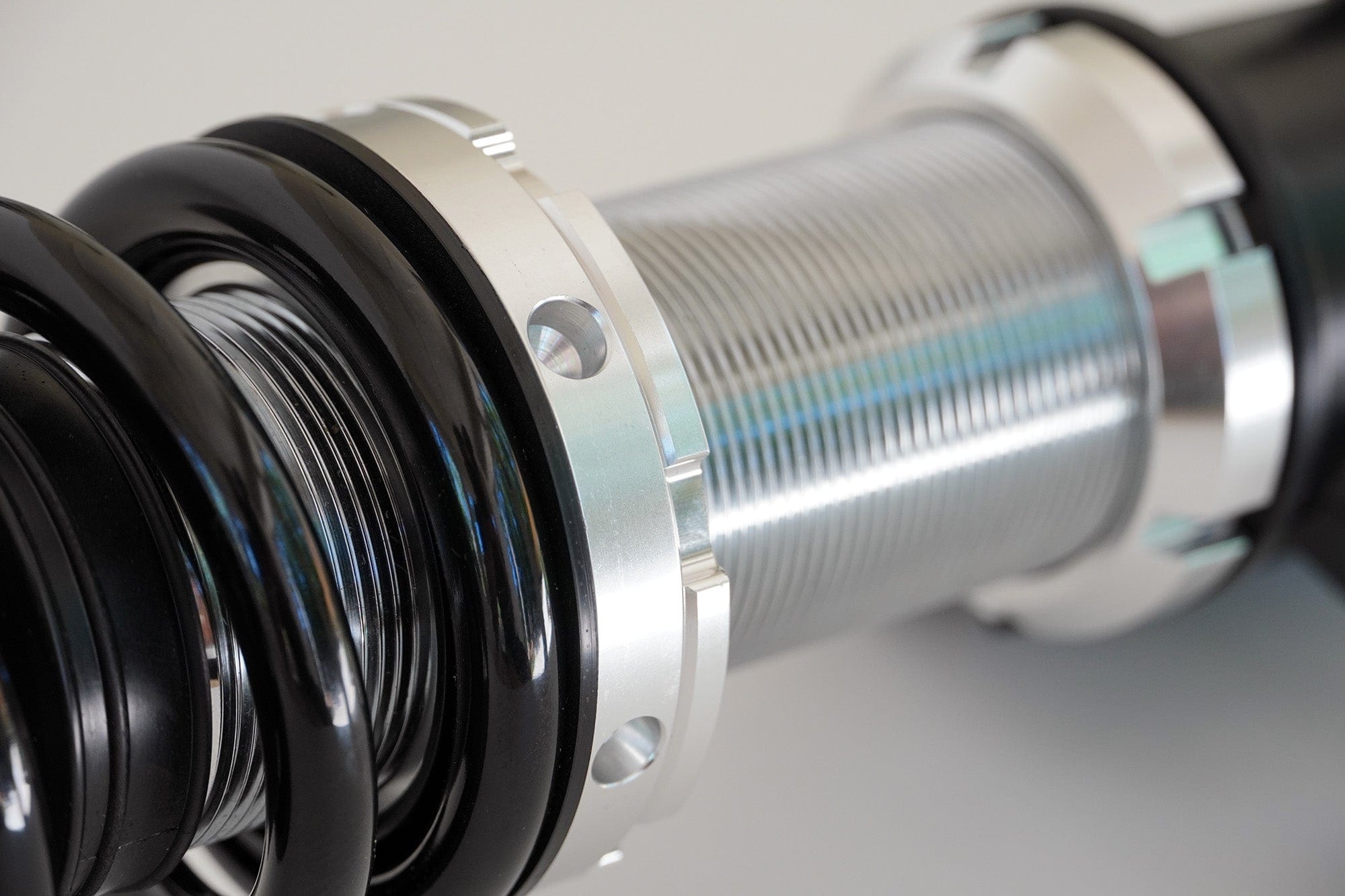

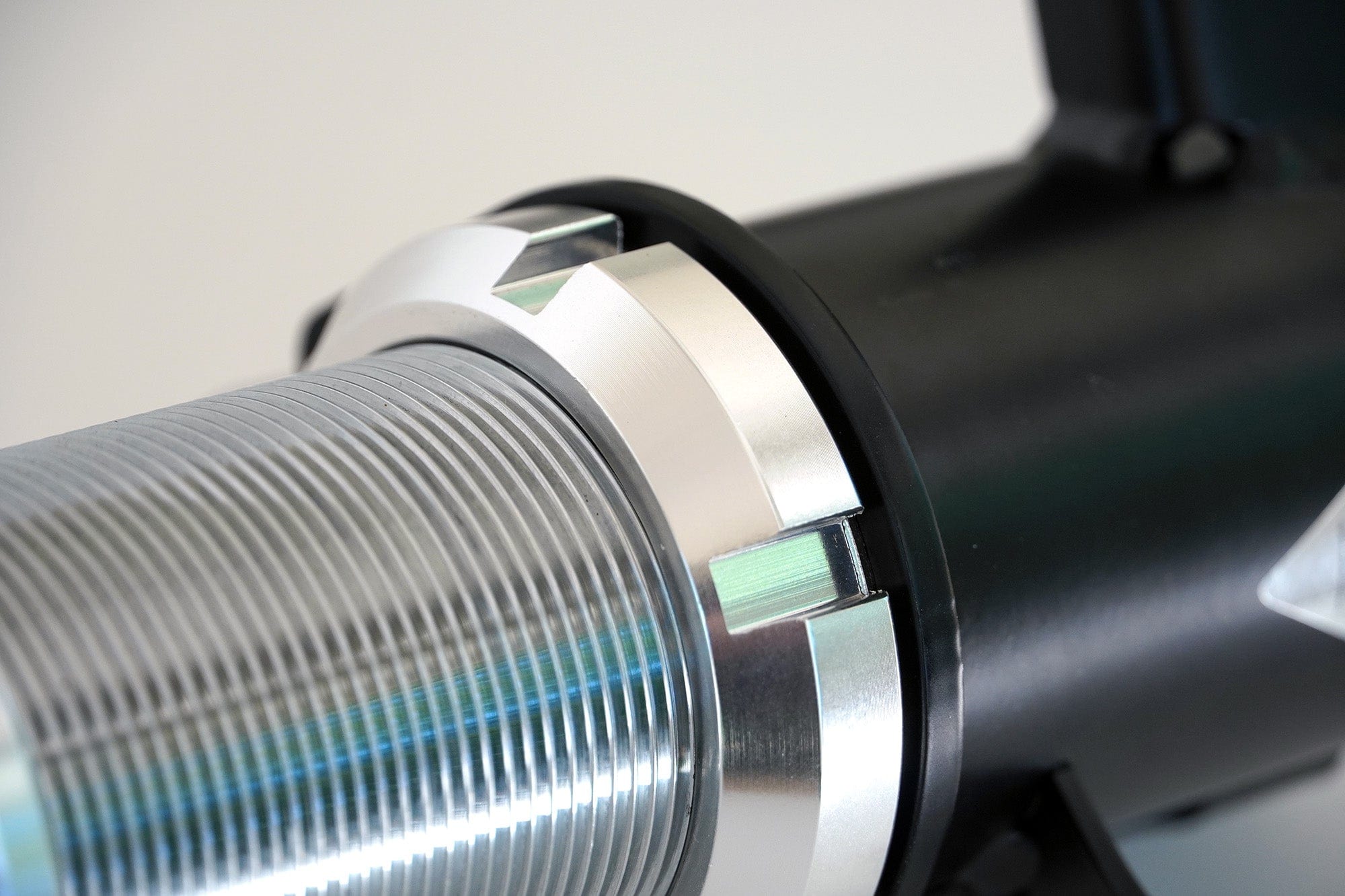

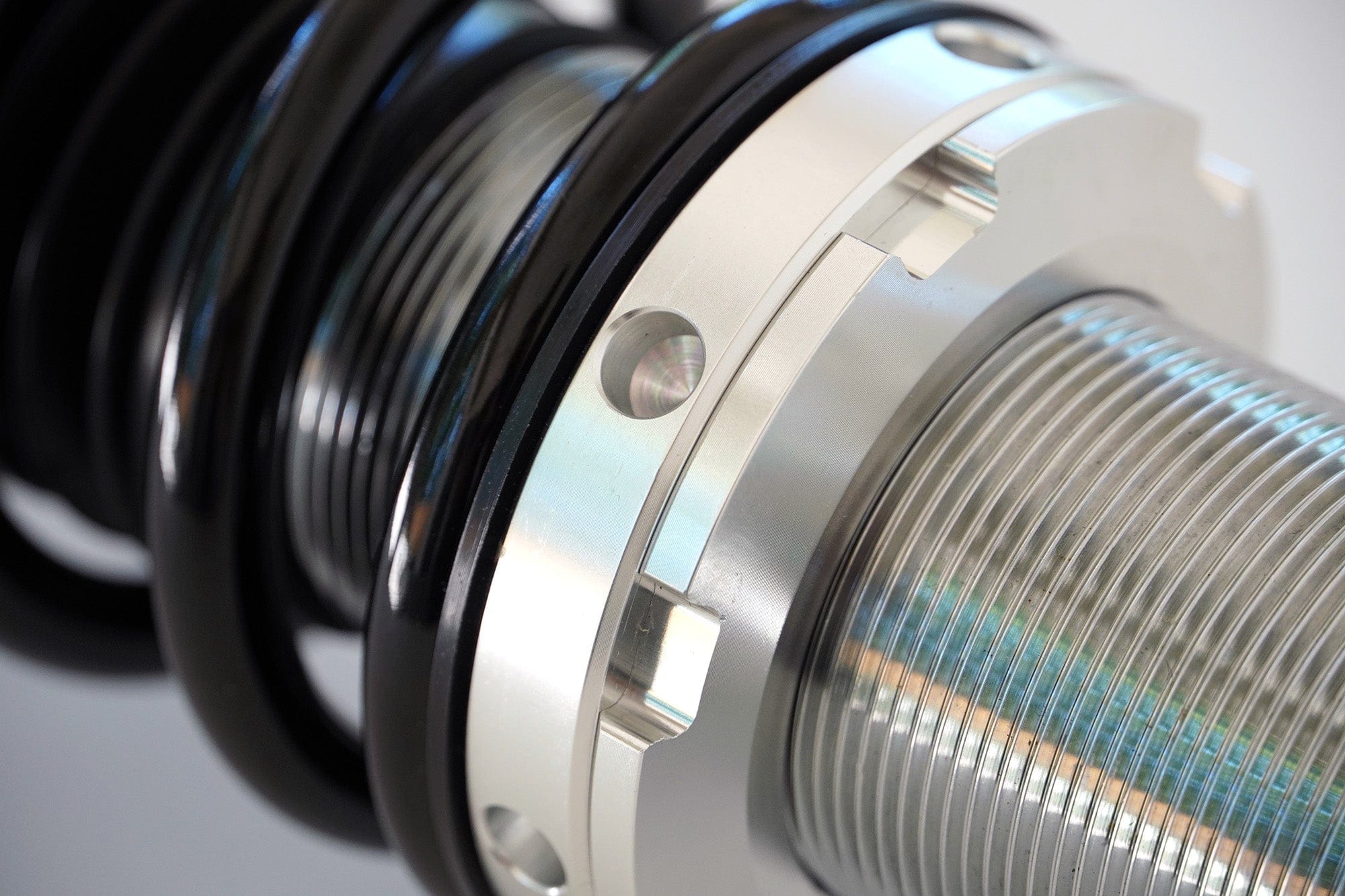

Unique Locking Collars
Our locking collars have a specific unique design compared to the other brands on the market. They perform the same as any other locking collar, though with the lower spring perch having dimples instead of slots you do not have to worry about the top spanner wrench slipping and sliding up or down the perch when making necessary adjustments. This make adjusting the pre-load much less of a balancing act, leading to quicker and easier installation.
Optional Radial Bearings
Made from T6 6061 Aluminum using the best Koyo Japan bearings our Radial Bearing upper perch (McPherson applications only) allows the springs to twist freely as they are compressed. As a spring compresses it may twist slightly which can produce a small noise as if the springs are binding. The same noise also occurs on McPherson applications when the wheel is turned and the spring binds. Radial bearing upper perches will allow the piston shaft and top hat to rotate separately from the spring and shock body allowing for a smoother and quieter rotation.
Rear Adjustment Extenders
Certain vehicles require some interior panels to be removed in order to reach the dampening adjusters. The dampening adjuster extensions can be used to relocate the adjustment knob to a easily reachable location for those quick on the fly adjustments.
