TEIN Street Advance Z Coilovers - 2008-2012 Mazda Atenza Sport 25Z, 25S, 25EX FWD (GH5FS)

Name: TEIN Street Advance Z Coilovers - 2008-2012 Mazda Atenza Sport 25Z, 25S, 25EX FWD (GH5FS)
Brand: TEIN
Price: 830.0 USD
Availability: InStock

$830.00

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Warranty
Important Notes

Description

TEIN Street Advance Z coilovers are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Features

Steel Construction
Twin Tube internal construction
Larger piston diameter for strut type front and rear (22mm)
16-way Damping adjustment with over 200% increase in damping force change.*
Ride Height adjustable via spring seat
Powder coated damper body
Non-welded ZT coated Adjustment Tube
Full-Length Dust Boots
1-piece Aluminum Spring Seat with Delrin Thrust Washer
Available for Overhaul
1-year Manufacturers Defect Warranty

*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

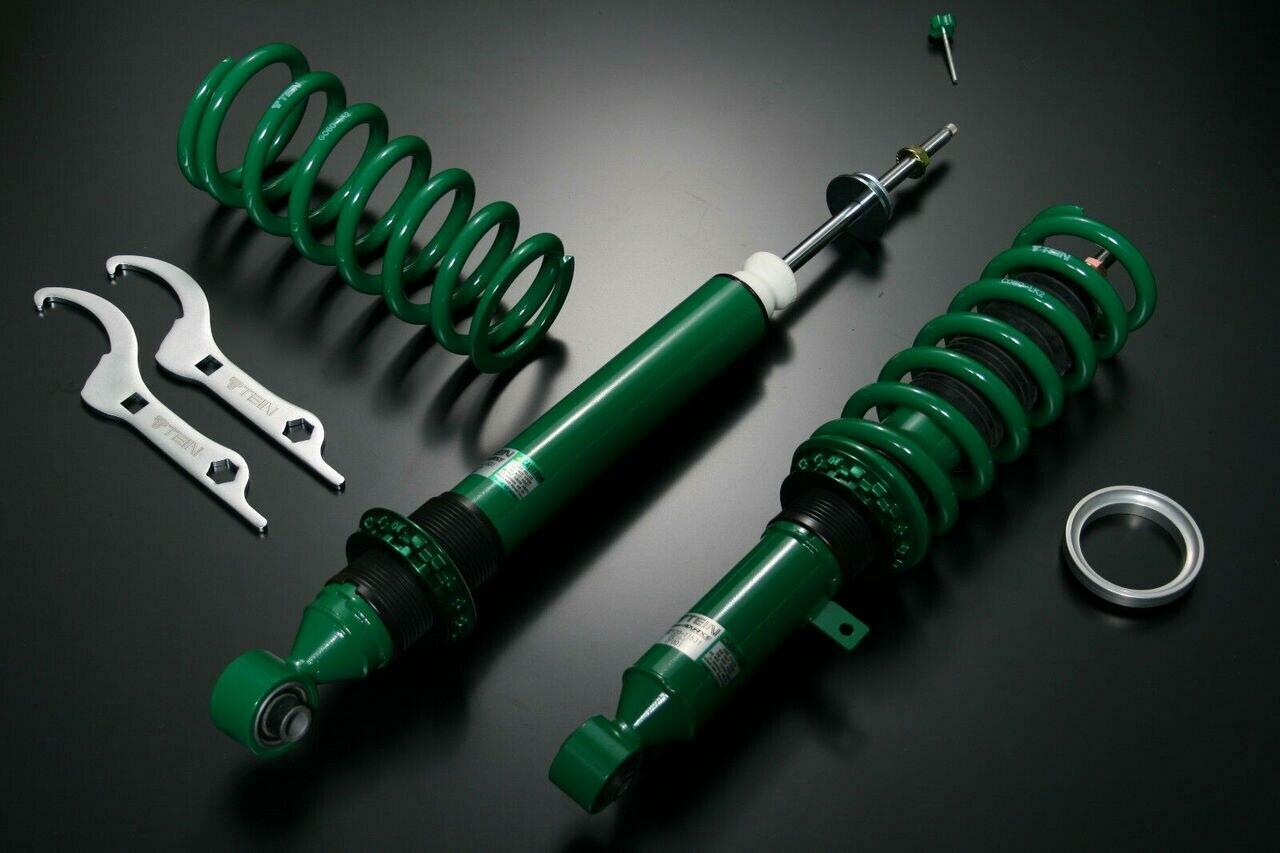

Contents of Damper Kit

4 TEIN Coilover Shocks
4 TEIN Coilover Springs (no sag version)**
4 Rubber Bump Stops
2 Hook Spanners
4 Spring Seats
4 Spring Locks
4 Dust Covers (some kits reuse stock dust covers)***
4 Delrin Thrust Washers
1 TEIN Sticker Sheet****
1 Instruction Manual

**Some applications include helper springs
***Some kits will retain use of OEM Dust Covers Spring Seats — 4 Instruction Manual — 1
****(Note that Stickers do not come included for all JDM part numbers and for certain applications)

Specifications

	Front	Rear
Damping Force Adjustment:	Yes	Yes
Ride Height Adjustable:	No	No
Upper Mounts:	OEM	OEM
Spring Rates (Kg/mm):	7.0	5.0
Ride Height Range:	-0.1 to -3.0	-0.5 to -1.7

Vehicle Fitment

Vehicle Region: JPN
Vehicle: Mazda Atenza Sport 25Z, 25S, 25EX
Model Years: 2008-2012
Production Years: 2008.01-2012.11
Chassis: GH5FS
Engine: 2500
Drivetrain: FWD
Notes: -
Part Number: GSM94-91AS2
EDFC Compatible: No

Warranty

TEIN's warranty covers new TEIN products within one year (from date of purchase) when purchased from a TEIN Authorized Dealer (Springrates.com). Warranty claims require the part be sent to TEIN for inspection along with the receipt and the Overhaul Agreement Form.

TEIN Warranty Links

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.
