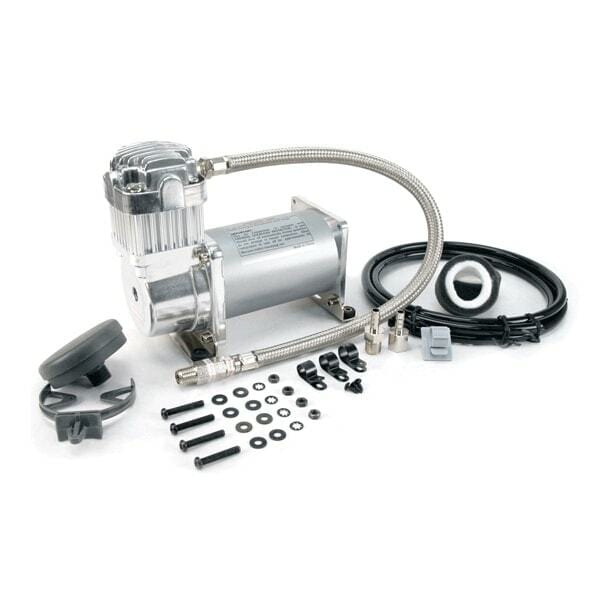

The VIAIR 325C Compressors work with low amp draw. Features include a standard 1/4″ NPT stainless steel braided leader hose with check valve and insulated wiring for simple installation.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Features
- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Specifications
- 12-Volt / 24-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 23 Amps
- Max. 24V Amp Draw: 13 Amps
- 1/4″ NPT Intake Port
- Ingress Protection Rating: IP67
- Dimensions: 8″L x 4″W x 6.75″H
- Net Weight: 7.5 lbs.
Recommended Components
- 2.5 Gallon Tank (P/N 91028)
- 5.0 Gallon Tank (P/N 91050)
- 12V Relay (P/N 93940*)
- 24V Relay (P/N 93943**)
- Pressure Switches (P/N 90100, 90102)
- Pressure Switches with Relay (P/N 90110*, 90111, 90113)
- Sealed Pressure Switches (P/N 90217, 90223, 90227)
- Leader Hose with Check Valve (P/N 92793)
