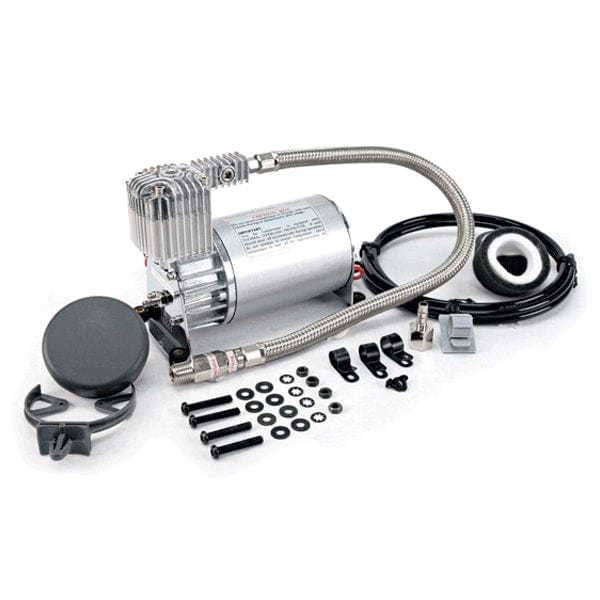

The VIAIR 275C Compressor features include a stainless steel braided leader hose with 1/4” NPT swivel male fitting hose end and rubber isolated mounting feet as well as insulated electric terminals.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Features
- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Specifications
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 25% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 2.5 Gallon
- Max. 12V Amp Draw: 20-Amps
- Ingress Protection Rating: IP54
- Dimensions: 6.5″L x 3.5″W x 4.5″H
- Net Weight: 5.20 lbs.
Additional Info Downloads:
VIAIR Corporation warrants this product to the end-user, when properly installed and under normal conditions of use, to be free from defects in workmanship and materials for a period of one year from the provided date of purchase for the original purchaser of the product. This warranty does not cover abuse, operation in a manner inconsistent with the product’s design, or damage resulting from exposure to the elements. If the defect is considered "under warranty," VIAIR will, at its option, repair or replace the product free of charge to the person who purchased the product.
