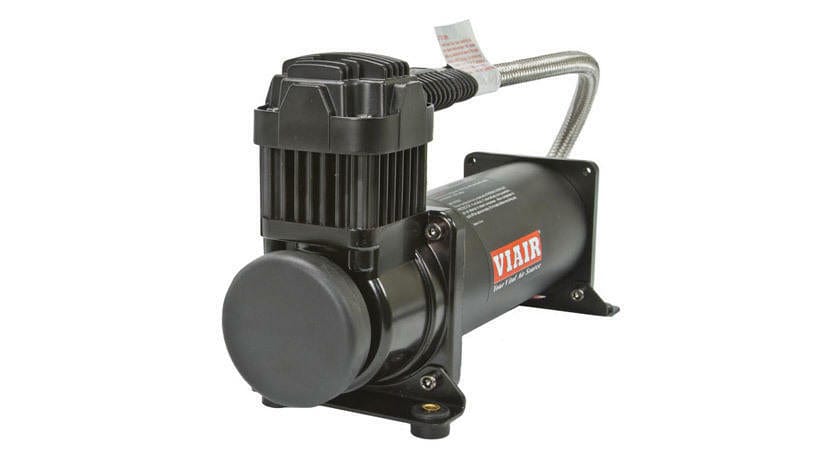

The VIAIR 444C Black Compressor is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 1 min. 35 sec. consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

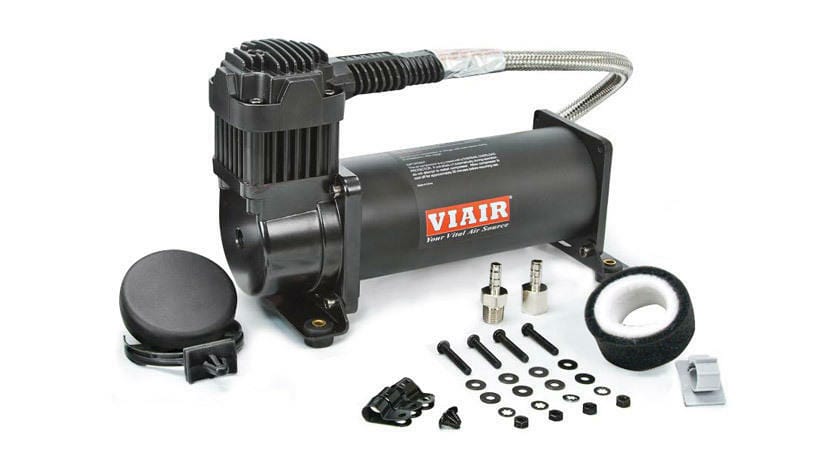

Features
- Thermal Overload Protector

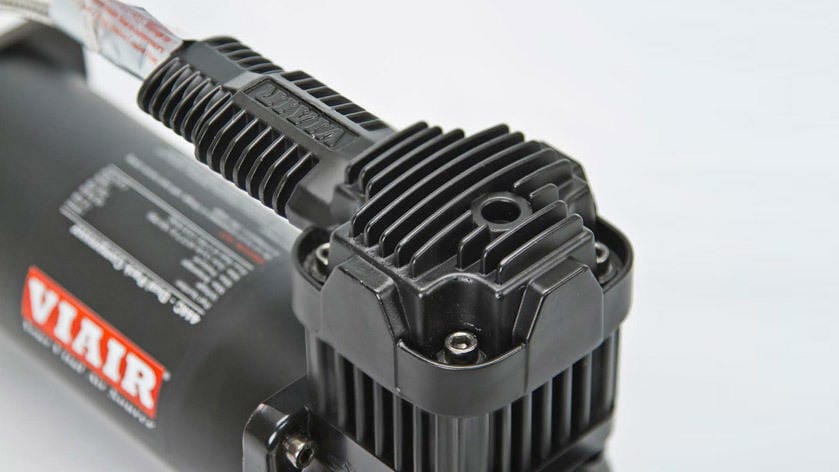

- Intercooler Head (Patents Pending)
- Air Filter Assemblies
- Remote Mount Brackets
- Sets of Remote Mount Fittings
- Sets of Spare Air Filter Elements
- (4) Sets of Nuts, Bolts, Washers and Lock Washers
- Stainless Steel Braided Leader Hoses with Inline Check Valve
Specifications
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Combined Max. Amp Draw: 40 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.87″L x 4.2″W x 7.06″H
