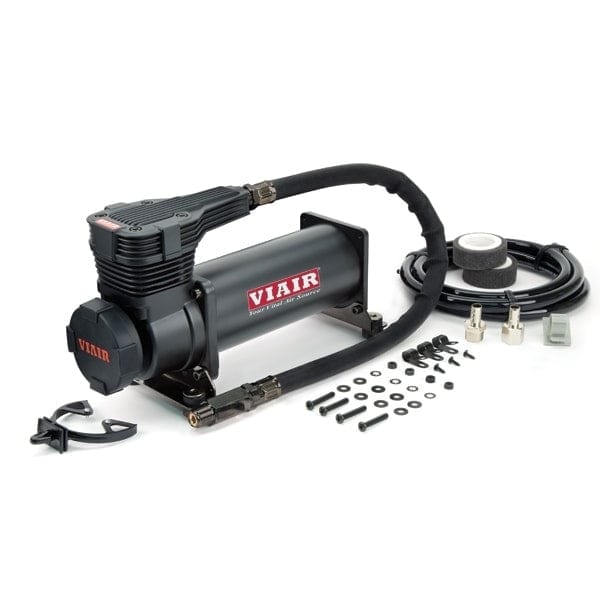

VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.
The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black finishes, and comes equipped with either a stainless steel or a Black sleeved stainless steel leader hose and an inline check valve.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Features
- Thermal Overload Protector
- 485C (Platinum or Stealth Black) Compressor
- Air Filter Assembly
- VIAIR Removable Filter Cover
- Replacement Air Filter Elements
- Remote Mount Filter Assembly
- Leader Hose Clip
- Air Line Clip with Included Hardware
- Mounting Hardware
- Stainless Steel Braided Leader Hose with Inline Check Valve
- Air Line (For Remote Mount Filter Installation)
Specifications
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Combined Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.63″L x 4.1″W x 6.44″H
- Net Weight: 11.10 lbs.
